SAFETY STORAGE CABINETS FOR CHARGING AND STORAGE OF LITHIUM-ION-BATTERIES

BATTERY FIRE - RISKS AND ACTIONS

Most lithium ion batteries are not designed for temperatures above 60°C. As the temperature increases, lithium batteries respond by a build-up of pressure in the cell, escape of flammable gases, cell fire, and even explosive burning of the battery (thermal runaway). These hazards are partly due to shortcomings in the manufacture and proper handling of the storage medium.

Your added advantage with the BATTERY line!

Safety
In case of fire - inside or outside - a thermocouple automatically initiates the uninterrupted closing of the doors.
Tested backdraft protection (smoke gas explosion).
In the event of a fire inside the cabinet, the doors are automatically closed and locked to prevent a backdrafts (smoke gas explosion).
Safe charging
Fuse protected power supply for chargers is provided and ready to plug in.
Alerts via e-mail / SMS
The monitoring of the backdraft function and the temperatures can be done optionally online incl. alerts via e-mail / SMS or via SMS alert with SMS module via 4G LTE-M network.

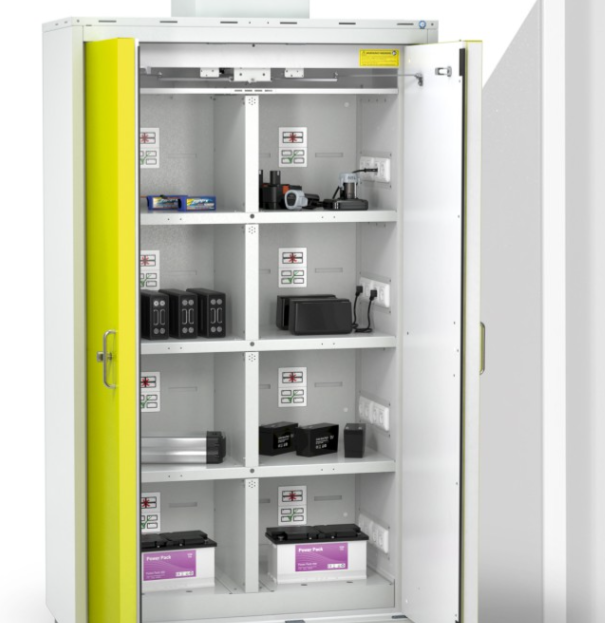

STATION LINE - for charging of batteries

XL (1194x612x2085 mm)
M (594x612x2085 mm)

1 2

STANDARD LINE - for storage of batteries

XL (1194x612x2085 mm)
M (594x612x2085 mm)
B-EASY (601x593x805)

1 3

Details

Interior fittings:

BATTERY standard/station

Thermally insulated storage shelves and bottom trays made of sheet steel
Backdraft closure for internal fires to prevent combustion gas explosions

BATTERY station

Supplied ready to plug in, including fuse box with residual-current circuit breaker - for disconnection from the mains in the event of a malfunction fused with 16 A residual-current circuit breaker, polarity protected plug CEE L+N+PE 6h, max. total power: 3.68 kW
4 sockets per storage area prepared for chargers including fused power supply with circuit breaker 10 A per storage area
On request, a three-phase supply voltage of 400 V ~ 50 Hz for a max. total output of 11.04 kW is possible. and optionally up to 10 sockets per storage level and region-specific plugs.

Colour:

Wing doors in bright green, PANTONE 389 C.
Carcass completely in light grey RAL 7035.
Individual colours possible.
Base in slate grey RAL 7015.

Construction:

Wing doors, powder-coated sheet steel.
The doors are generally right-hinged for one-door cabinets. A left-hung door can be delivered at no extra charge.
Outer carcass, powder-coated sheet steel.
Inner carcass made of high-quality decor panels.

Safety benefits

Double-tested fire protection over 90 minutes
Confirmed classification type 90, i.e.90 minutes fire resistance according to DIN EN 14470-1 or DIN EN 1363-1 - as well as explosive burning of batteries in the interior tested by Fraunhofer Institute.
Tested backdraft protection (smoke gas explosion)
In the event of a fire inside the cabinet, the doors are automatically closed and locked to prevent a backdrafts (smoke gas explosion).
Extinguishing agent-free fire containment
Thermally insulated storage floors and oxygen reduction solved by design prevent fire jumping within the storage level and adjacent fire compartments.
