Düperthal

Battery Station Line - Type 90 - Charging Cabinet

Battery Station Line - Type 90 - Charging Cabinet

Regular price €7.824,00
Regular price €7.514,00 Sale price €7.824,00
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:69-201267-070

Model Size
Storage areas
Version
Quantity
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 8–10 weeks

Warranty: 2 years

By requesting a quote, you will receive model-specific product prices.

The Düperthal BATTERY station is a Type 90 safety storage cabinet for the safe storage and charging of lithium-ion batteries. It is supplied ready to plug in with a fused power supply and sockets for the chargers on every storage level, protected by a residual current circuit breaker that disconnects the power supply in the event of a fault. The interior is divided into thermally separated propagation areas, and the cabinet protects its contents for 90 minutes against fire from outside; the doors close automatically in case of fire and the tested backdraft lock prevents a smoke gas explosion.

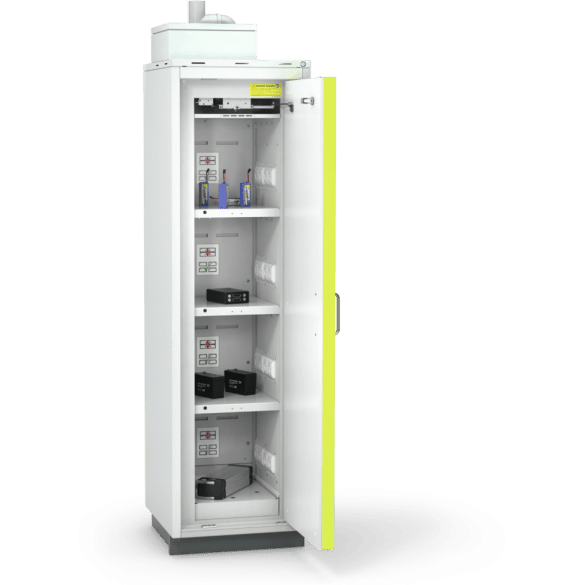

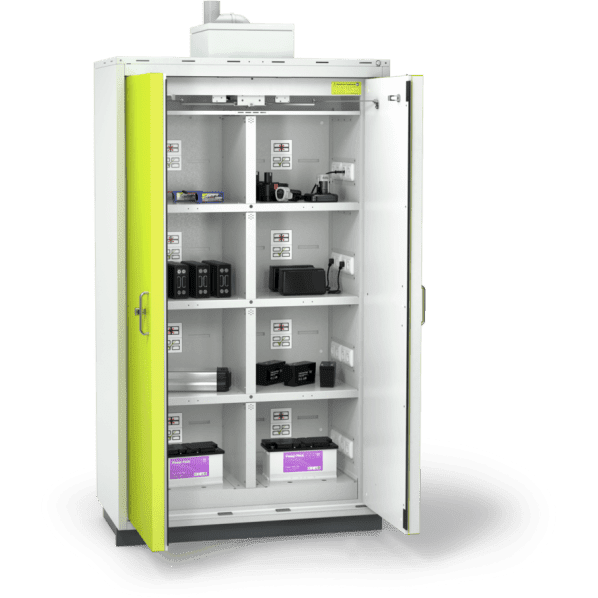

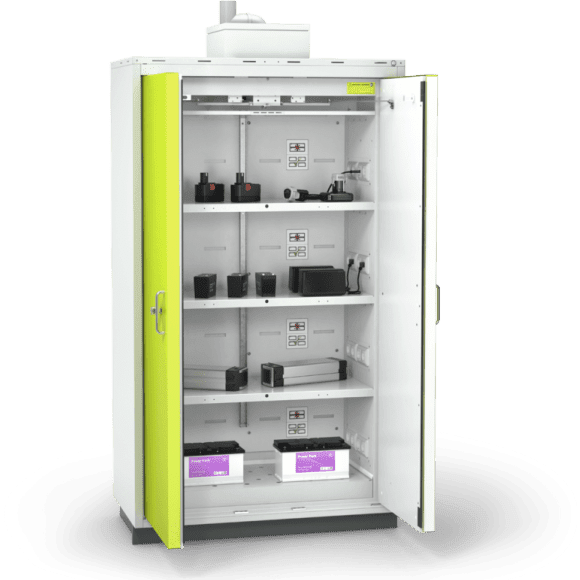

Available as M (594 mm wide, 1 door) and XL (1194 mm wide, 2 doors), XL also with a centre partition wall (8 propagation areas, 32 sockets). For storage without charging, see the BATTERY standard version.

Key highlights:

  • Type 90 fire resistance (DIN EN 14470-1) and propagation protection tested by Fraunhofer ICT
  • Thermally separated propagation areas, 1 kWh energy storage capacity each
  • 4 storage levels, max. 75 kg per storage area / 360 kg in total
  • Automatic door closing and backdraft lock in case of fire
  • Exhaust air and earthing connection on the cabinet roof
  • 16 sockets (XL with centre partition wall 32), 230 V, max. 3.68 kW, CEE plug
  • Tested load adapter included
  • 2-year warranty

Technical data

Product category
Battery storage cabinets
Chamber volume
M: 0.43 m³ / XL: 0.95 m³
Max. single container volume
M: 10 l / XL: 30 l
Collection (sump) volume
M: 11 l / XL: 33 l
Max. load per storage level
75 kg per storage area
Fire resistance
Type 90 – 90 minutes fire resistance, tested to DIN EN 14470-1
Recommended airflow
M: 4.3 m³/h / XL: 9.5 m³/h (10-fold air exchange, <1 Pa inside cabinet)
Maximum load
360 kg
External dimensions (W × D × H)
M: 612 x 594 x 2091 mm / XL: 612 x 1194 x 2091 mm (D x W x H)
External width
1194 mm
External depth
612 mm
External height
2091 mm
Weight
320 kg
Standards
DIN EN 14470-1 (Type 90); DIN EN 16121/16122; CE conformity; propagation test by Fraunhofer ICT (lithium-ion cells up to 54 Ah); DIN EN IEC 61439-2 (electrical installation)
View full details

Düperthal

Battery Station Line - Type 90 - Charging Cabinet

By requesting a quote, you will receive model-specific product prices. The Düperthal BATTERY station is a Type 90 safety storage cabinet for the safe storage and charging of lithium-ion batteries. It is supplied ready to plug in with a fused power supply and sockets for the chargers on every storage level, protected by a residual current circuit breaker that disconnects...
  • Chamber volumeM: 0.43 m³ / XL: 0.95 m³
  • Warranty2 years
Request a quote
Battery Station Line - Type 90 - Charging Cabinet Düperthal

All features

  • Models: Düperthal BATTERY station M (69-200667-070), XL (69-201267-070), XL with centre partition wall (69-201267-072)
  • Application: safe storage and charging of lithium-ion batteries
  • Fire resistance: Type 90 – 90 minutes, tested to DIN EN 14470-1; DIN EN 16121/16122
  • Propagation protection: interior divided into thermally separated propagation areas; tested with cylindrical (18650, 21700, up to 5 Ah) and prismatic lithium-ion cells up to 54 Ah – study by Fraunhofer ICT
  • Energy storage capacity: 1 kWh per propagation area: 4 kWh per cabinet (4 propagation areas), XL with centre partition wall 8 kWh (8 propagation areas)
  • Storage: 4 storage levels (setting height approx. 378 mm), max. 75 kg per storage area, max. 360 kg in total
  • Bottom tray: fixed sheet-steel bottom tray with perforated sheet insert; collection volume M 11 l / XL 33 l
  • Fire safety: thermocouple closes the doors automatically in case of fire inside or outside; tested backdraft lock (smoke gas explosion) after an inside fire
  • Doors: M: 1 wing door (hinge right), XL: 2 wing doors; classical door operation, bow handle, cylinder lock with 2-point locking
  • Connections: exhaust air connection and earthing connection on the cabinet roof
  • Ventilation: recommended air flow (10-fold air exchange): M 4.3 m³/h, XL 9.5 m³/h; pressure drop <1 Pa
  • Colours: body RAL 7035, doors PANTONE 389 C, base RAL 7015, inner lining decor panels RAL 7035
  • Noise emission: door closing noise < 70 dB(A)
  • Charging: fused power supply ready to plug in: 16 sockets type F (CEE 7/3) per cabinet, XL with centre partition wall 32 sockets
  • Power supply: 230 V / 50 Hz, max. output power 3.68 kW; CEE 16 A L+N+PE 6h plug (blue), approx. 3 m cable; residual current circuit breaker; IEC 61439
  • Load adapter: tested load adapter included
  • Base: set-back base
  • Dimensions (D x W x H): M: 612 x 594 x 2091 mm, XL: 612 x 1194 x 2091 mm
  • Weight: approx. M 320 kg, XL 530 kg, XL with centre partition wall 550 kg

Specifications

Product categoryBattery storage cabinets
Chamber volumeM: 0.43 m³ / XL: 0.95 m³
Max. single container volumeM: 10 l / XL: 30 l
Collection (sump) volumeM: 11 l / XL: 33 l
Max. load per storage level75 kg per storage area
Fire resistanceType 90 – 90 minutes fire resistance, tested to DIN EN 14470-1
Recommended airflowM: 4.3 m³/h / XL: 9.5 m³/h (10-fold air exchange, <1 Pa inside cabinet)
Maximum load360 kg
External dimensions (W × D × H)M: 612 x 594 x 2091 mm / XL: 612 x 1194 x 2091 mm (D x W x H)
External width1194 mm
External depth612 mm
External height2091 mm
See all specifications
Weight320 kg
StandardsDIN EN 14470-1 (Type 90); DIN EN 16121/16122; CE conformity; propagation test by Fraunhofer ICT (lithium-ion cells up to 54 Ah); DIN EN IEC 61439-2 (electrical installation)
