Electrically operated front window
Electrically movable front glass, positioned at an angle to the worktop with edge position monitoring and automatic stopping function at the optimum height above the worktop in the working position.
Electronically commutated fans
Two high-quality electronically commutated fans from ebm papst in a V-shape (Zephyro System) to guarantee ideal laminar distribution as well as low current consumption and low noise emissions. Two temperature-compensated airflow sensors, one for laminar flow and one for protective curtain measurement.
Integrated connections
Connections such as flammable gas, inert gas and electrical supply are located at the top of the chamber, so there are no wires protruding beyond the chamber’s contour. Biotectum chambers can be moved closer to furniture or walls.
High-quality connections
Internal utility installations with valves from the Italian company TOFF, 230 V sockets without Berker screw elements.

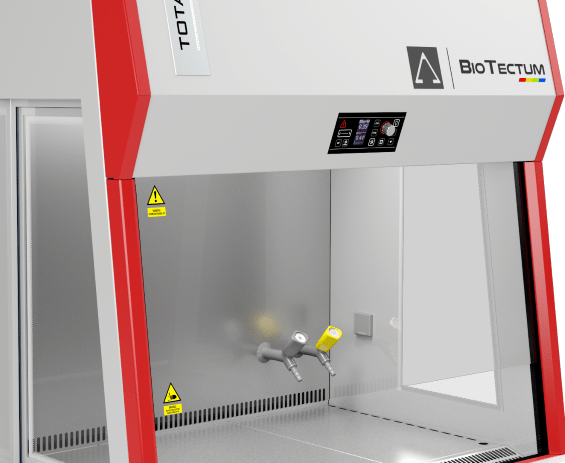

Intuitive control
The CLASSIC panel, with its dedicated function keys and membrane keypad, is a robust element for managing the operation of the laminating chamber. The TURN&TOUCH knob enables precise and intuitive navigation through the menu of available functions. The numerical values of the flows are displayed and easy to read from both a sitting and standing position.
Stainless steel worktop
Worktop made of AISI 316L stainless steel, solid or asymmetrically divided.

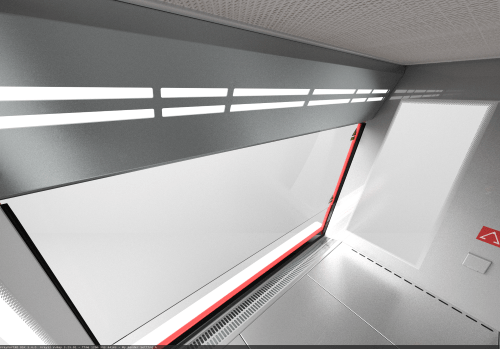

LED information bar
Light bar with LED technology, visual indication of the operating status of the unit.
Seamless stainless steel AISI 316L
The interior of the work area is made entirely of AISI 316L grade stainless steel in a seamless design with rounded sides to minimise the number of surfaces posing a risk of contamination.

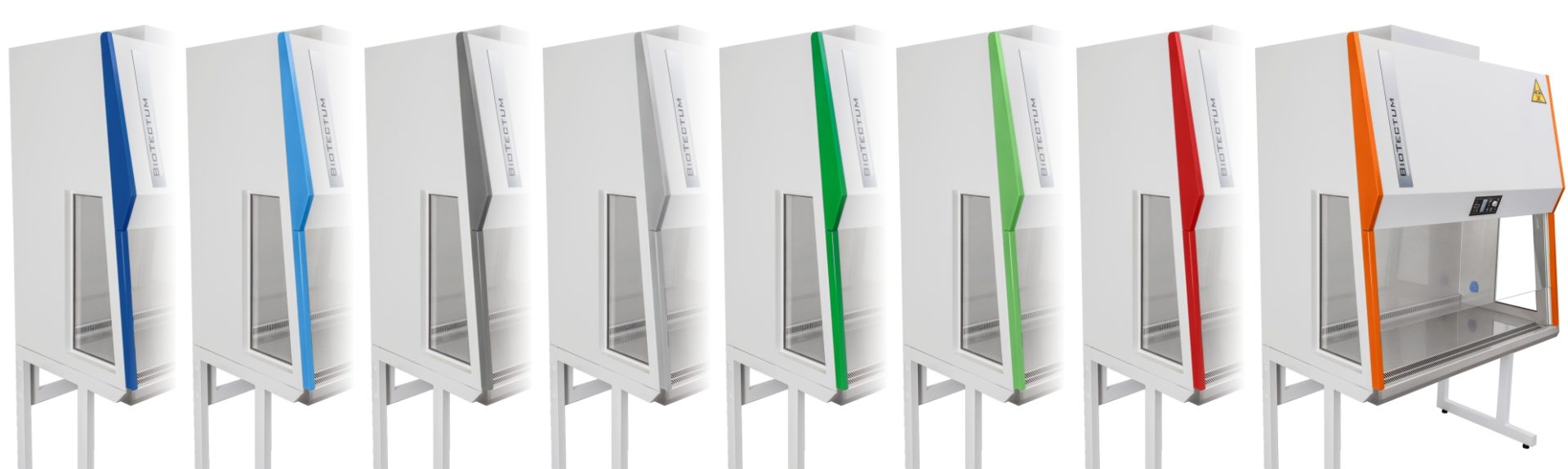

Colour options
Personalisation of the colour of stylistic elements. RAL 2002 Vermilion standard.

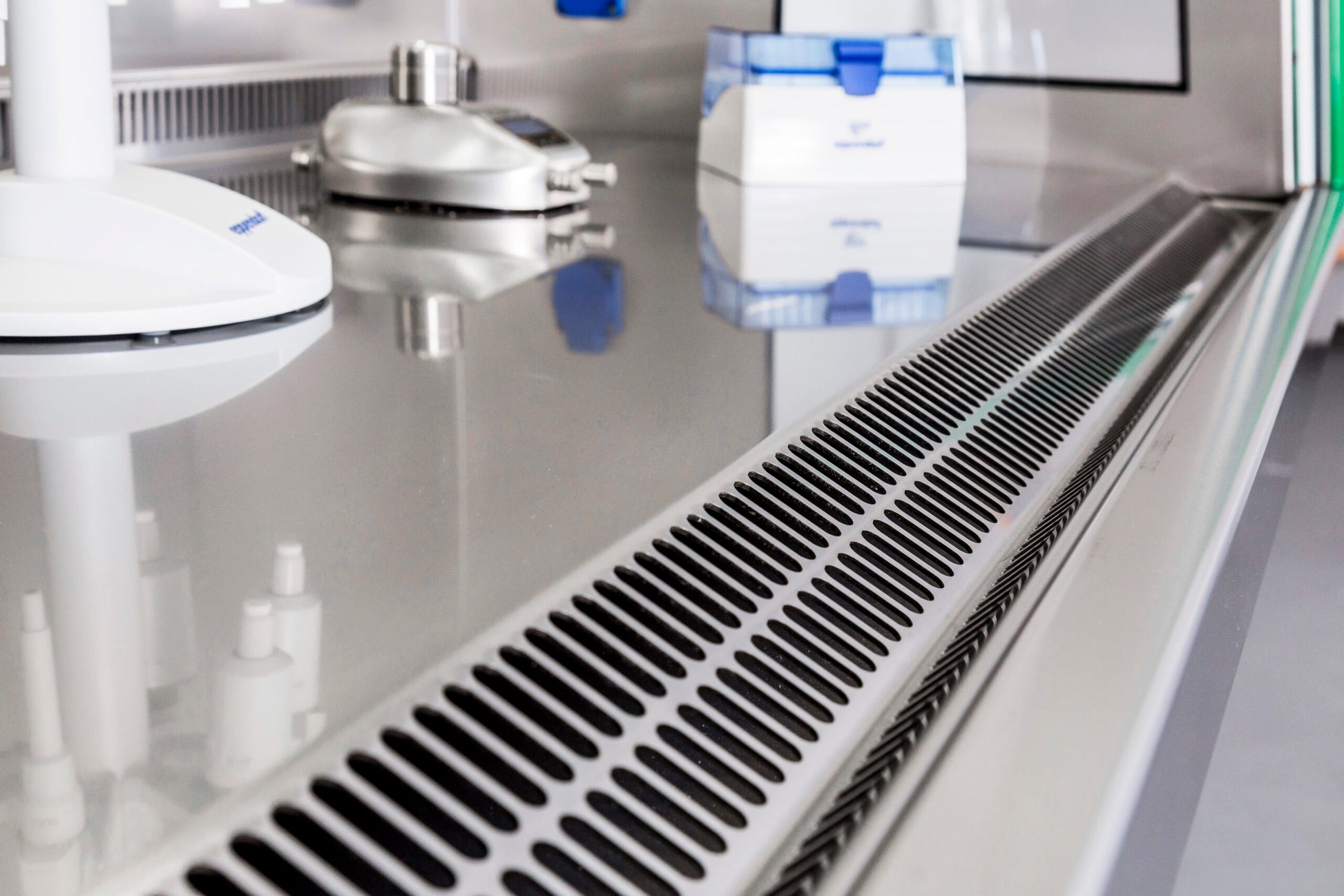

V-shaped air intake
V shaped air intake on the air curtain which eliminates the requirement for additional armrests.
Stainless steel bowl
AISI 304 acid-resistant stainless steel bowl with optional electrostatic bacteriostatic coating.
Emergency power supply
Autoprotect – the connection of the chamber to the UPS emergency power supply and the corresponding software allows further operation of the chamber and gives the necessary time to properly protect the test material. In a fraction of a second, it cuts off the power supply to electrical sockets and electro-valves while maintaining the correct safe operating conditions of the chamber.
Diagnostic connector
Diagnostic connector for connection of an optional module for remote verification of chamber operating parameters by an authorised service centre or manufacturer via GSM or wifi.
Easy glass cleaning
The construction of the chambers has been designed to allow easy cleaning of the front glass enclosing the work area on both sides.
Control Panel
PANEL CLASSIC TEC TURN&TOUCH
Equipped with a membrane keypad with dedicated function keys, it provides a solid element for managing the operation of the laminar chamber. The Turn&Touch knob precisely and intuitively navigates the menu of available functions. Chamber status values such as flow rates, temperatures and others, among others, are displayed and easy to read from both sitting and standing positions.
Control Panel

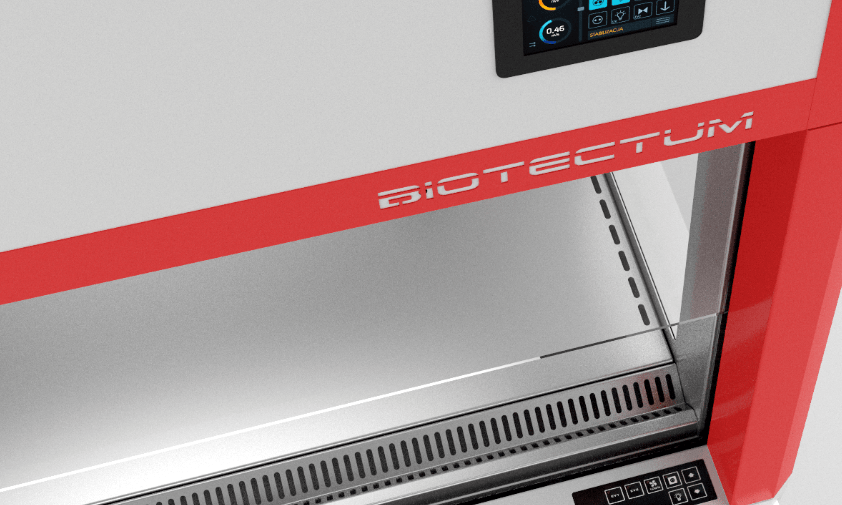

TEC TOUCH PANEL
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
Cleaning
TEC CLEAN for your safety.
The design of chambers allows for easy cleaning of the front glass enclosing the area on both sides work area. In order to
be able to wash the inner part of the glass you need to:
- Start the CLEAN program on the control panel - which will
automatically lift the glass. - Lift the front cover along with the glass. To facilitate the process of lifting the cover is assisted by gas cylinders
Technical specification
EQUIPMENTS
