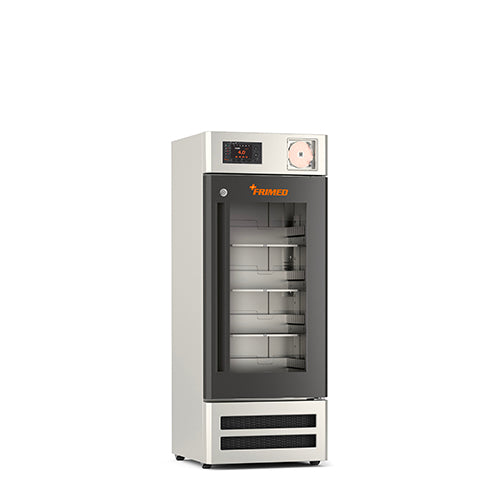

Blood Bank Refrigerator FS20E - 128 bags

Blood Bank Refrigerator FS20E - 128 bags

€3.003,00 EUR
€3.003,00 EUR €3.003,00 EUR
Sale Sold out
Shipping calculated at checkout.

FS20E-LGK2

Estimated delivery time: 4-6 weeks

Warranty: 2 years

FS20E Model

FS20EL225PVS - Digital control panel LGK-2

FS20EA425PVS - Full touch control panel TP-1

Structure

External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure.

Insulation

60 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving

Door

Self-closing glass door (double insulating - low emissivity glass) with folding magnetic gasket on four sides for perfect closing. Right hand opening or left hand on request. Lock with key.

Light

LED light (energy saving up to 70%) with automatic switch at door opening. Manual switch on control panel.

Drawers

4 scotch-brite stainless steel drawers with telescopic ball-bearing slides and plexiglas frontal side. Optional plexiglas internal dividers.

Temperature range

Setting between +3°C and +5°C. Factory preset to +4°C. Digital adjustable with an increment of 0.1°C.

Refrigeration system

Completely sealed, silent and highly efficient hermetic compressor and ventilated air condenser (suitable also for tropical countries). Internal ventilated evaporator. Forced-air cooling system conceived to achieve maximum temperature uniformity and stability inside the refrigerator even in case of frequent door openings. Evaporator fan shuts off during door openings. CFC/HCFC-free R290 refrigerant gas for European countries.

Defrosting

Fully automatic defrosting cycle and auto-evaporation of condensed water.

Capacity

200 litres - 128 bags (450ml/each)

Voltage

230V/50 Hz

Absorption

155 Watt

Gas

CFC/HCFC-free R290 refrigerant gas.

Control panel and alarms

Microprocessor control panel. Display with 0.1°C resolution. Temperature monitoring detected by independent probes. Real time temperature graph (touch screen version). Digital calibration of probes. Visual and audible alarms of high and low temperature (by means of independent probe), open door, condenser efficiency, damaged probes, power failure with recording of data and alarms (by means of back-up battery), damaged or flat battery. Memory of latest alarms visible on display.

Data logger

To record temperatures and alarms. Download data on USB pen drive.

Back-up battery

Self-powered back-up battery (LGK-2 version) or rechargeable batteries (TP-1 Full touch version)to supply electric power to control panel in order to generate alarms in case of power failure.

Temperature chart recorder (optional)

Weekly temperature recording system working with 1,5V battery. It is equipped with 52 paper disks and an ink pen.

Standard

  • 4 scotch-brite stainless steel drawers
  • Four one way wheels with stabilizing adjustable feet
  • Lock with key
  • Power cord with Schüko type plug
  • Protection fuses (on power switch and electronic mainboard)
  • RFI filter
  • Password protected power switch and settings
  • Electronic control panel with alarm system
  • Back-up battery
  • Remote contact (dry, volt-free) for alarm
  • Data logger with USB port to download readings and data
  • Memory of latest alarms visible on screen

Optional accessories

  • Kit of internal plexiglass dividers for drawers
  • Weekly temperature chart recorder
  • Castors with two frontal brakes
  • Test hole (Ø 25 mm) for external user sensor

External dimensions and unit net weight

600x600x1560 (wxdxh-mm)-kg. 107

Dimensions of packaging and shipping weight

Carton box on pallet: 700x700x1770 (wxdxh-mm)-kg. 119

Wooden crate (option on request): 790x760x1960 (wxdxh-mm)-kg. 157

Equipment in accordance with:

(EU) Regulation 2017/745 (MDR)

BROCHURES

Frimed FS20E datasheet

Frimed LGK2 controller datasheet

Frimed TP-1 controller datasheet

View full details

Options and accessories for Blood Bank Refrigerator

LGK-2 Digital

Microprocessor control panel with easy-to-read digital display showing inside menu, temperature, set point, date and hour, model of appliance.

Advantages of the LGK-2 Digital

Equipment settings and switching off only by means of password.

Continous temperature monitoring with set point and alarms shown on display.

Visual and acoustic alarms through buzzer sound, general alarm warning light, specific alarm warning light and icon on display.
Alarms included: high and low temperature (adjustable threshold), open door, condenser efficiency, damaged probes, power failure, run-down battery.

Back up battery(optional) to show temperature on display and generate alarms in case of power failure.

Remote contact to connect the appliance to an external alarm.

GSM module (optional) to send SMS alarm messages showing date, time, cabinet temperature and type of alarm. Possibility to send SMS message to check correct functioning of cabinet.

LAN port (optional) to connect one or more appliances via ethernet on PC for monitoring correct functioning.

USB port to download temperature data and alarms or to reset the appliance.

Data Loggerto record temperatures of last 30 days. Download data on USB pen drive.

Memory for last 20 alarms shown on display.

TP-1 Full Touch

Microprocessor control system equipped with:

• Display (Capacitive) Touch Screen True Color 4,3” or 7” (optional)

• USB port to downloading temperature data and alarms; software updates

• LAN network connection (wireless)

• WiFi 802.11n/g• RS485 serial port between display and control board

Advantages of the TP-1 Full Touch

The devices of this series are equipped with special functions for the optimization of defrosts and with functions that can be used to obtain energy saving of the unit.

There are 3 inputs for NTC temperature probes (evaporator, condenser, temperature internal chamber), and an input for PT100 probe dedicated to monitoring the internal temperature.

The system architecture is one I / O control card (controller card) and one interface card (4.3 “TFT display card with capacitive touch screen).

The communication between the two boards takes place through an RS485 serial; the Controller board powers the Display board in low voltage (12V).

WIFI MODULE

The wifi module is already included in the standard interface card (display) for possible connection to the cloud [optional with license]

PASSWORD

IThe system is password protected at different levels:• operator [normal user]• control [control user]• service [service user]• factory [factory user]

Passwords (except the factory one, not accessible) can be customized to avoid improper use of the system.

Videographic display of temperature trends, historical alarms that can be consulted directly on the display.

ALARMS

The controller has an internal buzzer for acoustic signaling of alarms, a dry contact relay for remote alarm connection.

Acoustic-visual signaling (with red triangle alarm symbol) of the alarms, even in the power failure if equipped with a back up battery (optional), easy to understand thanks to a detailed list with the meaning of the alarm generated, including:

• High - low temperature
• Dirty condenser
• No power supply – power failure (if with battery as option)
• Open door
• Sensor failure
• Low battery charge (option)
• Communication alarm

Password protected switching on and off controller to avoid deactivation of the fridge by unauthorized personnel

DATA LOGGER

Electronic recording system of temperature and alarm data, with large memory, downloadable on USB key. Sampling interval of 30sec or greater.

CLOUD system (as option)

Connecting and remotely controlling the instrument will no longer be a problem.

The electronic system has an integrated WIFI connection module.

ConnectInFri - cloud system -Available on TP-1 FULL control panel

To correctly store medicines, vaccines, blood and general biological material, a “simple” refrigerator is not enough.

Today, more than ever, the optimal storage of biological material, medicines, and so on, has not only an economic but also a social value.

ConnectInFri, is a specifically created cloud to connect and control your refrigerator or freezer remotely, with access via your mobile phone, tablet or computer.

With secure password-protected access to the ConnectInFri platform, you can remotely view and access your refrigerator’s control panel where you can view the parameters and change them if necessary.

ConnectInFri features:

1. VNC (Virtual Network Computing) remote control:

this is the software application to access/control your refrigerator, thus allowing you to control the unit and use it as if you were standing right in front of it.
This aspect, which is unique in this field of application (Medical Refrigeration), has several extremely ignificant advantages in terms of efficiency, stored product control and cost savings, namely:
a- Possibility for the Service (or whoever is in charge of technical assistance) to control the machine without the end user having to intervene in any way to analyse the situation and reach a diagnosis of the possible problem without physically intervening on site.
b- Possibility to interact with the end user (e.g., co-worker/employee) without being physically present, in the event of functional or purely instructional problems.

2.Data Backup

A backup of the unit’s data has been implemented in the web clouding infrastructure. Naturally, it will always be possible to download such data directly from the unit itself, via the USB port on the display (circular queue of about 12 months), but it will also be possible to download and save such data within the portal itself (for 10 years).

3. Automatic report sending

You can choose to automatically send an e-mail with the daily/weekly/monthly pdf report of the unit’s temperature/alarm data, to an e-mail address set by the user

Through using ConnectInFri, the person in charge of the laboratory, technical department, etc., will be able to: - View the operating progress of their equipment
- Remotely change the temperature
- Manage alarms
- Manage scheduled maintenance by means of programmable memos
- Analyse energy consumption
- Store data records in folders and print them out by selecting the desired period

ConnectInFri security

Communications are made through secure authentication.

All information (values, alarms, generator data) is stored in a secure, non-public database.

Passwords are irreversibly encrypted so that no one but the user can know the credentials.

The cloud guarantees the use of the most up-to-date security standards and is 100% compliant

with the GDPR (General Data Protection Regulation).
