ATEX Laboratory Refrigerators

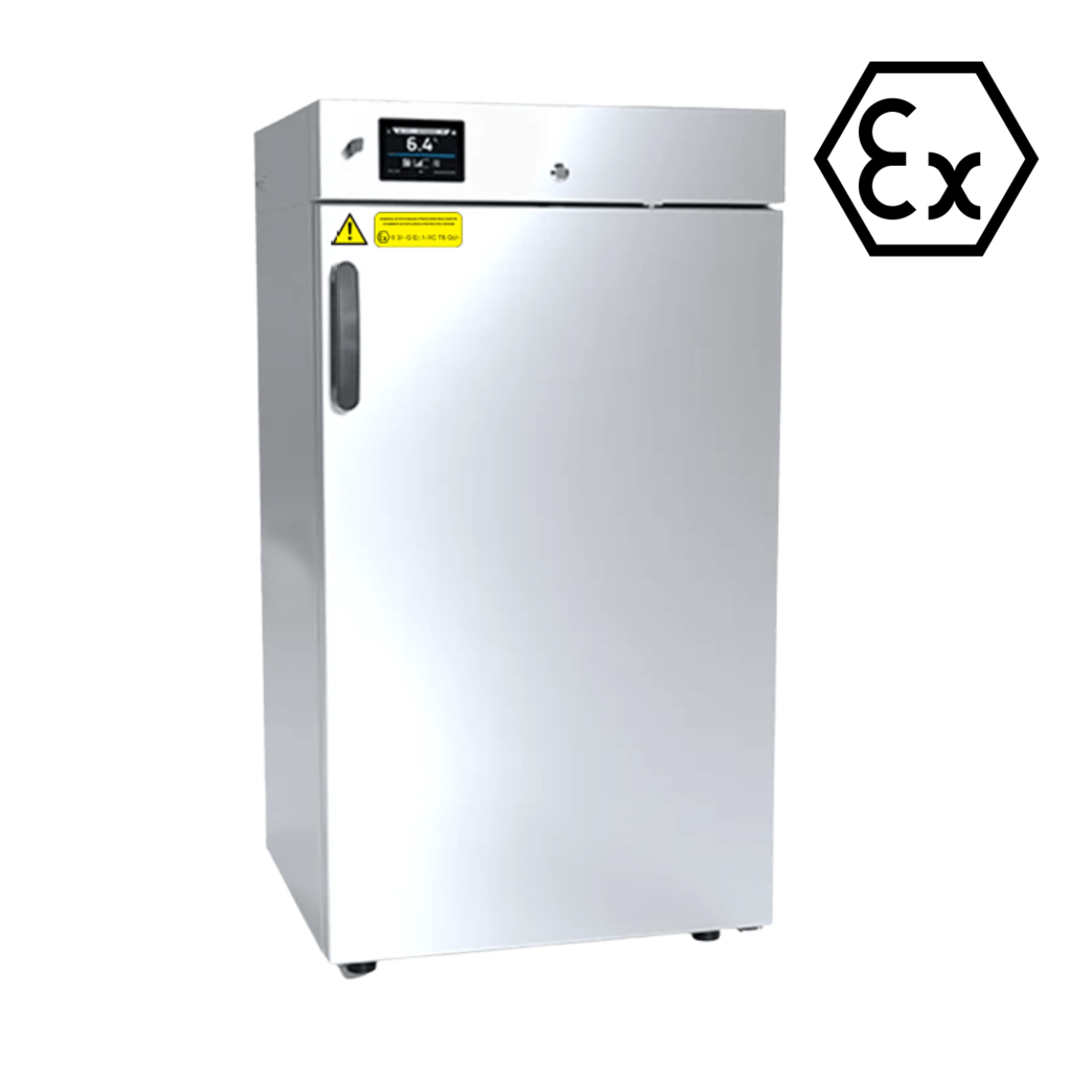

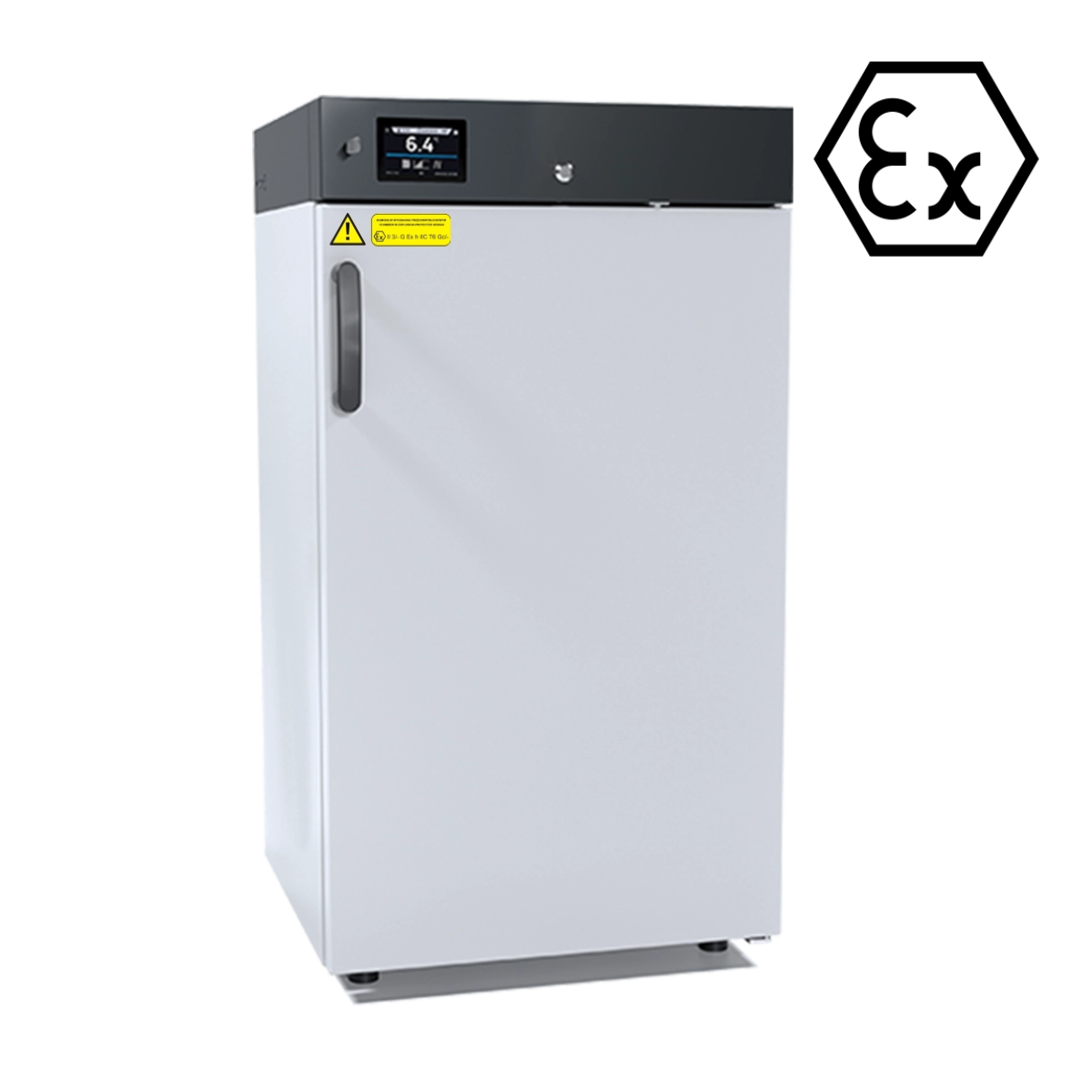

CHL ATEX (Ex) Laboratory refrigerators are safe storage of products that may create an explosive atmosphere.
Chamber in explosion-protected design ATEX II 3/- G Ex h IIC T6 Gc/- (according to ATEX Directive 2014/34/EU)
Pol-Eko

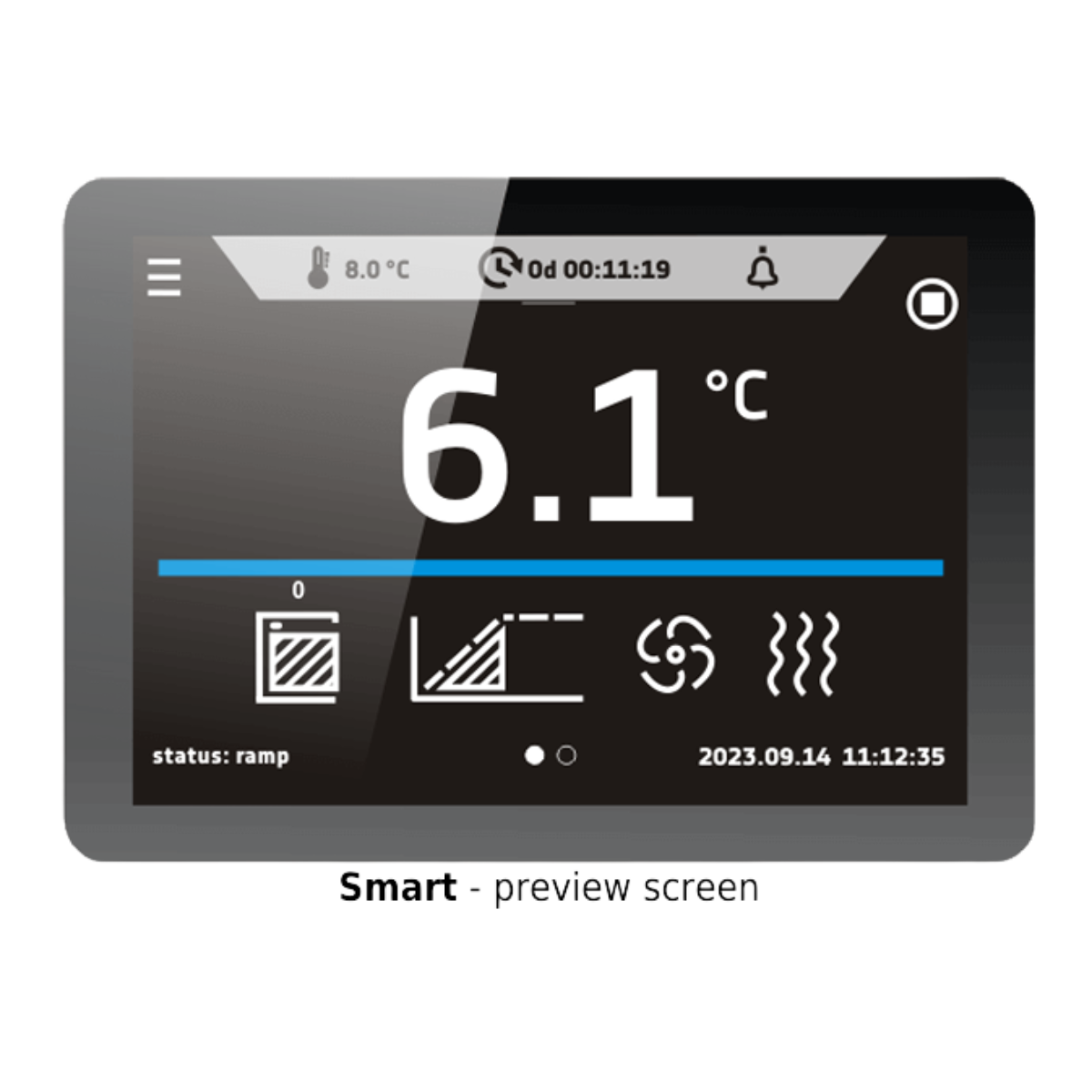

SMART controller
SMART – controller which will be a direct successor of the BASIC and STD (standard) controllers, currently found in the ST cooled incubators, CHL laboratory refrigerators, ZL laboratory freezers, ZLN-UT ultra-low freezers, as well as the IL cooled incubators, CL laboratory incubators,SL drying ovens and SR laboratory sterilizers.
Read more: SMART
ADVANCES OF THE SMART CONTROLLER
- 4,3", clear, full colour touch screen
- USB and LAN ports for data transfer
- multi-segment time and temperature programs
- loop function up to 255 times or endless
- adjustable start delay feature
- adjustable ramps
- recording of min, average and max temperature value for each segment
- overview of set and current parameters while operating
- operating in temperature or time priority mode
- fan speed control in the range of 0 … 100% or 10% … 100% (depending on the chamber capacity) except ST/CHL/ZL/ILP
- temperature sensor fail alarm
- possibility of temperature calibration by the User
- power failure control system (program continued after restoring power)
- visual and sound alarm
- internal memory for programs and data storage
- operating with gloves on
- event registry
- user manual for direct download
- ability to buy a license for LabDesk software
- Quick change of program parameters
- Alarm Bar
KEY SAFETY FEATURES (ATEX label)
II: device intended for all explosion-hazardous areas except underground mines (Group II)
3/-: category applies only to the interior of the refrigerator chamber, meeting category 3 requirements for zone 2 explosive atmospheres.
“/-” means that the device’s exterior is not intended for operation in explosive hazard zones.
G: type of explosive atmosphere – gas
Ex: explosion-proof design, in accordance with ATEX Directive (2014/34/EU) and relevant standards
h: non-electrical device, the interior of the refrigerator chamber is protected by constructional safety “c” in accordance with EN ISO 80079-36
IIC: gas explosion group, device approved for operation in the presence of highly explosive gases such as hydrogen or acetylene
T6: device temperature class – the interior of the cooling chamber is safe for substances with an auto-ignition temperature of at least 85 °C
Gc/-: Protection level of the device chamber (EPL Gc) according to the Ignition Hazard Assessment. Ensures safe operation of the chamber interior in a zone 2 gas explosive atmosphere. The symbol “/-” means that the exterior of the device has no assigned EPL and is not intended for use in Ex zones.
Operating Range and Precision:
CHL ATEX laboratory refrigerators with explosion-proof chambers feature a cooling system with forced air circulation, ensuring stable and uniform conditions inside the chamber. They allow sample storage within a temperature range of 0 °C to +15 °C. The device is controlled by a precise SMART controller, guaranteeing high stability and uniformity of the set temperature.
The CHL ATEX (Ex) laboratory refrigerator with an explosion-proof chamber is a reliable and safe solution for storing samples that may create an explosive atmosphere.
