Pol-Eko

Climatic Chamber KKP 240

Climatic Chamber KKP 240

€11.870,00 VAT 0%
€11.870,00 €11.870,00 VAT 0%
Sale Sold out
Shipping calculated at checkout.

05-1080-3380-0000001

Estimated delivery time: 4-6 weeks

Warranty: 2 years

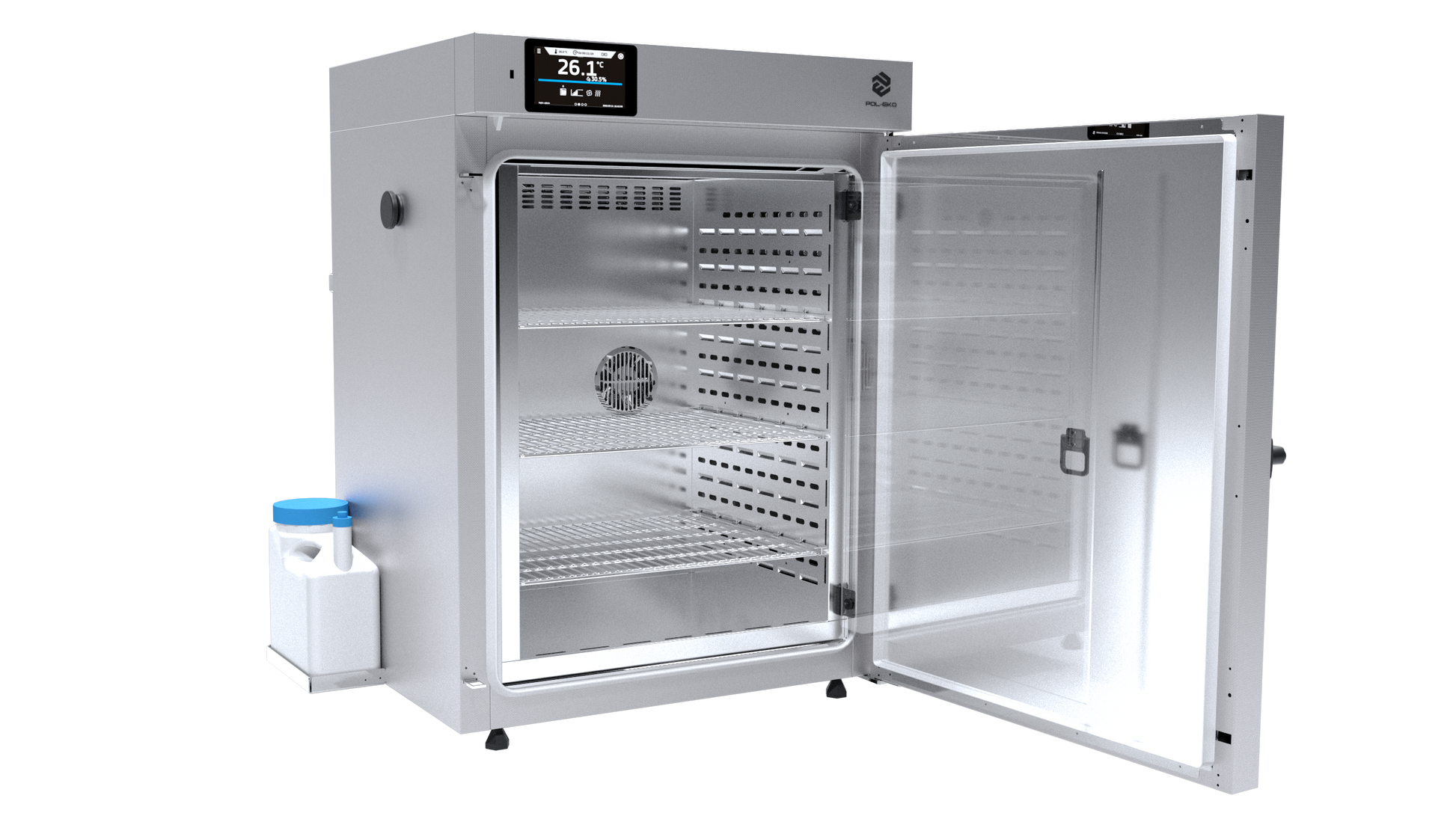

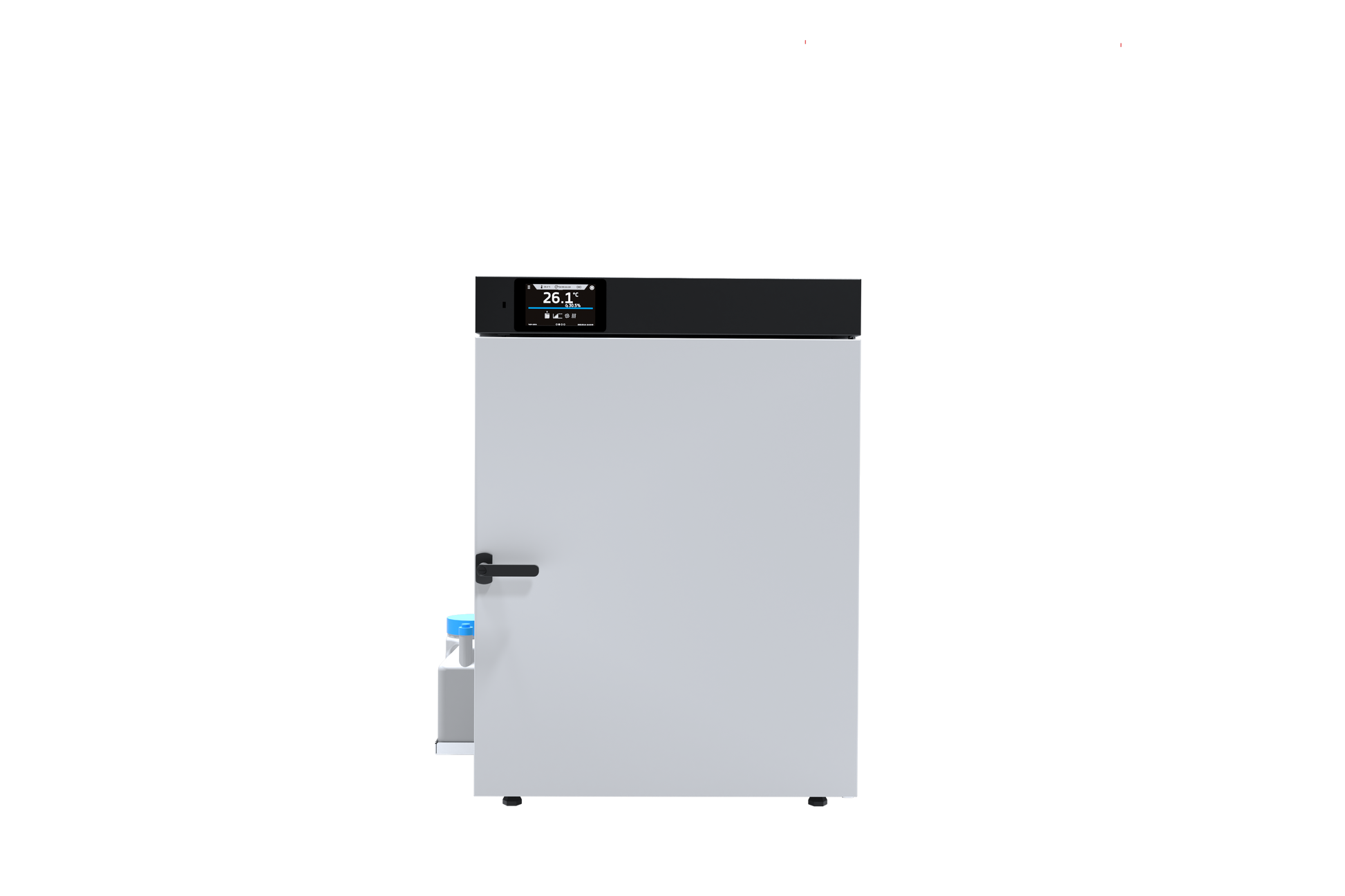

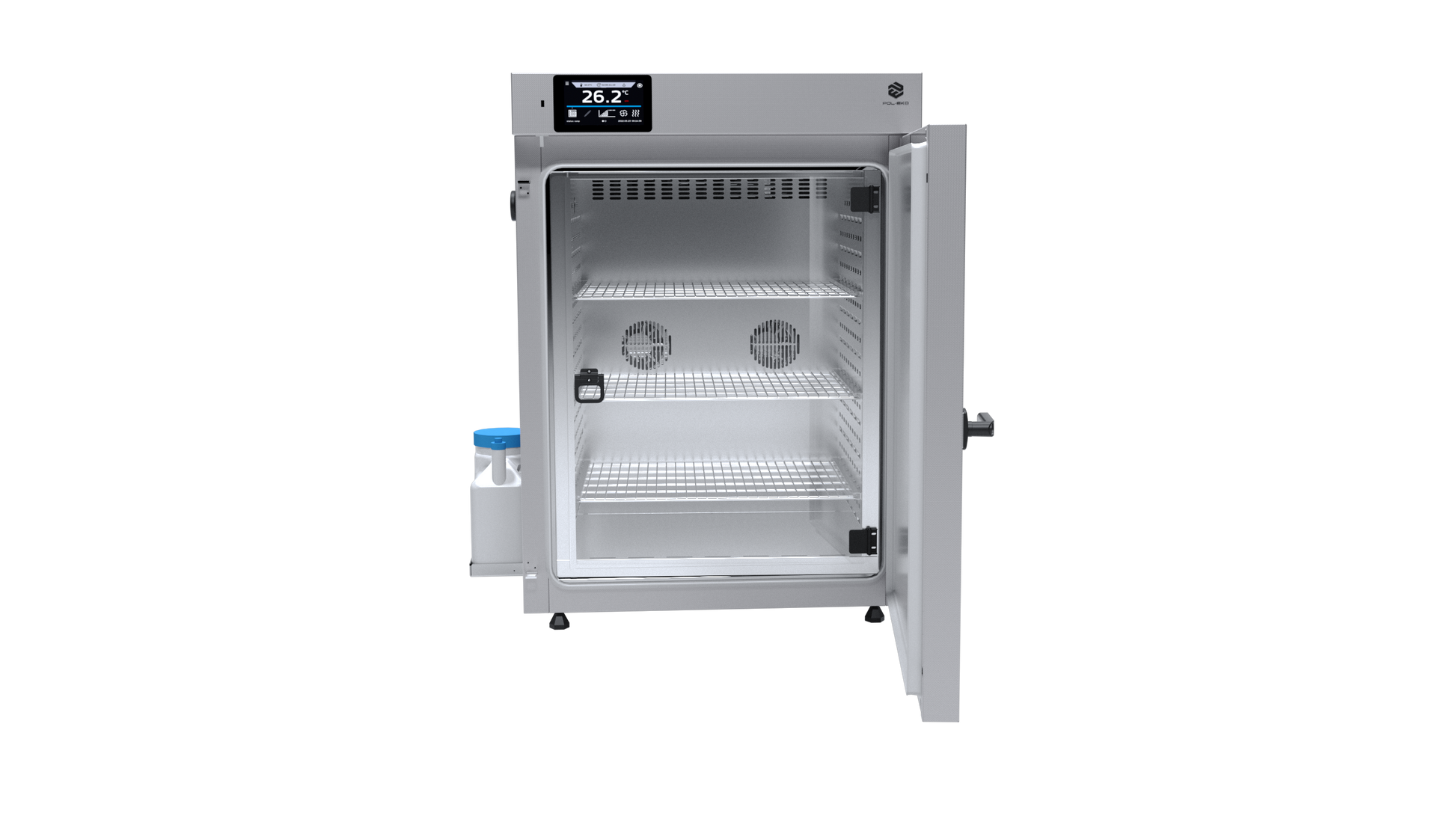

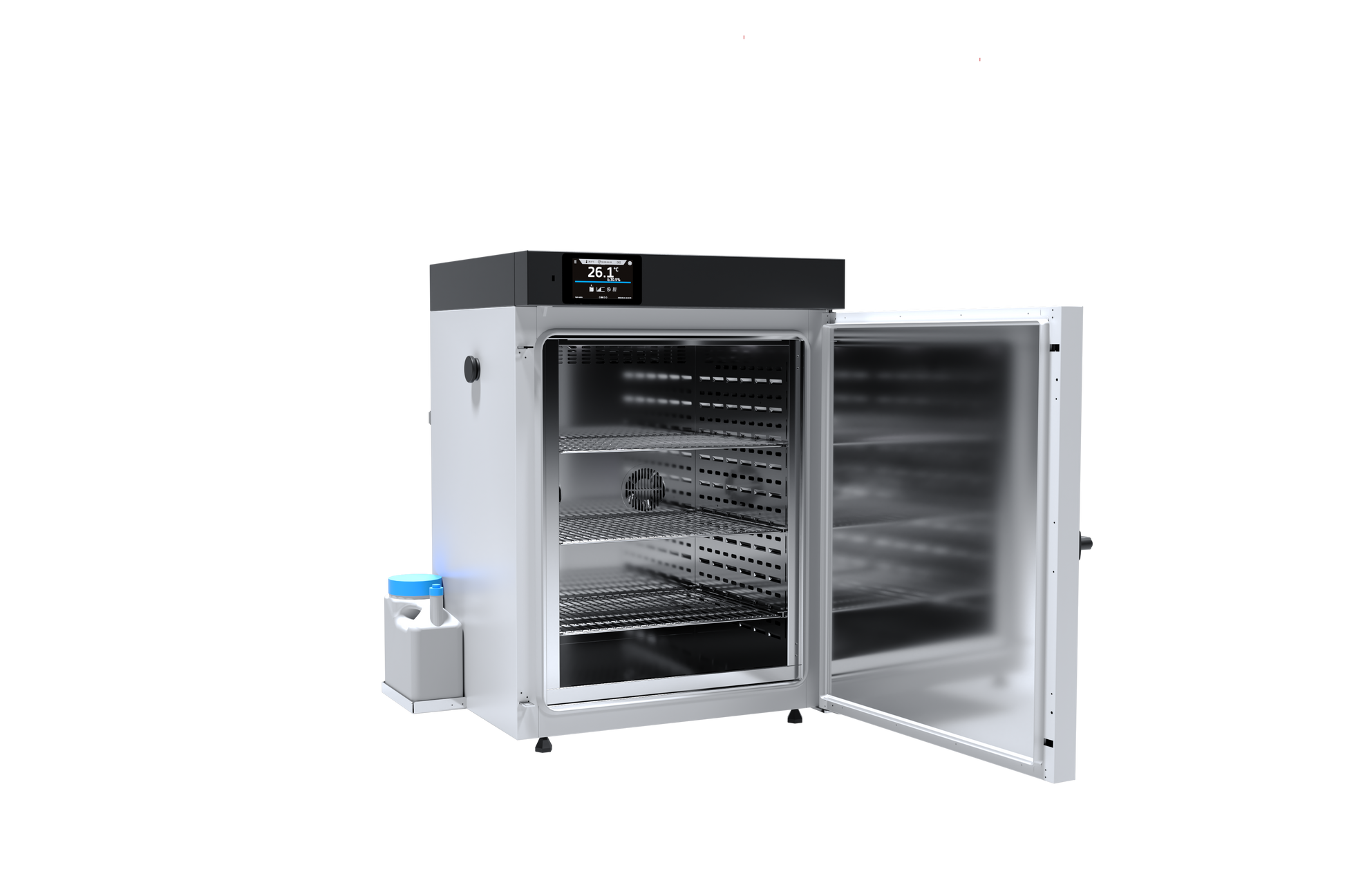

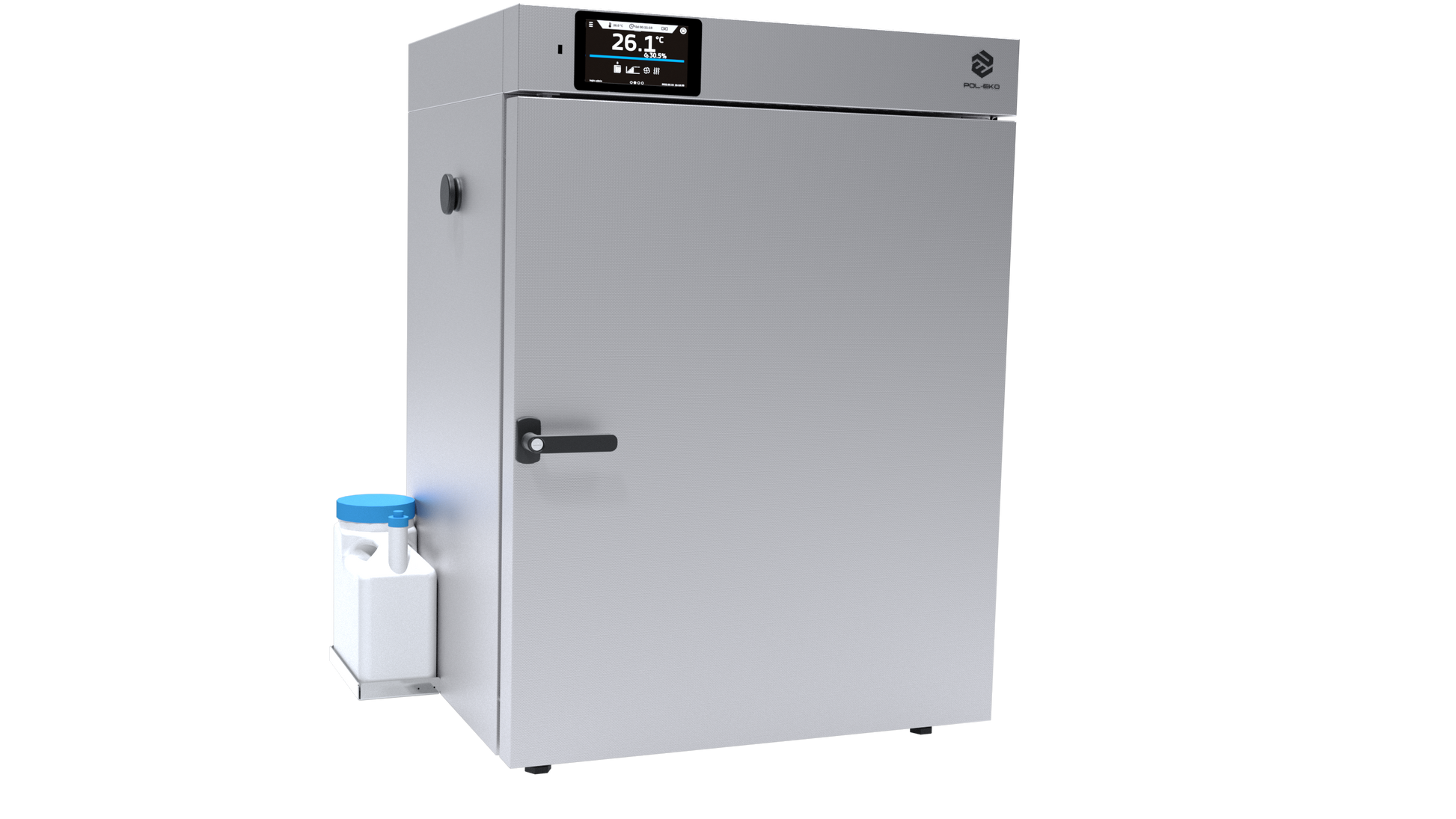

The POL-EKO KKP 240 is a climatic chamber designed for controlled temperature and humidity testing of laboratory samples, materials and products. Its temperature range is 0…+70 °C without humidity (max 20°C below ambient temp.) / +5…+70 °C with humidity (max 20°C below ambient temp.). Capacity is 315 L chamber / 237 L working capacity.

Forced air circulation supports controlled conditions inside the chamber. Control is provided by microprocessor PID; 7" full colour touch screen. Additional controlled parameters include humidity range 10…90 % (temperature-dependent; see operating chart).

Key highlights:

  • Temperature range: 0…+70 °C without humidity (max 20°C below ambient temp.) / +5…+70 °C with humidity (max 20°C below ambient temp.); resolution: 0.1 °C
  • Capacity: 315 L chamber / 237 L working capacity
  • Humidity range: 10…90 % (temperature-dependent; see operating chart)
  • Air circulation: forced
  • Controller: microprocessor PID; 7" full colour touch screen

BROCHURES

KKP 240 Smart PRO datasheet

View full details

Options and accessories for Climatic chamber KKP 240

Pol-Eko

Humidification with a steam generator

The KKP constant climatic chambers with a steam humidifier do not emit ultrasounds and therefore allow insects breeding (e.g. Drosophila melanogaster). Compared to the KK chambers, they feature an extended temperature and humidity range and can be used for tests of electronics, plastic or building materials.

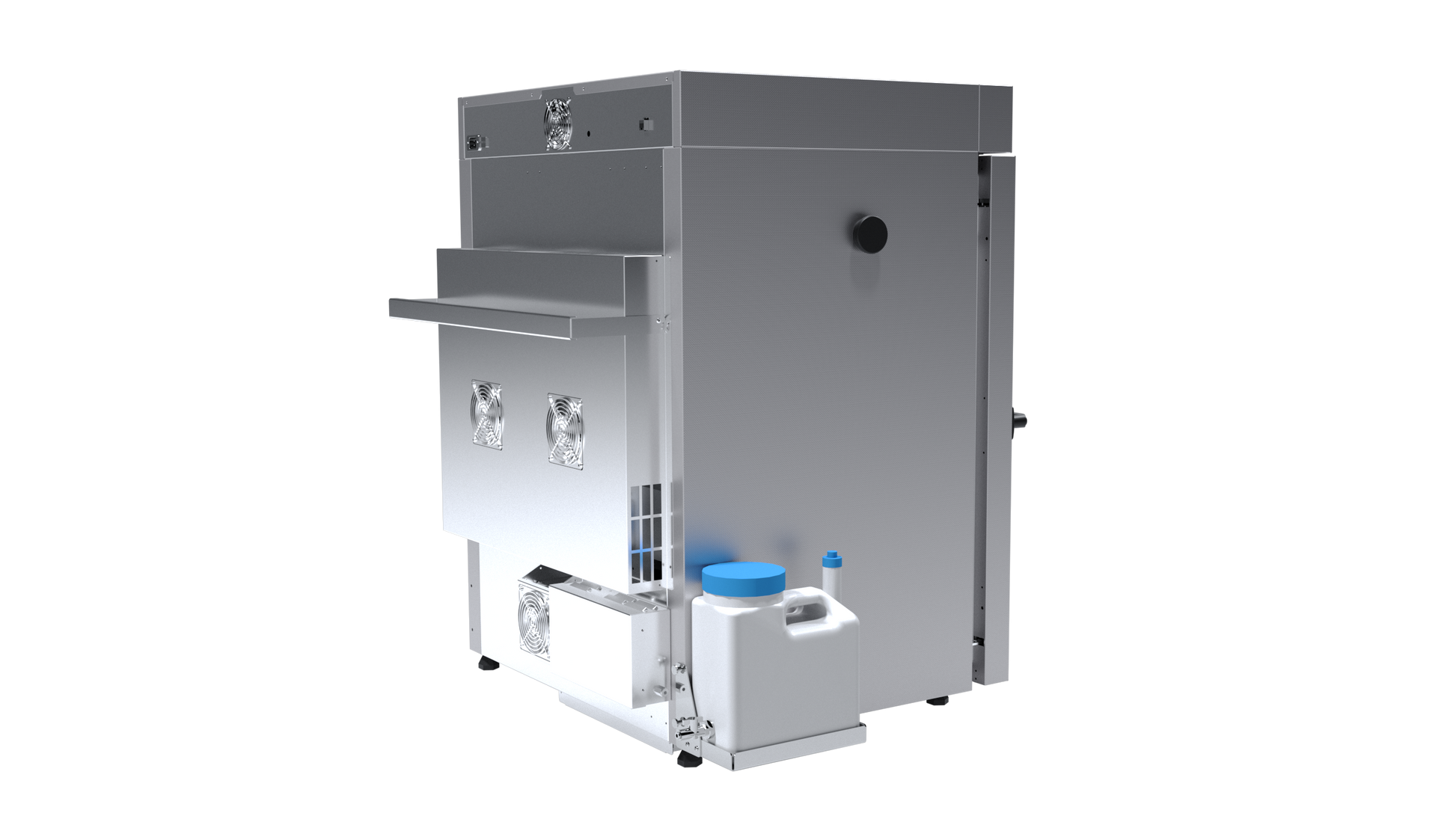

Steam humidifier in the KKP models is an energy-saving solution based on an aluminum heating block and a peristaltic pump controlled by a stepper motor. This humidifier has a very fast heating time and enables the dosing of precisely measured amounts of water. Operation in ECO mode (the block heats up only when it detects the need for dosing moisture to the chamber) saves energy.

How does work Peltier cooling-heating system?

Climate testing points according to ICH Q1 A (R2) guidelines.

Pol-Eko

SMART PRO controller

The brand new Smart PRO controllers are direct followers to the TOP+ controllers and will be available for the KK climatic chambers, IL cooled incubators, SL drying ovens, CL laboratory incubators, as well as the ST cooled incubators, CHL laboratory refrigerators, ZL laboratory freezers and ZLN-UT ultra-low freezers.

Advantages of the Smart PRO controller:

  • large (7"), clear, full colour touch screen
  • LAN, USB ports and WiFi for communication and data transfer
  • multi-segment time and temperature programs
  • loop function up to 255 times or endless
  • adjustable start delay feature
  • adjustable ramps
  • recording of min, average and max temperature value for each segment
  • operating in temperature or time priority mode
  • fan speed control in the range of 0 … 100% or 10% … 100% (depending on the chamber capacity); and 50…100% for ST/CHL/ZL, except ILP
  • temperature sensor fail alarm
  • possibility of temperature calibration by the User
  • power failure control system (program continued after restoring power)
  • overview of data in tabular and graphic form
  • visual and sound alarm
  • administrating functions for management
  • password protected log-in
  • internal memory for programs and data storage
  • operating with gloves on
  • event registry with user notifications
  • LabDesk software and user manual for direct download
  • Alarm Bar – quick visual information about device status
  • Quick Note – user can save messages (50 characters) in Smart PRO controller memory
  • Quick Change of parameters: temperature, humidity, time, air flap and fan

Pol-Eko Smart PRO controller
