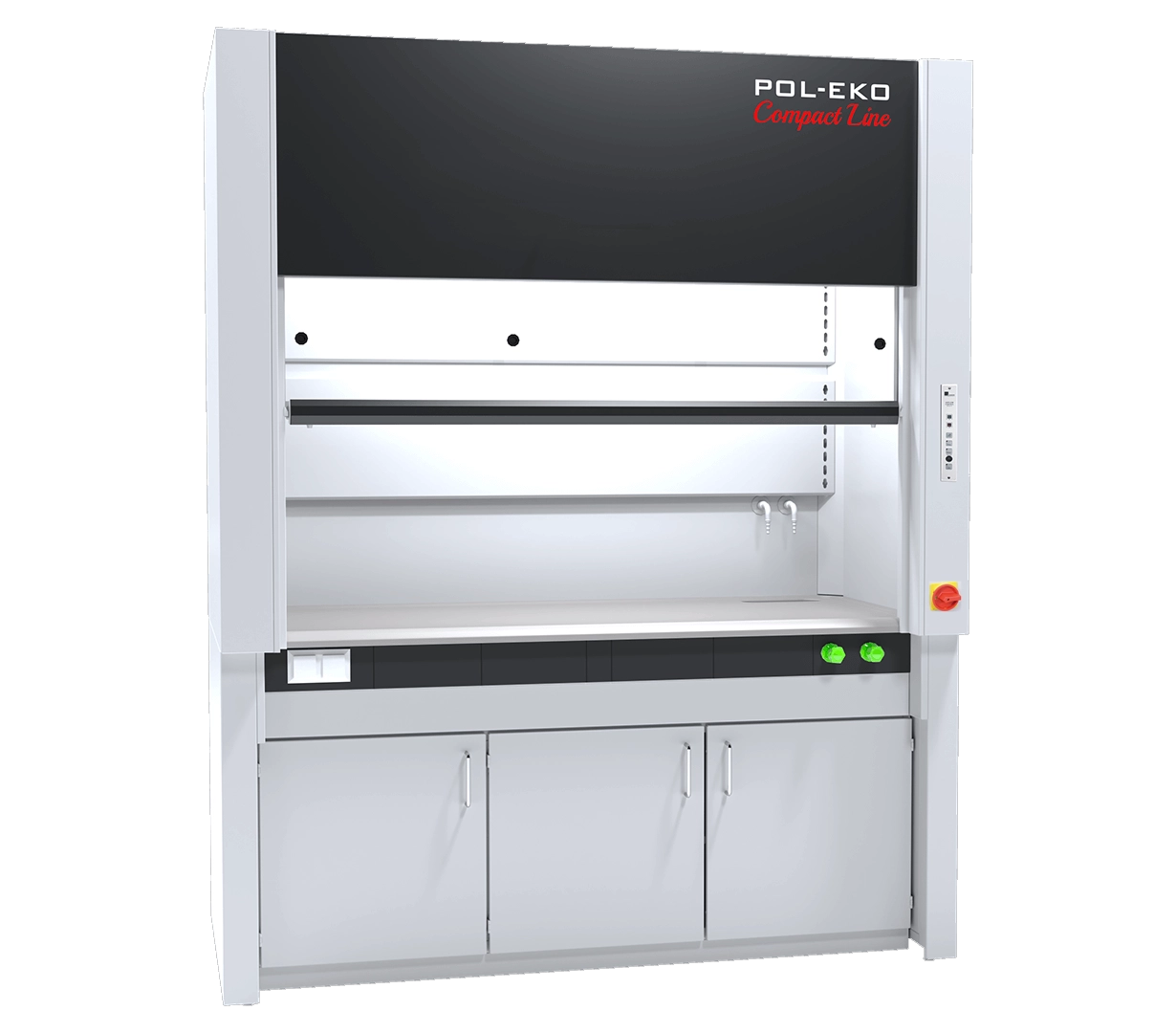

Compact Line fume hoods ensure safe and comfortable work in the laboratory. Metal construction and a wide range of finishing elements (worktops, internal chamber materials, sinks and fittings, etc.) allow the fume hood to be adapted to the needs of any laboratory. Designed according to EN 14175.
External dimensions (w x d x h):1880x960x2325 mm
(2575 mm height with open window)

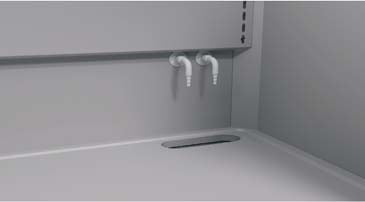

Working chamber material (options)
SS - Epoxy coated galvanized steel
LM - Phenolic resin
PP - Polypropylene
CR - Buchtal ceramics
HF - Polypropylene & Polycarbonate window
Worktop material (options)

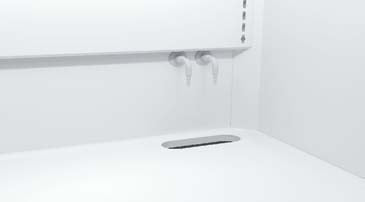

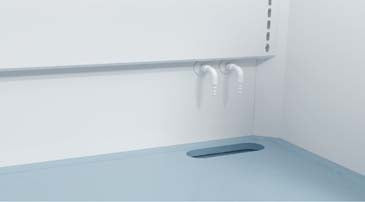

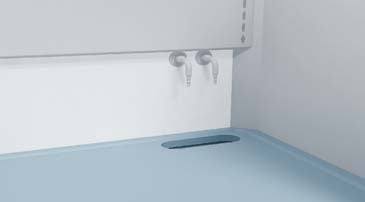

Monolithic ceramics with marine edge and sink (280x80mm)
Polypropylene with marine edge and pp sink (250x100 mm)

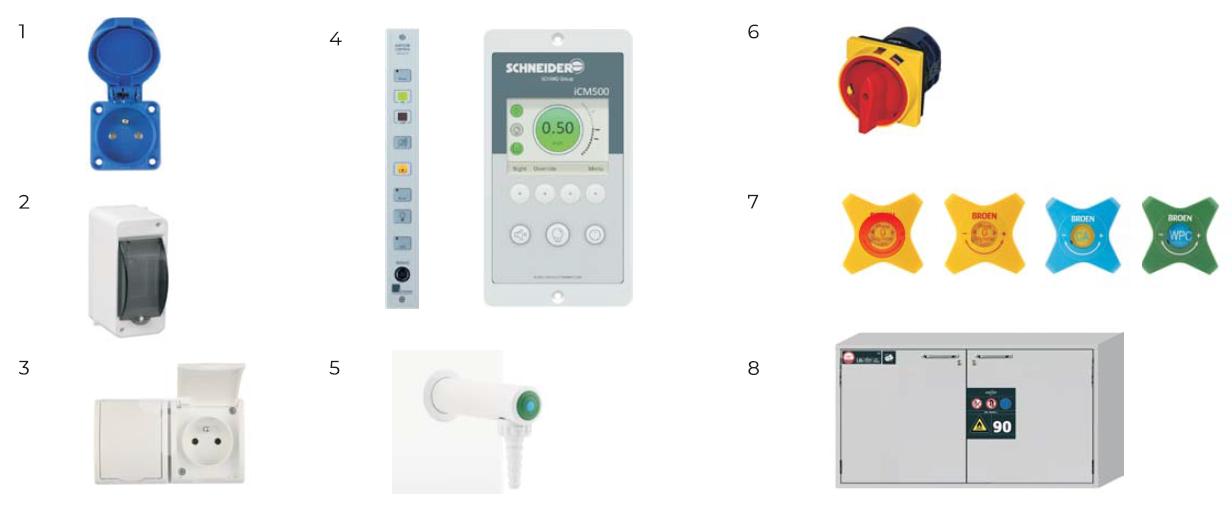

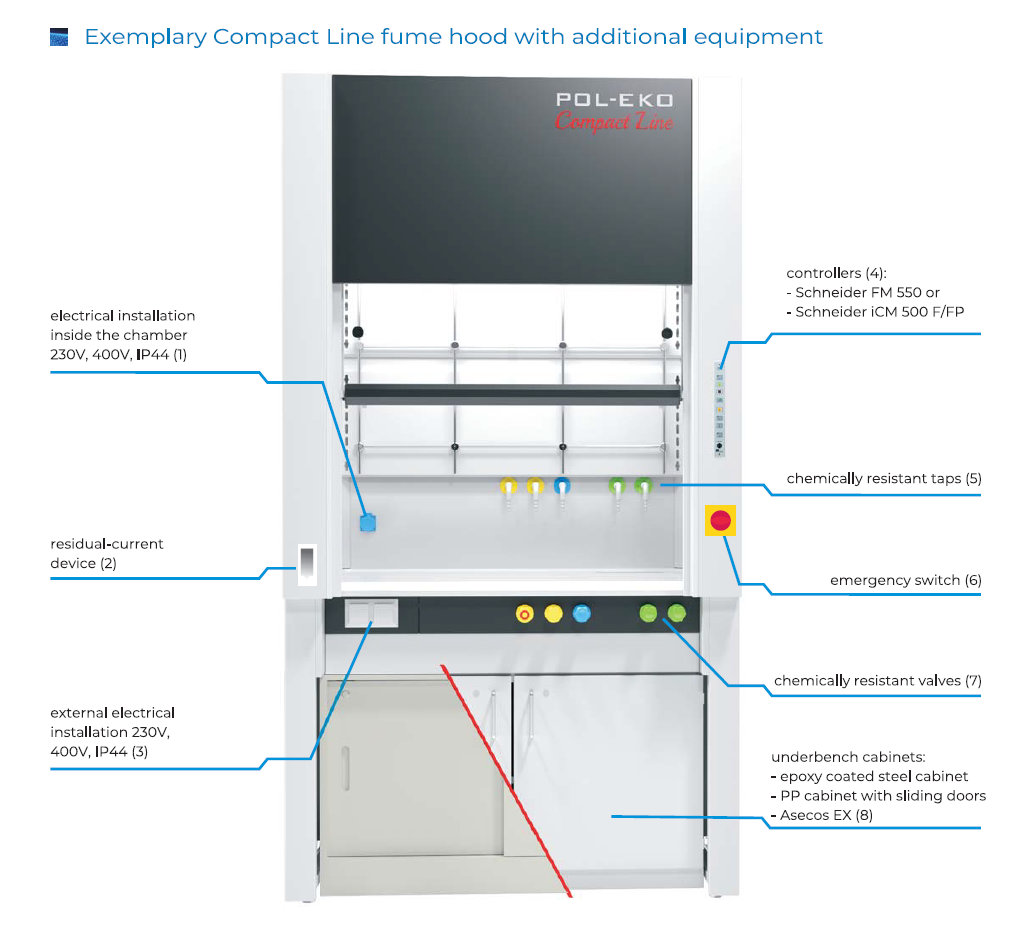

Standard features
2 x 230V 50-60Hz electrical sockets
2 x water taps with valves in the front panel
sink 280x80mm
LED illumination of the working chamber
Air-flow sensor (Schneider FM 550-A-0-E)
Window, opening upwards at 500 mm height (max 810 mm), sliding glass (right/left)
System preventing uncontrolled window falling
CE Declaration of Conformity: EN 14175; EN 14056; EN 13150
Not include base cabinet or accessories. Please select these separate.
