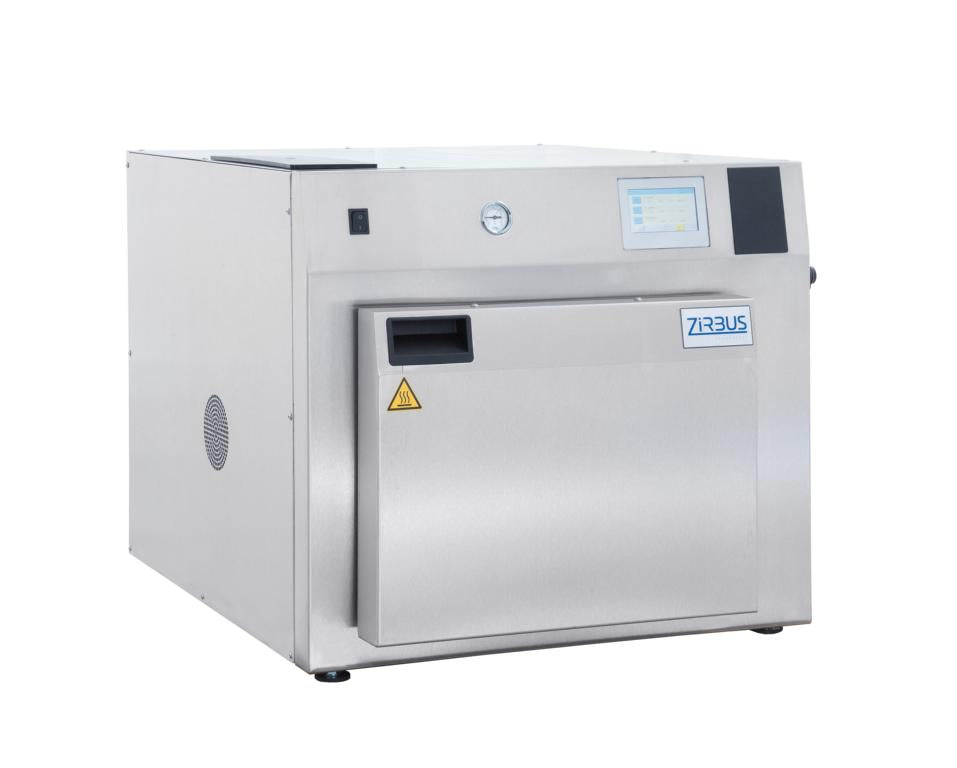

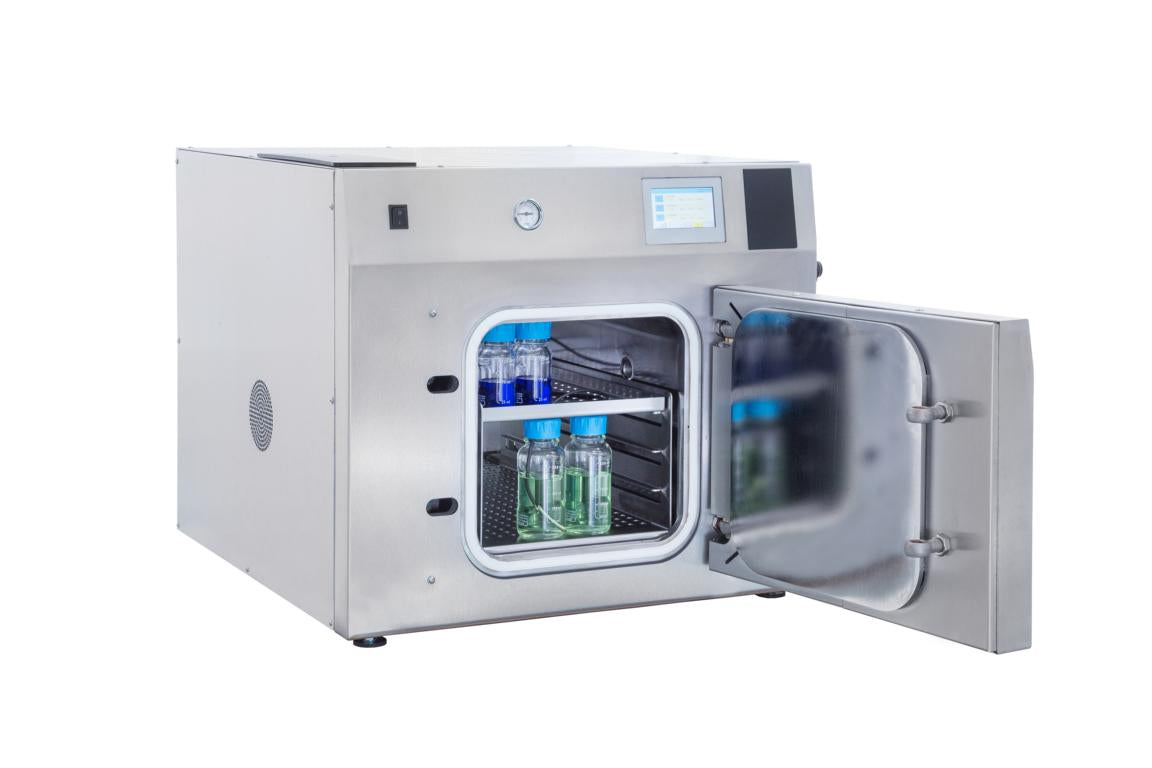

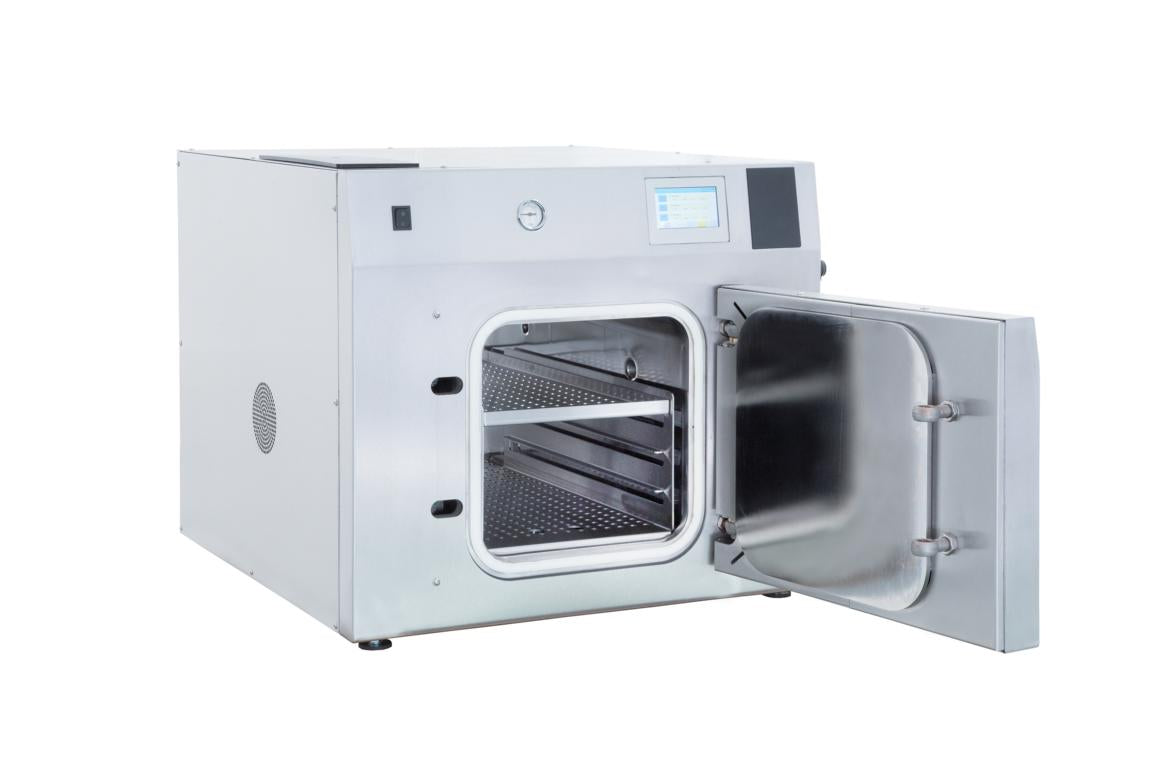

Autoclave LabStar 70
Autoclave LabStar 70
SKU:
Couldn't load pickup availability
Estimated delivery time: 6-8 weeks
Warranty: 2 years
Chamber volume: 65 L
Chamber type: square chamber
Chamber dimensions (WxHxD): 310 x 310 x 680 mm
External dimensions (WxHxD): 550 x 625 x 805 mm
Steam generator 6,0 kW
Brochures
Brochures
Share
The following equipment variants are available:
Basic lab - recommended for sterilization of simple goods or liquids without dry removal
Labstar 40
- Heating elements in chamber
- Control system
Labstar 70
- Heating elements in chamber
- Control system
Labstar 100, 150 and 200
- Steam generator
- Control system
Dry Lab - recommended for sterilization of non-infectious waste bags and goods that require intensive post-drying
Labstar 40
- Heating elements in chamber
- Membrane vacuum pump
- Control system
Labstar 70
- Steam generator
- Water ring vacuum pump
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water ring vacuum pump
- Control system
Quick Lab Basic - Recommended for sterilization of large quantities of liquids
Labstar 40
- Heating elements in chamber
- Water rapid recooling
- Control system
Labstar 70
- Heating elements in chamber
- Water rapid recooling
- Circulating air fan
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water rapid recooling
- Circulating air fan
- Control system
Quick Lab - recommended for sterilization of non-infectious waste bags, large quantities of liquids and goods that require intensive post-drying
Labstar 40
- Heating elements in chamber
- Water rapid recooling
- Membrane vacuum pump
- Control system
Labstar 70
- Steam generator
- Water ring vacuum pump
- Water rapid recooling
- Circulating air fan
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water ring vacuum pump
- Water rapid recooling
- Circulating air fan
- Control system
Quick Lab Advanced - recommended for sterilization of non-infectious waste bags, large quantities of liquids and goods that require intensive post-drying – this also applies to liquids in closed containers
Labstar 40
- Not available
Labstar 70
- Steam generator
- Water ring vacuum pump
- Water rapid recooling
- Circulating air fan
- Steam-air mixture Process
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water ring vacuum pump
- Water rapid recooling
- Circulating air fan
- Steam-air mixture Process
- Control system
Safe Lab - recommended for operation in S2 laboratory and for sterilization of infectious waste bags and goods that require intensive post-drying
Labstar 40
- Heating elements in chamber
- Membrane vacuum pump
- Exhaust air filter with Condensate inactivation
- Control system
Labstar 70
- Steam generator
- Water ring vacuum pump
- Exhaust air filter with Condensate inactivation
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water ring vacuum pump
- Exhaust air filter with Condensate inactivation
- Control system
Complete Lab - Fully equipped laboratory autoclave for operation in S2 laboratory. Recommended for sterilization of infectious waste bags, large volumes of liquids and goods requiring intensive post-drying.
Labstar 40
- Heating elements in chamber
- Membrane vacuum pump
- Exhaust air filter with Condensate inactivation
- Water rapid recooling
- Control system
Labstar 70
- Steam generator
- Water ring vacuum pump
- Exhaust air filter with Condensate inactivation
- Water rapid recooling
- Circulating air fan
- Control system
Labstar 100, 150 and 200
- Steam generator
- Water ring vacuum pump
- Exhaust air filter with Condensate inactivation
- Water rapid recooling
- Circulating air fan
- Control system
Explanation of the individual components
Steam generator
Independent of the sterilization chamber integrated in the autoclave housing. Ensures rapid heating and cooling compared to conventional heating systems.
Water rapid recooling with circulating air fan
Enables a reduction in re-cooling time of over 80 % compared to self-cooling in the sterilization of liquids. This is achieved by means of an internal heat exchanger through which water flows, also known as a “fast cooler”.
Vacuum pump kit
For mechanical removal of air and drying in vacuum. Possible processes are single-stage vacuum, fractionated vacuum, continuous or pulsating drying in vacuum. Furthermore, the post-drying can be accelerated by supporting a jacket heating.
Exhaust air filtration
Condensate activation for sterilization of pathogenic substances in S2/S3 laboratories according to TRB 100.
Steam-air mixture process
For the sterilization of tightly closed bottles and pressure-sensitive goods. An additional temperature sensor, air baffles and a circulating air fan ensure precise temperature control and distribution.
Documentation
For documentation, a printer with network connection and our Sterilog batch documentation software (via RJ45 Ethernet interface or as USB memory card) are optionally available.
Qualification
For equipment qualification, we offer comprehensive IQ, OQ and DQ.
Touch display with control
Enables simple and intuitive operation on the autoclave. In conjunction with user-friendly software, this allows the autoclave to be operated quickly but also highly variably and easily. Maximum variability is ensured by 12 program positions, 10 of which are fully variable.
The following parameters can be freely set for each program:
– Program type: solid, liquid, waste solid, waste liquid
– Sterilization temperature: 105°C…138°C
– Sterilization time: 1min…60min
– Excess temperature for liquids: 0…3°C
– Holding time at the end of the liquid program 1min…60min
– Timer for programmable start time
Accessories
From our LabStar 100, stainless steel base cabinets, transport and batch trolleys are available.
