RADWAG

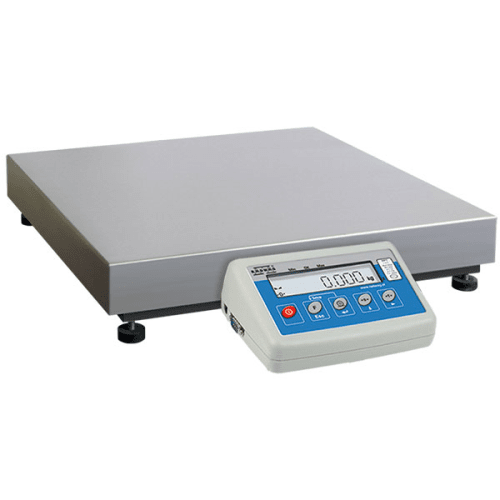

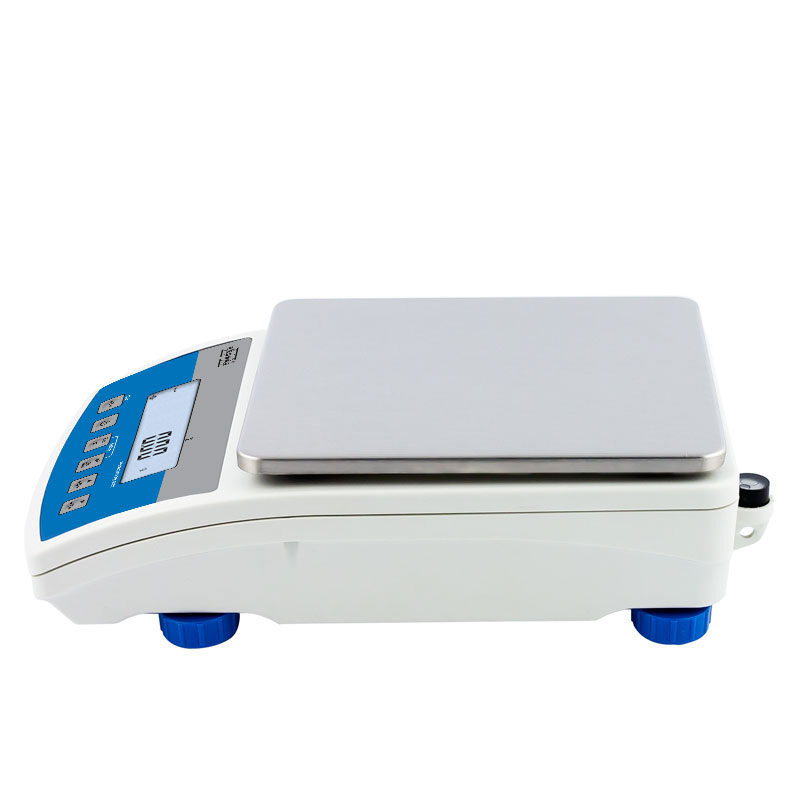

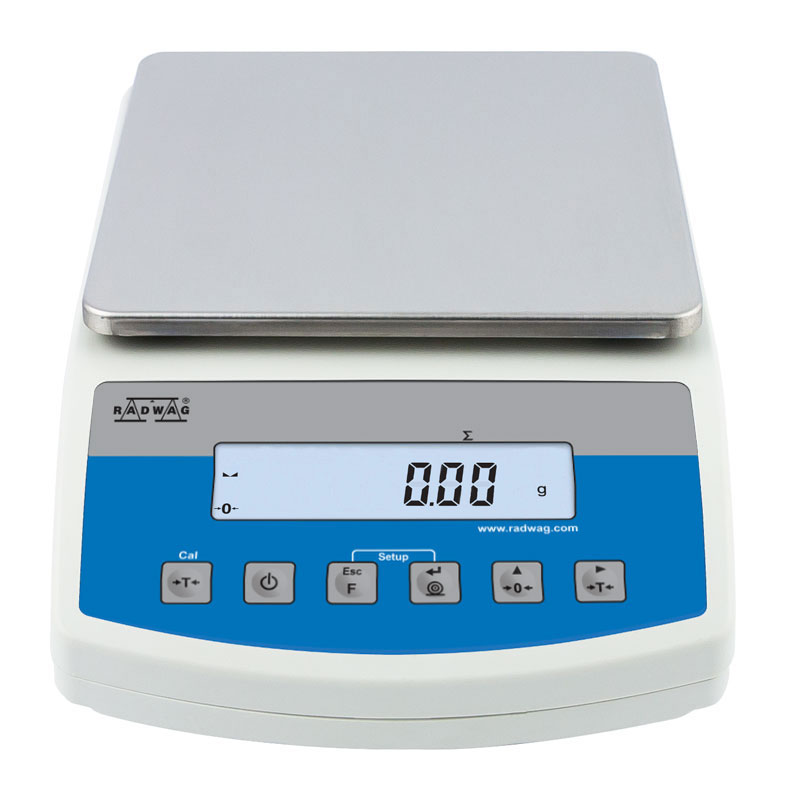

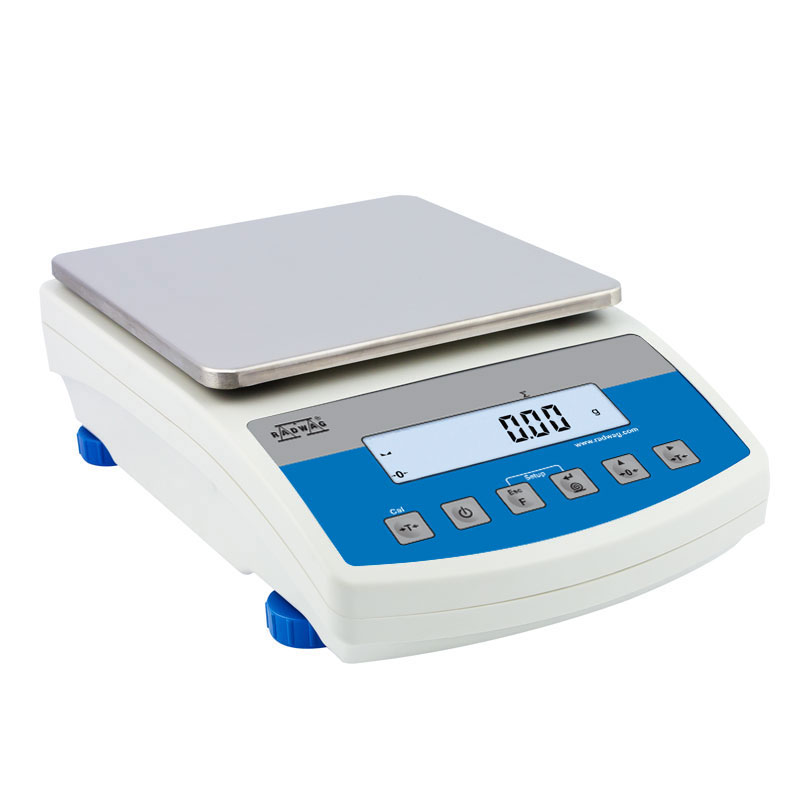

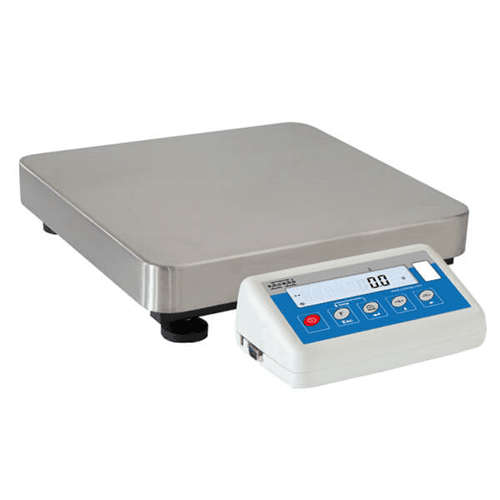

Precision balance WLC

Precision balance WLC

Regular price €403,33
Regular price €403,33 Sale price €403,33
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:WL-206-0041

Maximum capacity
Quantity
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 2–3 weeks

Warranty: 2 years

The RADWAG WLC precision balances give fast, accurate and repeatable results. Energy-efficient electronics and an internal rechargeable battery allow work without mains power.

Key highlights:

  • Maximum capacity: 1 kg – 120 kg
  • Readability: 0.01 g – 2 g
  • Display: 4.3” LCD (backlit)
  • OIML class -; IP 43
  • 2-year warranty

Technical data

Product category
Precision balance
Maximum capacity
1 kg - 120 kg
Readability
0.01 g - 2 g
Display
4.3” LCD (backlit)
External dimensions (W × D × H)
195×195 pan (A2): 206 × 333 × 97 mm; 300×300 pan (F1): platform 300 × 300 × 70 mm (F1/R with terminal 445 mm wide); 400×500 pan (C2): platform 402 × 502 × 103 mm (W × D × H)
Weight
11.1 kg
Connections
2×RS232, USB-A, USB-B
Standards
OIML class -; IP 43
Operating conditions
+15 – +30 °C, RH 10% – 85% RH no condensation
View full details

RADWAG

Precision balance WLC

The RADWAG WLC precision balances give fast, accurate and repeatable results. Energy-efficient electronics and an internal rechargeable battery allow work without mains power. Key highlights: Maximum capacity: 1 kg – 120 kg Readability: 0.01 g – 2 g Display: 4.3” LCD (backlit) OIML class -; IP 43 2-year warranty
  • Maximum capacity1 kg - 120 kg
  • Readability0.01 g - 2 g
  • Warranty2 years
Request a quote
Precision balance WLC RADWAG

All features

  • Series: Precision balance WLC – 34 models
  • Display: 4.3” LCD (backlit)
  • Adjustment: external
  • Leveling system: manual
  • Communication interface: 2×RS232, USB-A, USB-B
  • Power supply: Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Balance: 10 – 15VDC 0.6A max
  • Protection class: IP 43
  • Operating temperature: +15 – +30 °C
  • Relative humidity: 10% – 85% RH no condensation
  • Functions: Plus/Minus Control, Percent Weighing, Totalizing, Parts counting, Newton unit, Internal battery, Peak hold, Under-pan weighing
  • WLC 1/A2 (WL-206-0041): Max 1 kg, d = 0.01 g, repeatability 0.01 g, linearity ±0.03 g, pan 195×195 mm, net weight 2.5 kg
  • WLC 10/A2 (WL-206-0004): Max 10 kg, d = 0.1 g, repeatability 0.1 g, linearity ±0.3 g, pan 195×195 mm, net weight 3 kg
  • WLC 12/F1/R (WL-206-0076): Max 12 kg, d = 0.2 g, repeatability 0.2 g, linearity ±0.6 g, pan 300×300 mm, net weight 5.5 kg
  • WLC 30/F1/R (WL-206-0078): Max 30 kg, d = 0.5 g, repeatability 0.5 g, linearity ±1.5 g, pan 300×300 mm, net weight 5.5 kg
  • WLC 120/C2/R (WL-206-0036): Max 120 kg, d = 2g, repeatability 2g, linearity ±6 g, pan 400×500 mm, net weight 11.1 kg
  • WLC 20/A2 (WL-206-0022): Max 20 kg, d = 0.1 g, repeatability 0.1 g, linearity ±0.3 g, pan 195×195 mm, net weight 2.63 kg
  • WLC 2/A2 (WL-206-0039): Max 2 kg, d = 0,01 g
  • WLC 6/A2 (WL-206-0003): Max 6 kg, d = 0.1 g, e = 1g, repeatability 0.1 g, linearity ±0.2 g, pan 195×195 mm, net weight 2.64 kg
  • WLC 60/C2/R (WL-206-0063): Max 60 kg, d = 1g, e = 10 g, repeatability 1g, linearity ±3 g, pan 400×500 mm, net weight 11.1 kg
  • WLC 12/30/F1/K (WL-214-1034): Max 12 / 30 kg, d = 0.2 / 0.5 g, repeatability 0.2 / 0.5 g, linearity ±0.6 / 1.5 g, pan 300×300 mm, net weight 5.4 kg
  • WLC 12/30/F1/R (WL-214-1035): Max 12 / 30 kg, d = 0.2 / 0.5 g, repeatability 0.2 / 0.5 g, linearity ±0.6 / 1.5 g, pan 300×300 mm, net weight 5.5 kg
  • WLC 30/60/C2/K (WL-214-1017): Max 30 / 60 kg, d = 0.5 / 1 g, repeatability 0.5 / 1 g, linearity ±1.5 / 3 g, pan 400×500 mm, net weight 11 kg
  • WLC 30/60/C2/R (WL-214-1023): Max 30 / 60 kg, d = 0.5 / 1 g, repeatability 0.5 / 1 g, linearity ±1.5 / 3 g, pan 400×500 mm, net weight 11.1 kg
  • WLC 6/12/F1/K (WL-214-1032): Max 6 / 12 kg, d = 0.1 / 0.2 g, e = -g, repeatability 0.1 / 0.2 g, linearity ±0.2 / 0.6 g, pan 300×300 mm, net weight 5.4 kg
  • WLC 6/12/F1/R (WL-214-1033): Max 6 / 12 kg, d = 0.1 / 0.2 g, e = -g, repeatability 0.1 / 0.2 g, linearity ±0.2 / 0.6 g, pan 300×300 mm, net weight 5.5 kg
  • WLC 60/120/C2/K (WL-214-1012): Max 60 / 120 kg, d = 1/2g, repeatability 1/2g, linearity ±3 / 6 g, pan 400×500 mm, net weight 11 kg
  • WLC 60/120/C2/R (WL-214-1014): Max 60 / 120 kg, d = 1/2g, repeatability 1g, linearity ±3 / 6 g, pan 400×500 mm, net weight 11.1 kg
  • WLC 1/A2/IO with 4IN/4OUT (WL-206-0159): Max 1 kg, d = 0.01 g, repeatability 0.01 g, linearity ±0.03 g, pan 195×195 mm, net weight 3 kg
  • WLC 10/A2/IO with 4IN/4OUT (WL-206-0162): Max 10 kg, d = 0.1 g, repeatability 0.1 g, linearity ±0.3 g, pan 195×195 mm, net weight 3 kg
  • WLC 12/F1/K (WL-206-0075): Max 12 kg, d = 0.2 g, repeatability 0.2 g, linearity ±0.6 g, pan 300×300 mm, net weight 5.4 kg
  • WLC 120/C2/K (WL-206-0021): Max 120 kg, d = 2g, repeatability 2g, linearity ±6 g, pan 400×500 mm, net weight 11 kg
  • WLC 120/C2/M (WL-206-0151): Max 120 kg, d = 2 g
  • WLC 2/A2/IO with 4IN/4OUT (WL-206-0160): Max 2 kg, d = 0,01 g
  • WLC 20/A2/IO with 4IN/4OUT (WL-206-0163): Max 20 kg, d = 0,1 g
  • WLC 30/60/C2/M (WL-206-1021): Max 30/60 kg, d = 0,5/1 g
  • WLC 30/C2/K (WL-206-0014): Max 30 kg, d = 0,5 g
  • WLC 30/F1/K (WL-206-0077): Max 30 kg, d = 0.5 g, repeatability 0.5 g, linearity ±1.5 g, pan 300×300 mm, net weight 5.4 kg
  • WLC 30/F1/M (WL-206-0470): Max 30 kg, d = 0,5 g
  • WLC 6/A2/1 (WL-206-0469): Max 6 kg, d = 1g, e = 1g, repeatability 1g, linearity ±1 g, pan 195×195 mm, net weight 2.3 kg
  • WLC 6/A2/IO with 4IN/4OUT (WL-206-0161): Max 6 kg, d = 0.1 g, e = 1g, repeatability 0.1 g, linearity ±0.2 g, pan 195×195 mm, net weight 3 kg
  • WLC 6/F1/K (WL-206-0073): Max 6 kg, d = 0.1 g, e = 1g, repeatability 0.1 g, linearity ±0.2 g, pan 300×300 mm, net weight 5.4 kg
  • WLC 6/F1/R (WL-206-0074): Max 6 kg, d = 0.1 g, e = 1g, repeatability 0.1 g, linearity ±0.2 g, pan 300×300 mm, net weight 5.5 kg
  • WLC 60/C2/K (WL-206-0015): Max 60 kg, d = 1g, e = 10 g, repeatability 1g, linearity ±3 g, pan 400×500 mm, net weight 11 kg
  • WLC 60/C2/M (WL-206-0152): Max 60 kg, d = 1 g

Specifications

Product categoryPrecision balance
Maximum capacity1 kg - 120 kg
Readability0.01 g - 2 g
Display4.3” LCD (backlit)
External dimensions (W × D × H)195×195 pan (A2): 206 × 333 × 97 mm; 300×300 pan (F1): platform 300 × 300 × 70 mm (F1/R with terminal 445 mm wide); 400×500 pan (C2): platform 402 × 502 × 103 mm (W × D × H)
Weight11.1 kg
Connections2×RS232, USB-A, USB-B
StandardsOIML class -; IP 43
Operating conditions+15 – +30 °C, RH 10% – 85% RH no condensation

Accessories and options

Brochures and downloads

Buying and service

  • Who installs and services the equipment?

    Installation, commissioning, maintenance, calibration and validation are carried out by our service partner Metesa Finland Oy. Service contracts are also available. Services are ordered separately – request a quote.

  • Are delivery and installation included in the price?

    No. Shipping costs are calculated at checkout. Delivery, carrying into place and installation are not included in the product price, but can be ordered as additional services.

  • How can I pay?

    You can pay by invoice or credit card. All prices are shown excluding VAT (VAT 0%).
