Frimed

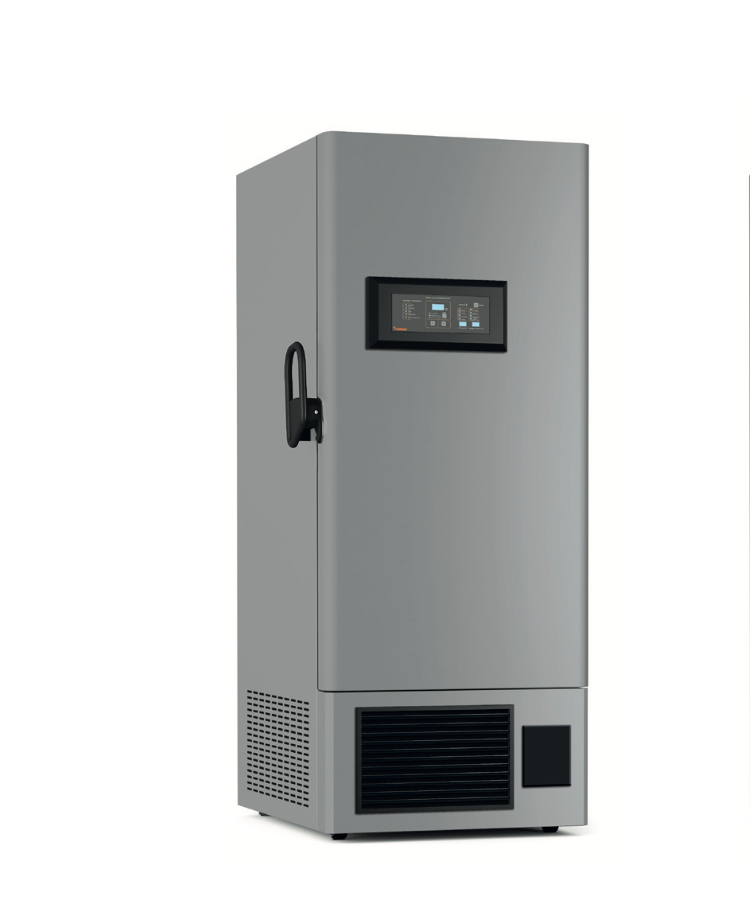

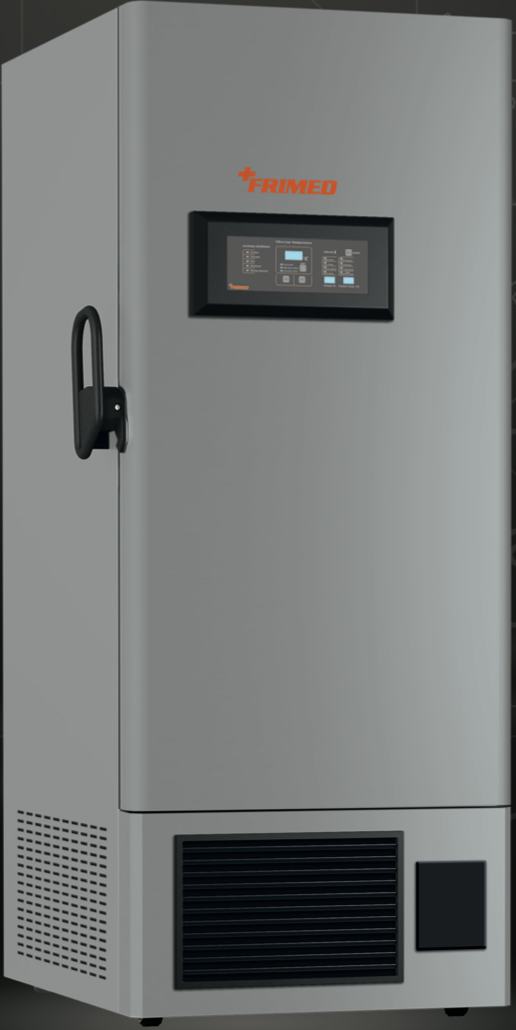

Ultra low freezer FTB-580FR -86°C

Ultra low freezer FTB-580FR -86°C

Regular price €9.544,00 EUR
Regular price €13.934,00 EUR Sale price €9.544,00 EUR
Sale Sold out
Shipping calculated at checkout.

SKU:FTB-580FRI

Estimated delivery time: 4-6 weeks

Warranty: 2 years

Ultra Low Temperature Freezer -86°C Frimed FTB-series | Reliable Cold Storage Solutions

Features:

Capacity 578 liters

Temperature range

  • Temperature range : -40°C to -86°C
  • Temperature accuracy: ±1°C
  • Temperature uniformity: ±5°C
  • Ambient temperature: +10°C ..+32°C

Standard accessories:

  • 3 stainless steel shelves , adjustable in height, mounted on sliding guides
  • 4 pivoting wheels and two stabilizing feet
  • Key lock
  • 3x1 power cable complete with schuko plug
  • Anti-electrical interference filter
  • Protection fuses
  • Auto Voltage Safeguard
  • Battery back-up
  • Electronic control panel with alarm system
  • Remote alarm contact
  • USB port, to download the recorded temperature
  • Acoustic-visual alarm signaling
  • 2x pass through hole

Optional accessories

  • Rack for 25 (5x5) boxes mm133x133x53,5H Total racks 16 total boxes 400
  • Temperature Recorder
  • RS232/485 Port
  • CO2 Backup System: independent refrigeration system for safety during a power failure or compressor broken.
    • User adjustable temperature setting Simple to program and operate. Stainless steel input pipe design, allows for flexibility and ease of cylinder positioning
    • Durable battery lasts up to 48 hours
    • Liquid CO2 test button to ensure the backup system is working
    • Low CO2 alarm system alerts the user when liquid CO2 bottle is low in liquid level
    • The CO2 injection pipe is designed in combination of filter, to prevent the blockage of CO2 back-up system

Dimensions and weight

  • Ext: 903x980x1960 (LxDxH – mm)
  • Int: 620x716x1310 (LxDxH – mm)
  • Weight: kg. 300

Energy consumption:

  •  11 kWh/day (set -80 at 25 ambient )

Sound level

  • 50 dB (A)

Gas refrigerant:

  • HC R290 and R170 Lower GWP, CFC Free



View full details

Options and accessories for Frimed ultra low freezers

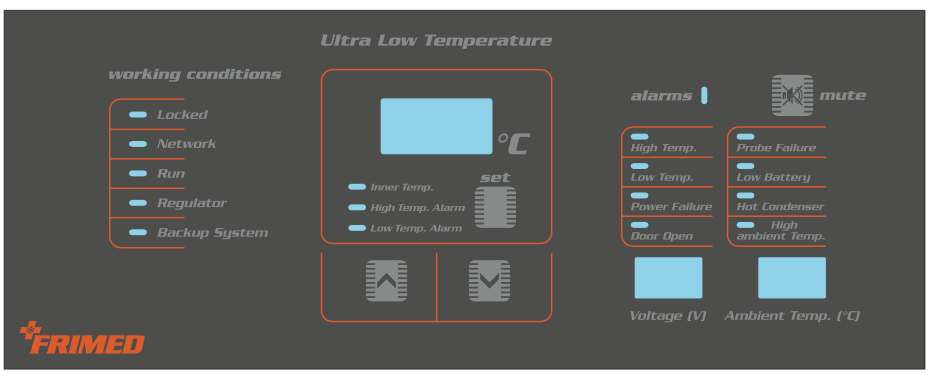

Electronic control system

Microprocessor controller, led display, readout of internal temperature, ambient temperature,and voltage during normal operation. Audible buzzer and visible flashing light for malfunction alarms including:

  • High and low temperature,
  • Power failure,
  • Clean -filter, extremely high ambient
  • Opening door alarm
  • Automatic clean-filter alarm
  • Sensor error alert
  • USB port to download temperature data
  • Remote alarm contacts
  • User-settable protection code for controls

Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions.

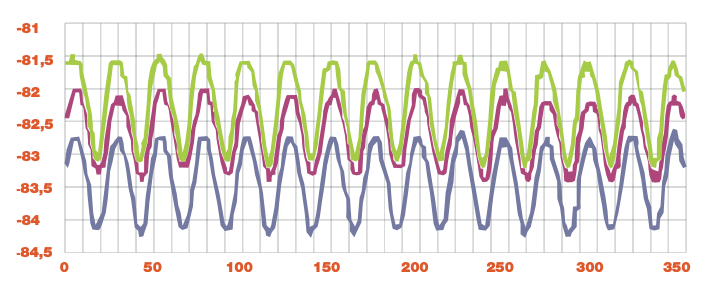

Excellent temperature uniformity

Excellent insultion with high performance VIP insulation panel system

Heat exchange circulation system

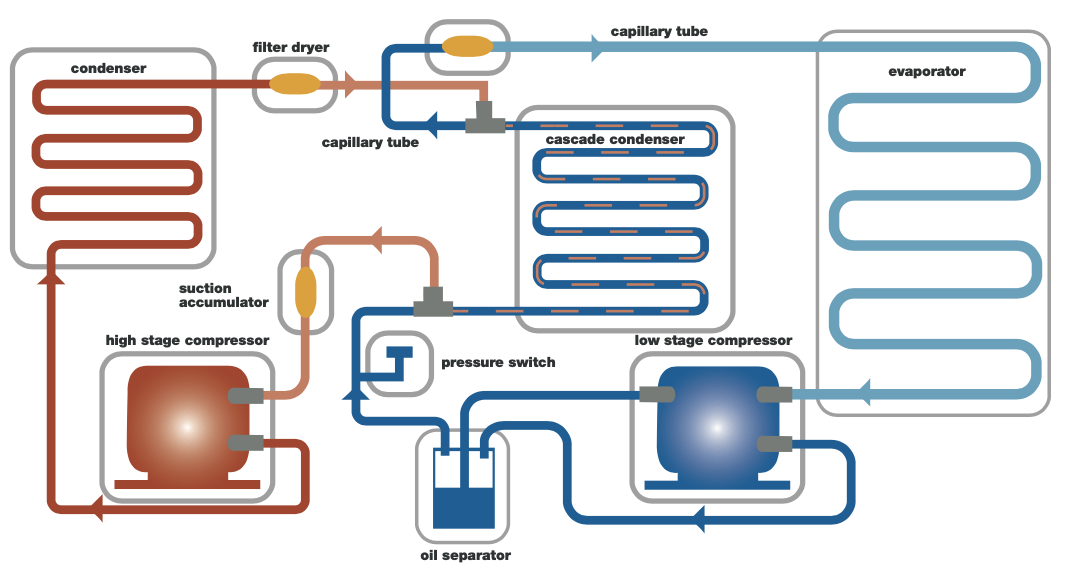

High efficiency HC refrigeration system cascade with 2 high and low stage compressors are
hermetically sealed compressor Secop, designed for low temperature application. Sound level is extremely low.

Extra-large air cooled condenser dissipates product heat content efficiently.

High quality door system

  • 1 door with quadruple gasket seal for perfect closure. Right side hinge. Key lock and provision for adding a padlock

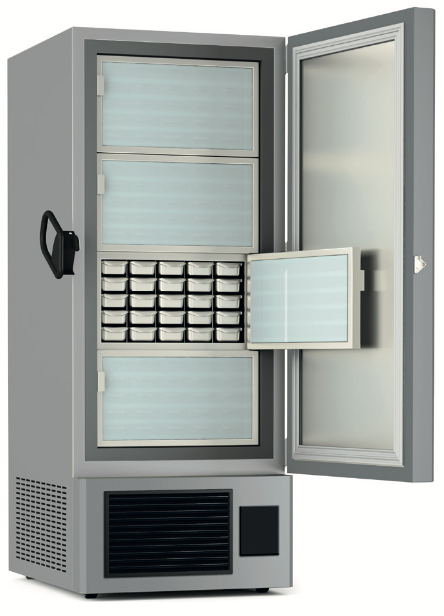

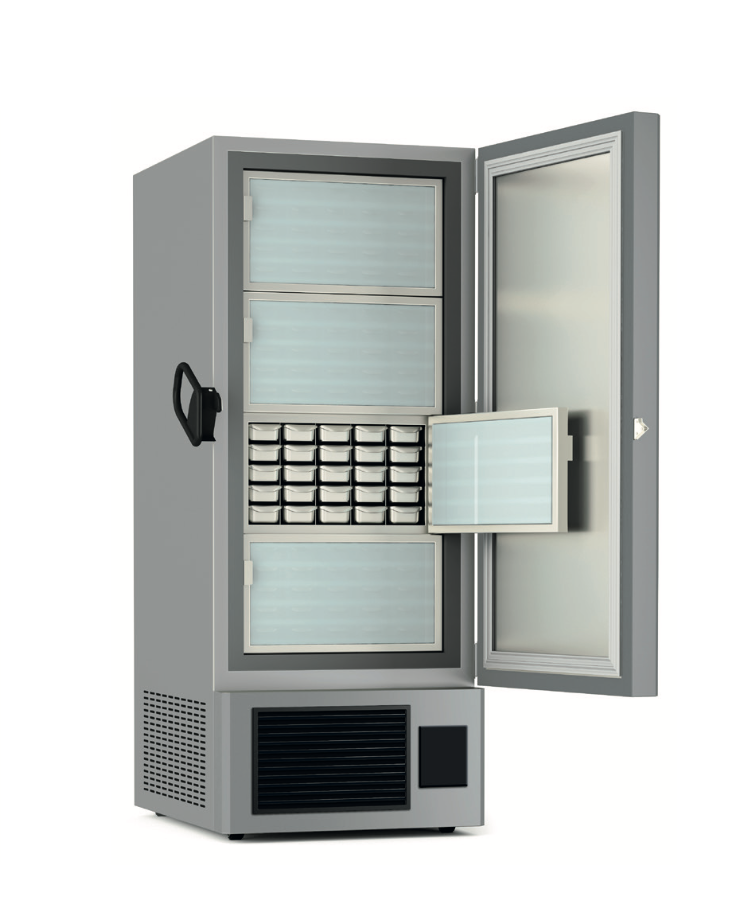

  • 4 inner doors, insulated panel, with eagle beak closure, single-gasketed for a perfect seal to minimize loss of cold air.

Heated Pressure Equalization Port makes re-accessing the unit fast.

Optional accessories

Accessories include CO2 backup system, temperature recorder, RS232/485 port.

Racks are availabe up to 16 pcs in the FTB-580 FR model and up to 20 pcs in the FTB-730 FR model.

Ask for more information regarding the available accessories and options: info@lenolab.fi

Frimed expert in medical refrigeration field
