Pol-Eko

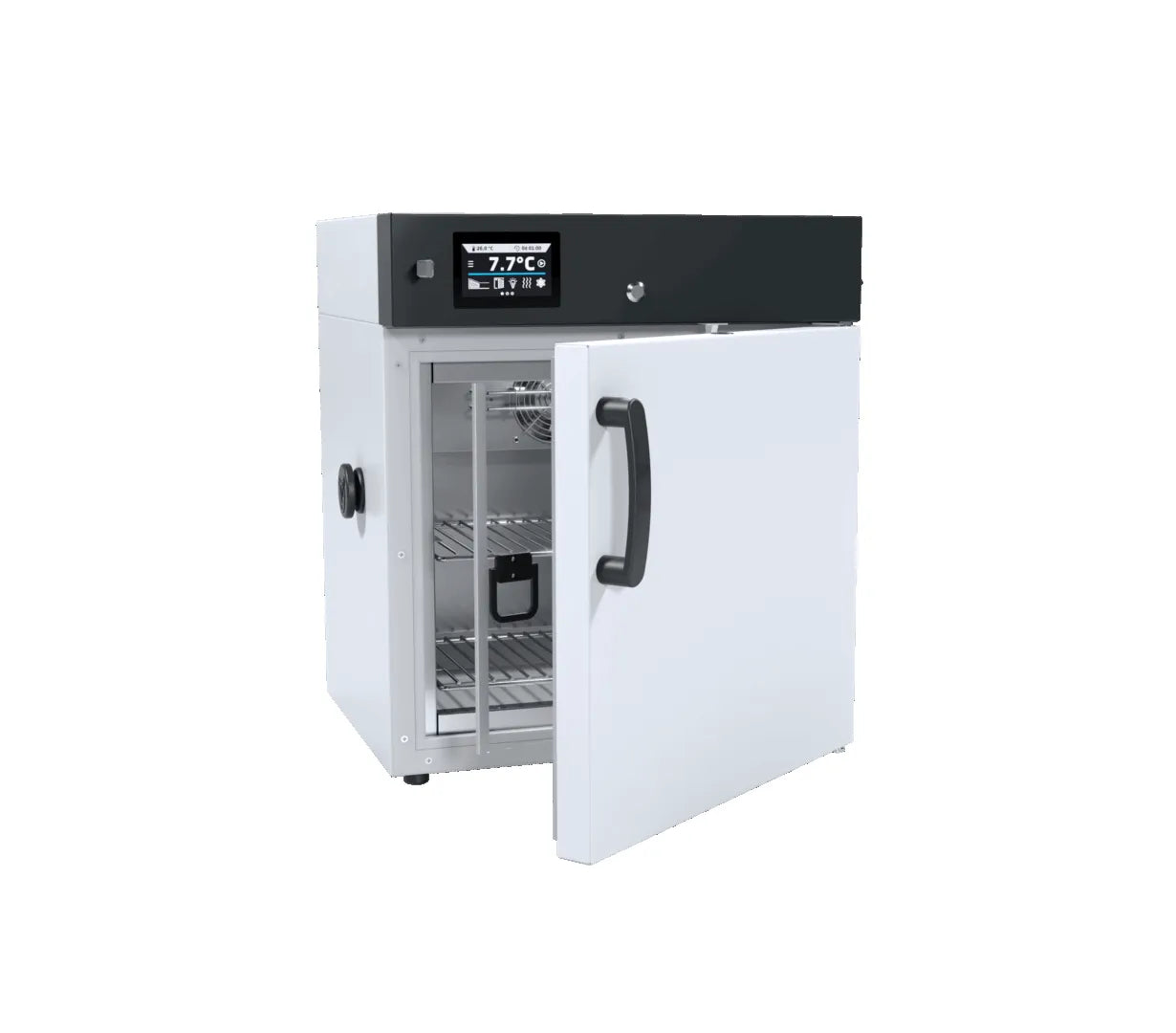

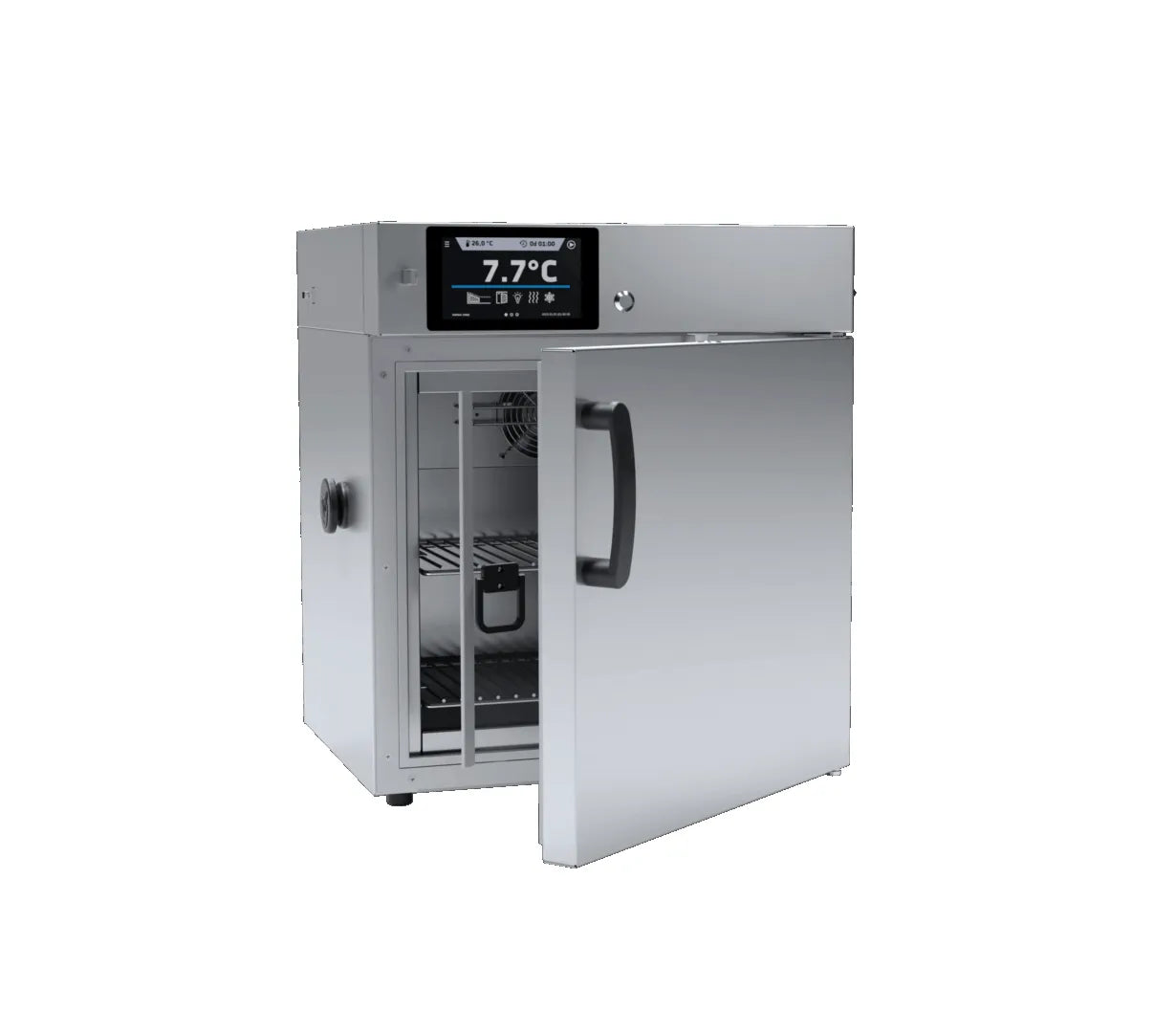

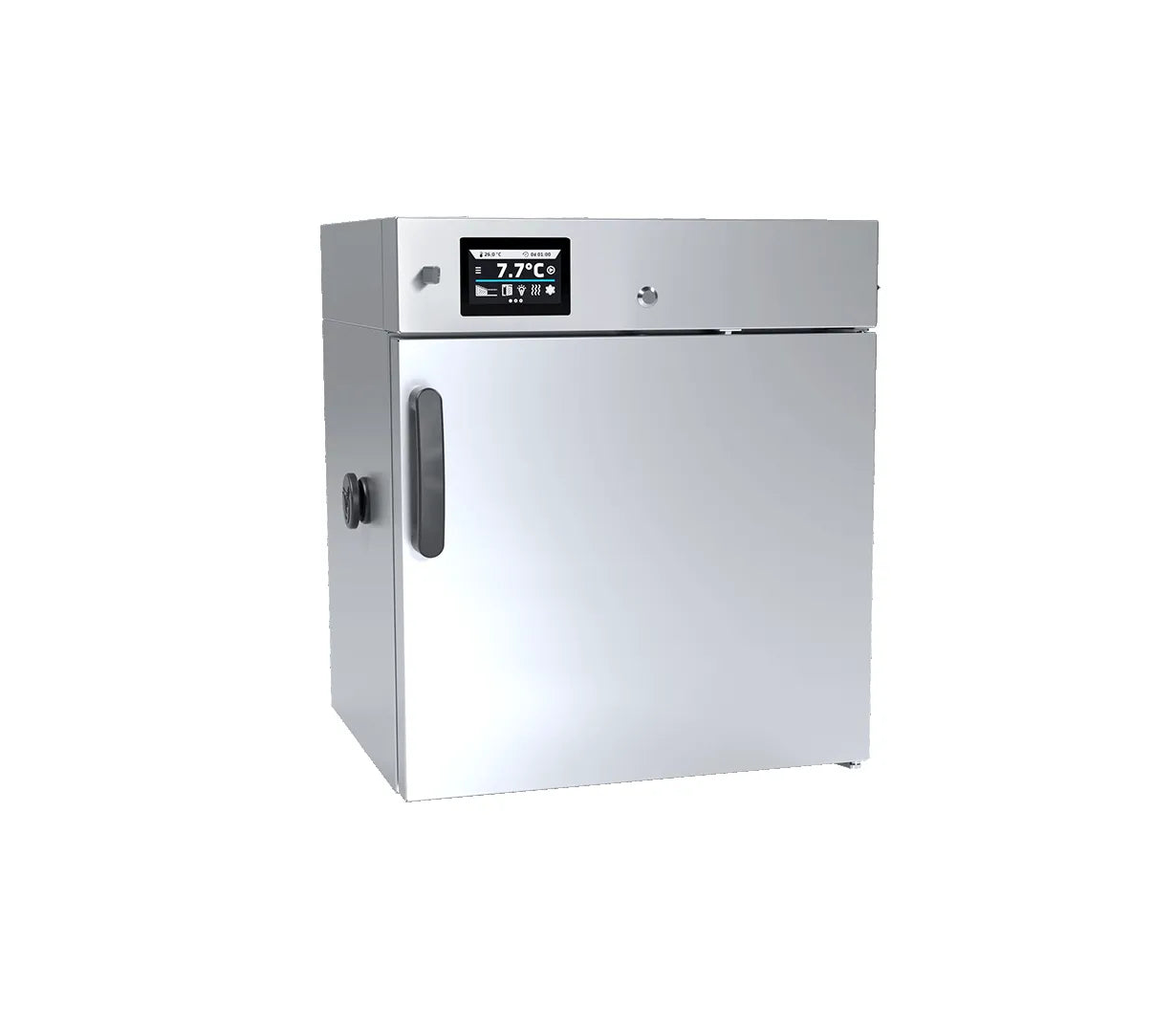

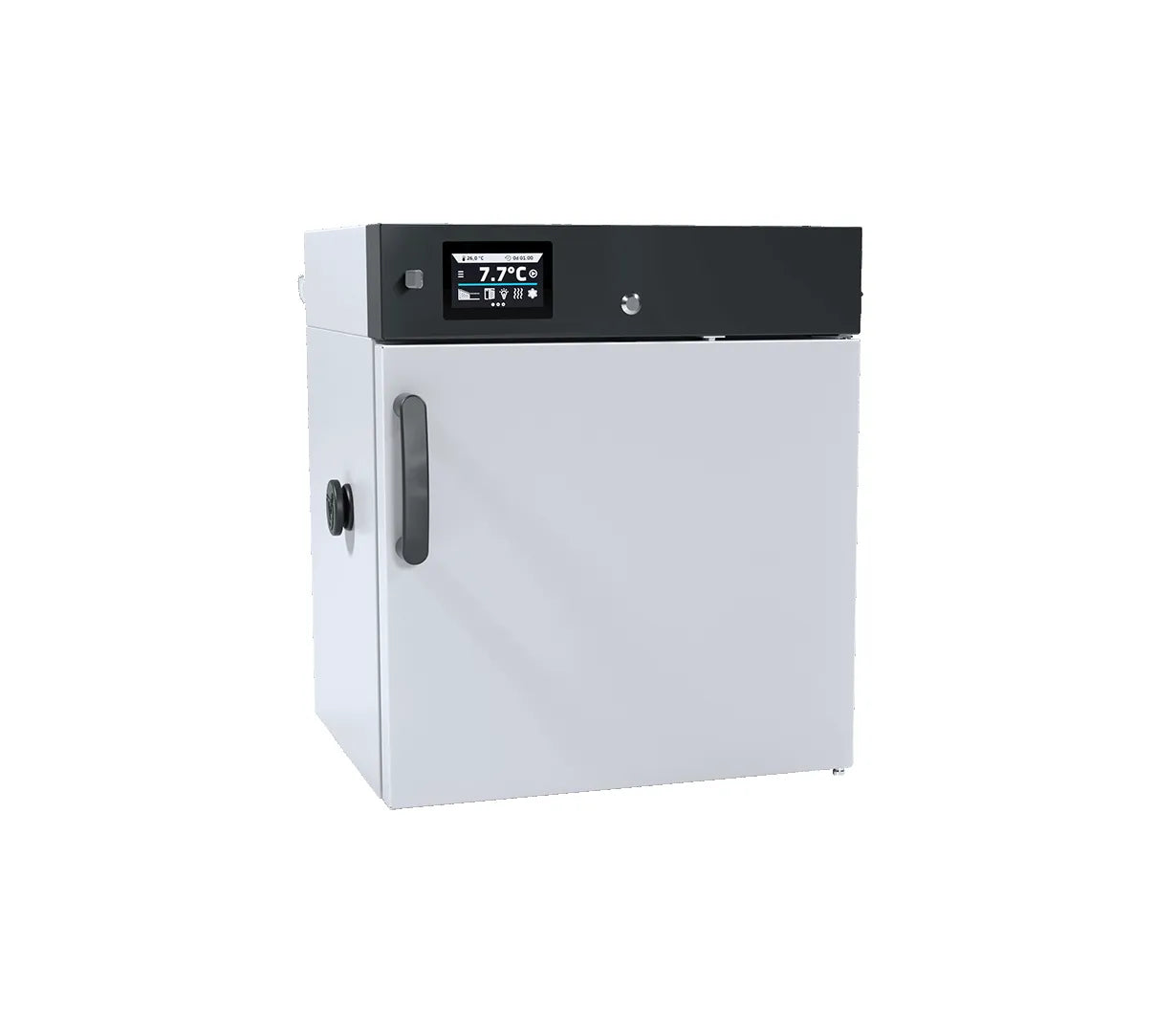

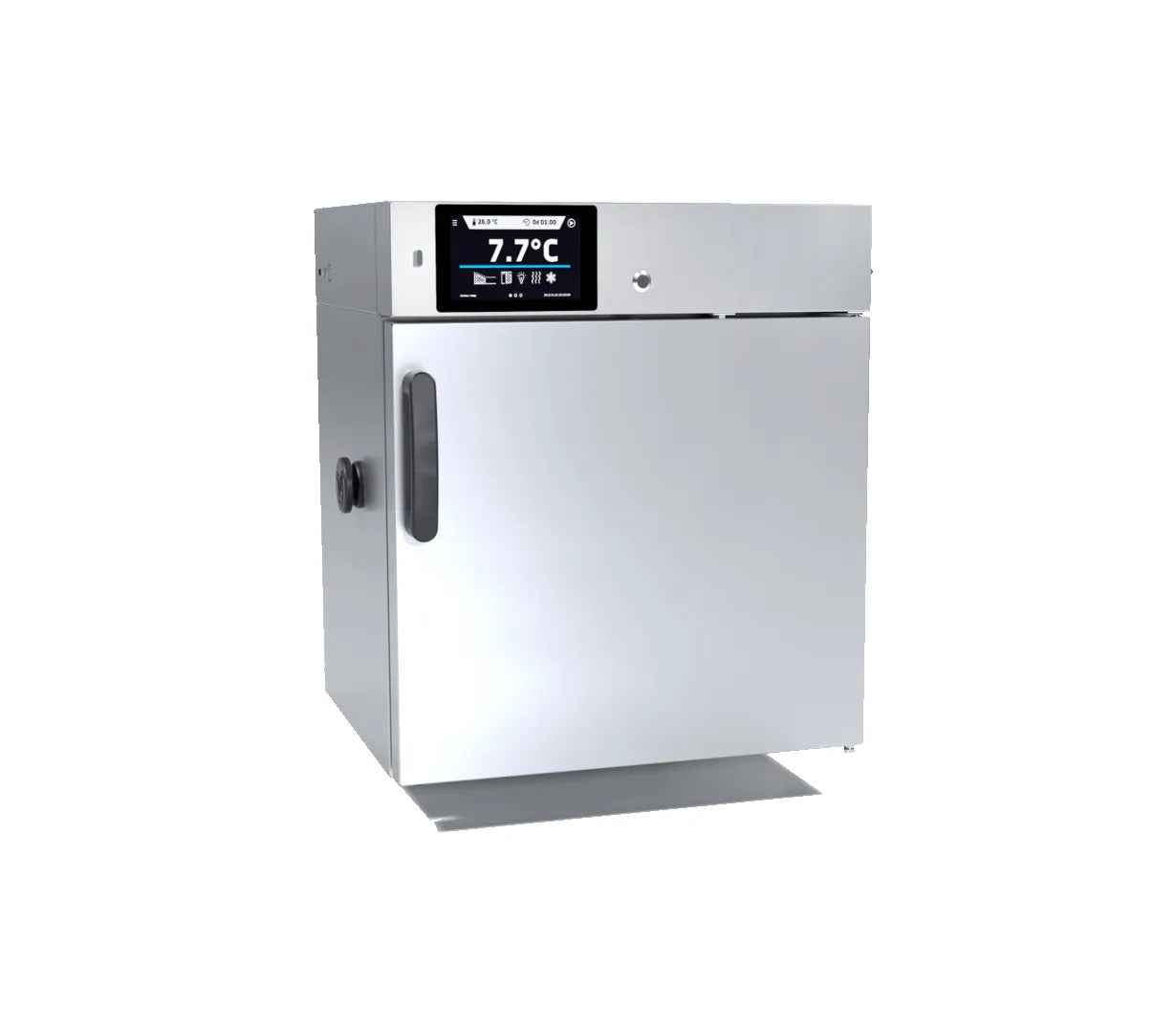

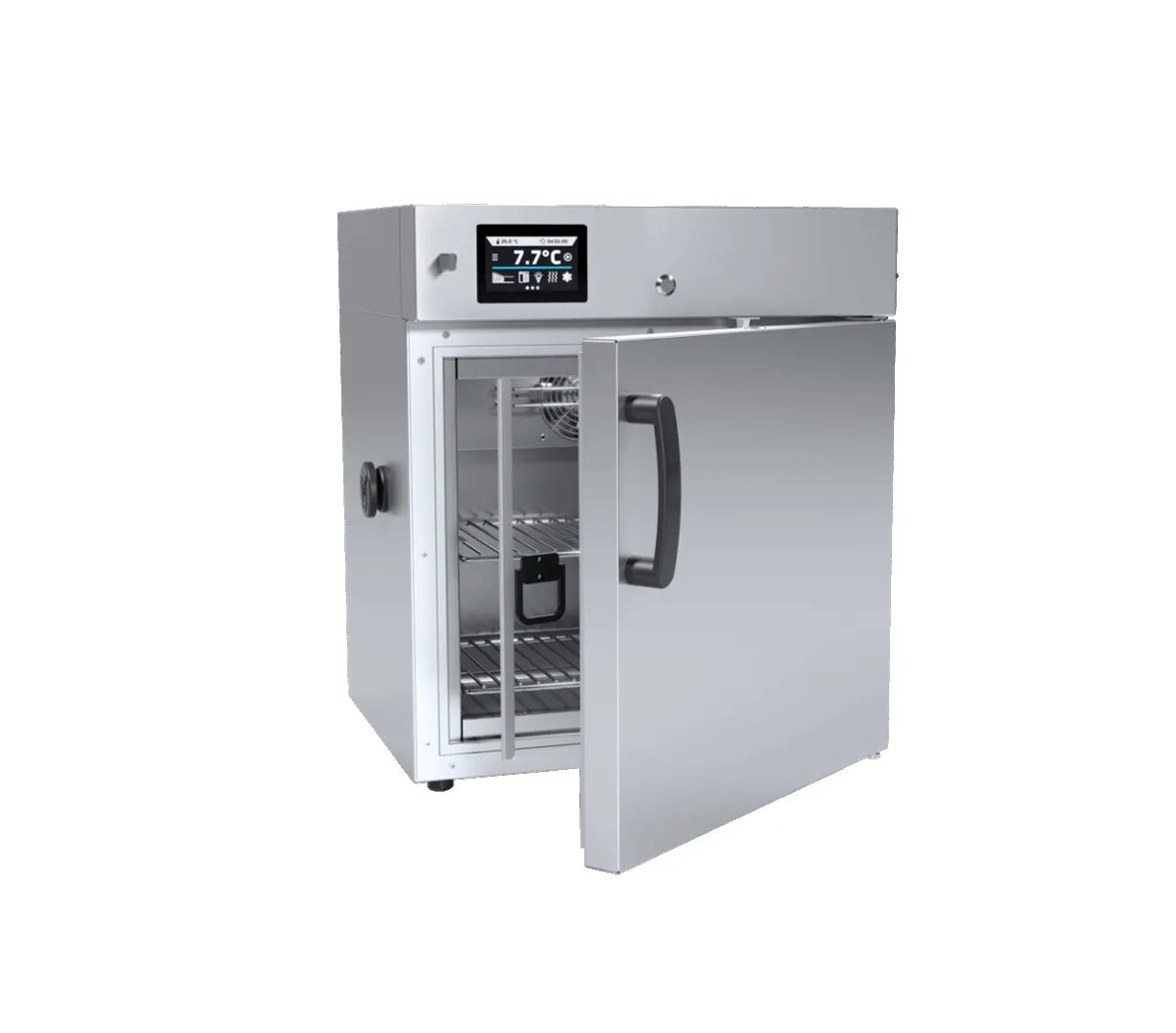

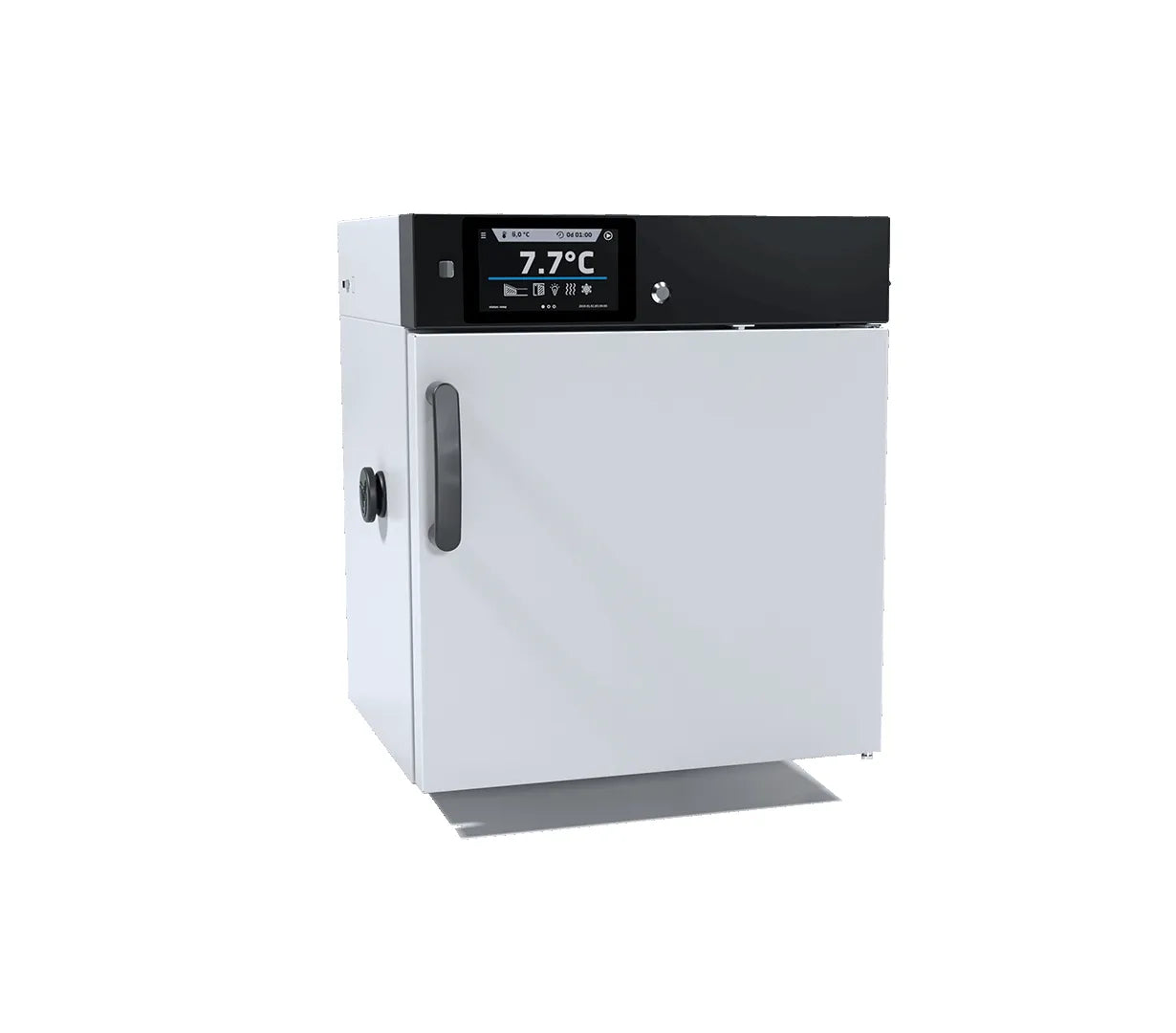

Laboratory refrigerator POL-EKO CHL 1 – 74 L, 0…+15 °C

Laboratory refrigerator POL-EKO CHL 1 – 74 L, 0…+15 °C

74 L · 0…+15 °C · forced air circulation

Regular price €1.455,00
Regular price €1.455,00 Sale price €1.455,00
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:05-1020-0160-0000001

Housing
Controller
Interior
Quantity
  • Authorised POL-EKO distributor in Finland
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 4–6 weeks

Warranty: 2 years

The POL-EKO CHL 1 is a laboratory refrigerator for storing temperature-sensitive samples, reagents and culture media at 0…+15 °C. It has a 74 L chamber with 54 L of working capacity.

Technical data

Product category
Laboratory refrigerator
Air circulation
forced
Chamber volume
74 L
Working capacity
54 L
Temperature range
0…+15 °C
Temperature resolution
0,1 °C
Temperature variation at +4 °C
+/- 0,7°C
Temperature fluctuation at +4 °C
+/- 0,4°C
Controller
microprocessor PID
Display
4.3" full colour touch screen (SMART) / 7" full colour touch screen (SMART PRO)
Temperature protection
class 1.0 to DIN 12880 (SMART); class 3.2 to DIN 12880 (SMART PRO); class 3.2 optional for SMART
Door
solid / glass or double (option)
Shelves (standard / max)
2 | 2
Maximum load
20 kg
External dimensions (W × D × H)
690 x 560 x 660 mm
External width
560 mm
External depth
690 mm
External height
660 mm
Internal width
430 mm
Internal width (extra)
470 mm
Internal depth
300 mm
Internal depth (extra)
360 mm
Internal height
430 mm
Weight
43 kg
Voltage
230 V
Power consumption
250 W
Refrigerant
R1234ze / GWP=7
View full details

Pol-Eko

Laboratory refrigerator POL-EKO CHL 1

The POL-EKO CHL 1 is a laboratory refrigerator for storing temperature-sensitive samples, reagents and culture media at 0…+15 °C. It has a 74 L chamber with 54 L of working capacity.
  • Chamber volume74 L
  • Working capacity54 L
  • Temperature range0…+15 °C
  • Warranty2 years
Request a quote
POL-EKO CHL 1 laboratory refrigerator, 74 L – image 2

Key features

  • Stable 0…+15 °C

    Forced air circulation keeps temperature variation within ±0.7 °C at +4 °C.

  • SMART or SMART PRO control

    4.3" or 7" touch screen that works with gloves on, data logging, USB and LAN – plus Wi-Fi with SMART PRO.

  • Low-GWP refrigerant

    R1234ze with a global warming potential (GWP) of 7.

  • Alarms and door lock

    Visual and sound alarms, open-door alarm, door lock and internal LED lighting.

All features

  • Operating range and capacity: 0…+15 °C; 74 L chamber / 54 L working capacity
  • Temperature performance at +4 °C: fluctuation ±0.4 °C; variation ±0.7 °C
  • Air circulation: forced for improved temperature uniformity
  • Controller: microprocessor PID; SMART 4.3" or SMART PRO 7" full-colour touchscreen
  • Temperature protection: class 1.0 to DIN 12880 with SMART; class 3.2 with SMART PRO (class 3.2 optional for SMART)
  • Data logging: measurement and event logging
  • Connectivity: LAN and USB; Wi-Fi with SMART PRO
  • LabDesk PC software: included with SMART PRO; optional with SMART
  • Quality control protocol: supplied for +4 °C
  • Access port: Ø30 mm for an external temperature sensor
  • Door: solid external door as standard; glass or additional internal glass-door configurations available as options
  • Shelves: 2 standard / 2 maximum; max. shelf load 10 kg per shelf; max. unit workload 20 kg
  • Interior: stainless steel DIN 1.4016 (Comfort) or corrosion-resistant stainless steel DIN 1.4301 (Premium)
  • Housing: powder-coated sheet or polished stainless steel, depending on configuration
  • Safety and convenience: open-door alarm, door lock and internal LED lighting; automatic defrosting available with PLUS option
  • Refrigerant: R1234ze / GWP 7
  • Warranty: 24 months

Specifications

Product categoryLaboratory refrigerator
Air circulationforced
Chamber volume74 L
Working capacity54 L
Temperature range0…+15 °C
Temperature resolution0,1 °C
Temperature variation at +4 °C+/- 0,7°C
Temperature fluctuation at +4 °C+/- 0,4°C
Controllermicroprocessor PID
Display4.3" full colour touch screen (SMART) / 7" full colour touch screen (SMART PRO)
Temperature protectionclass 1.0 to DIN 12880 (SMART); class 3.2 to DIN 12880 (SMART PRO); class 3.2 optional for SMART
Doorsolid / glass or double (option)
See all specifications
Shelves (standard / max)2 | 2
Maximum load20 kg
External dimensions (W × D × H)690 x 560 x 660 mm
External width560 mm
External depth690 mm
External height660 mm
Internal width430 mm
Internal width (extra)470 mm
Internal depth300 mm
Internal depth (extra)360 mm
Internal height430 mm
Weight43 kg
Voltage230 V
Power consumption250 W
RefrigerantR1234ze / GWP=7

Controller comparison

SMART or SMART PRO controller?

POL-EKO devices are available with two controllers. Both hold the set temperature precisely and record measurements. SMART PRO is built for laboratories that need a larger screen, user management, longer programs and full documentation.

POL-EKO SMART

SMART

4.3" touch screen · LAN · 5 programs

POL-EKO SMART PRO

SMART PRO

7" touch screen · LAN and Wi-Fi · 40 programs · 5 users

Display and connectivity
SMART
SMART PRO
Display
4.3" touch screen
7" touch screen
Network
LAN
LAN and Wi-Fi
USB
Data log and event log recording
Data log, event log and program upload
Keyboard
Numeric
Alphanumeric
Main window
Dashboard: all essential data in one view
Dashboard: all essential data in one view
Programs and users
SMART
SMART PRO
Users

5
User roles

User / Admin / Super-Admin
Programs
5
40
Program name
Assigned number
Custom
Priority
Parameters
Parameters, time
Segments
6
100
Schedules

10 schedules
Light control
ON/OFF only (FOT)
Yes (FIT)
Show full comparison
Data and monitoring
SMART
SMART PRO
Data log
10,000 measurements, 6 months
10,000 measurements, 12 months
Event log
Statistics
Current cycle only
Every segment and program cycle
Chart

Quick Note

Custom text messages
Alarm Bar
Quick Change
Device name
Fixed (serial number)
Editable
Software
SMART
SMART PRO
PC software
LabDesk (option)
LabDesk
21 CFR Part 11 software

LabDesk CFR (option)

Source: POL-EKO. Controller languages: PL, EN, DE, CZ, IT, PT, UA, ES, FR.

Accessories and options

View all accessories (16)

Brochures and downloads

More information and FAQ

Who is the POL-EKO CHL 1 for?

The CHL 1 is the smallest model in the series: a 74 L chamber, 54 L of working capacity and a height of only 66 cm, so it can be placed on a laboratory bench. It suits a single workstation or a small group storing reagents and samples.

The CHL 1 is a compact model that fits on a laboratory bench. Forced air circulation and microprocessor PID control keep the temperature stable: variation is ±0.7 °C at +4 °C. The compressor runs according to the chamber temperature, and the refrigerant is R1234ze with a GWP of 7.

Which CHL size do I need?

Choose by working capacity, which is the usable volume on the shelves. The CHL series ranges from 54 L (CHL 1) to 1,479 L (CHL 1450). Compare all sizes on the laboratory refrigerators page.

What is the difference between SMART and SMART PRO?

Both keep the set temperature and record measurements. SMART PRO adds a larger 7" screen, Wi-Fi and a higher temperature protection class.
