Laboratory refrigerator CHL 3 - chamber capacity 200 litres

Laboratory refrigerator CHL 3 - chamber capacity 200 litres

€1.690,00 VAT 0%
€1.690,00 €1.690,00 VAT 0%
Sale Sold out
Shipping calculated at checkout.

05-1020-0360-0000001

Estimated delivery time: 4-6 weeks

Warranty: 2 years

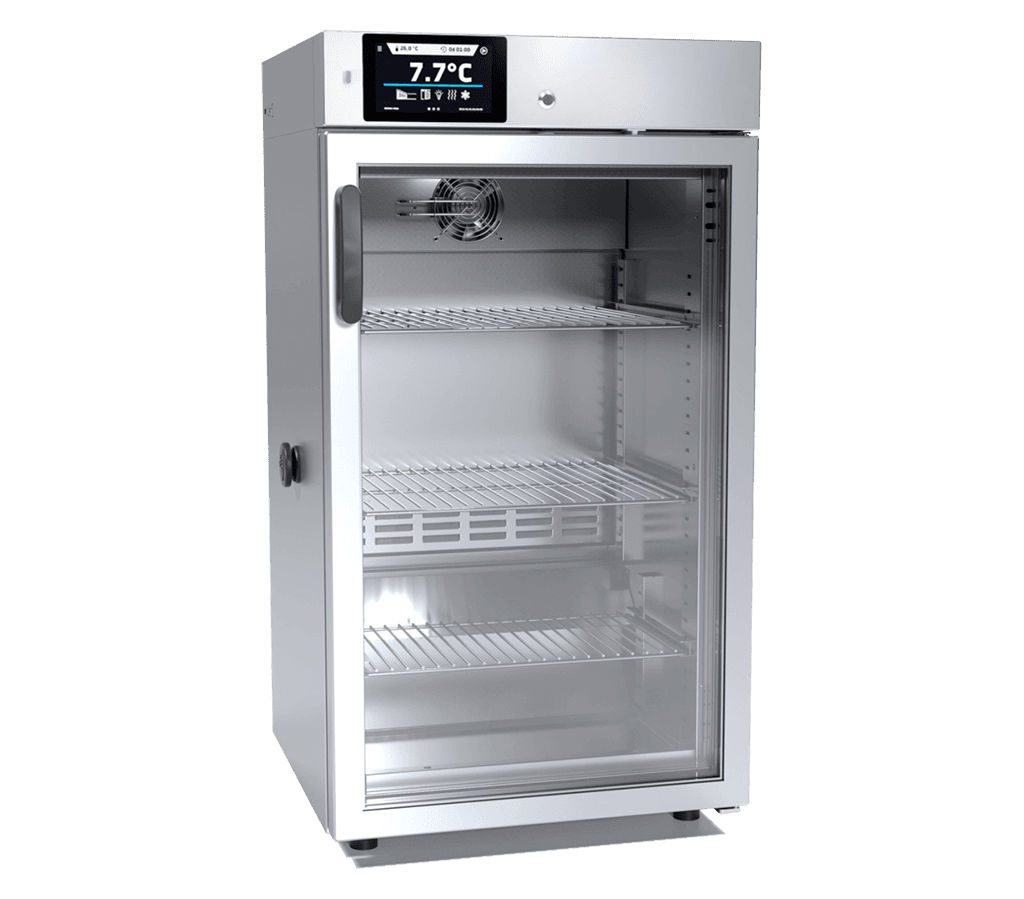

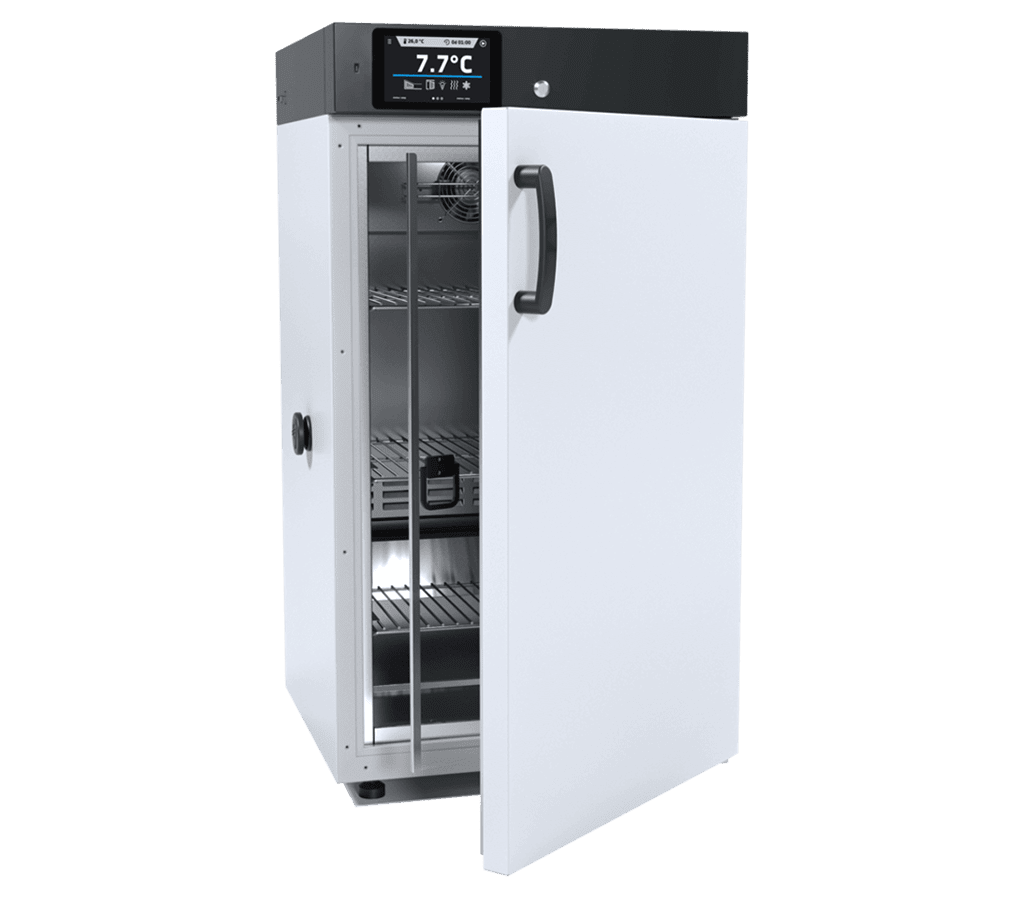

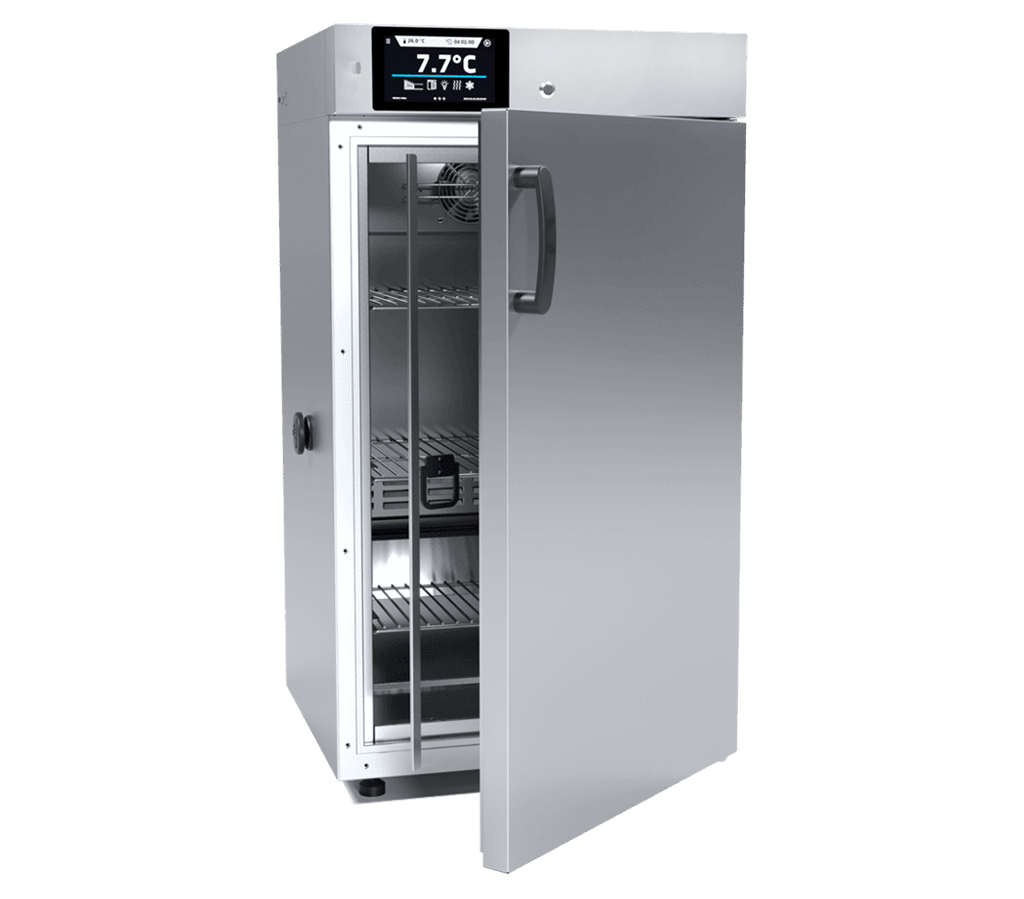

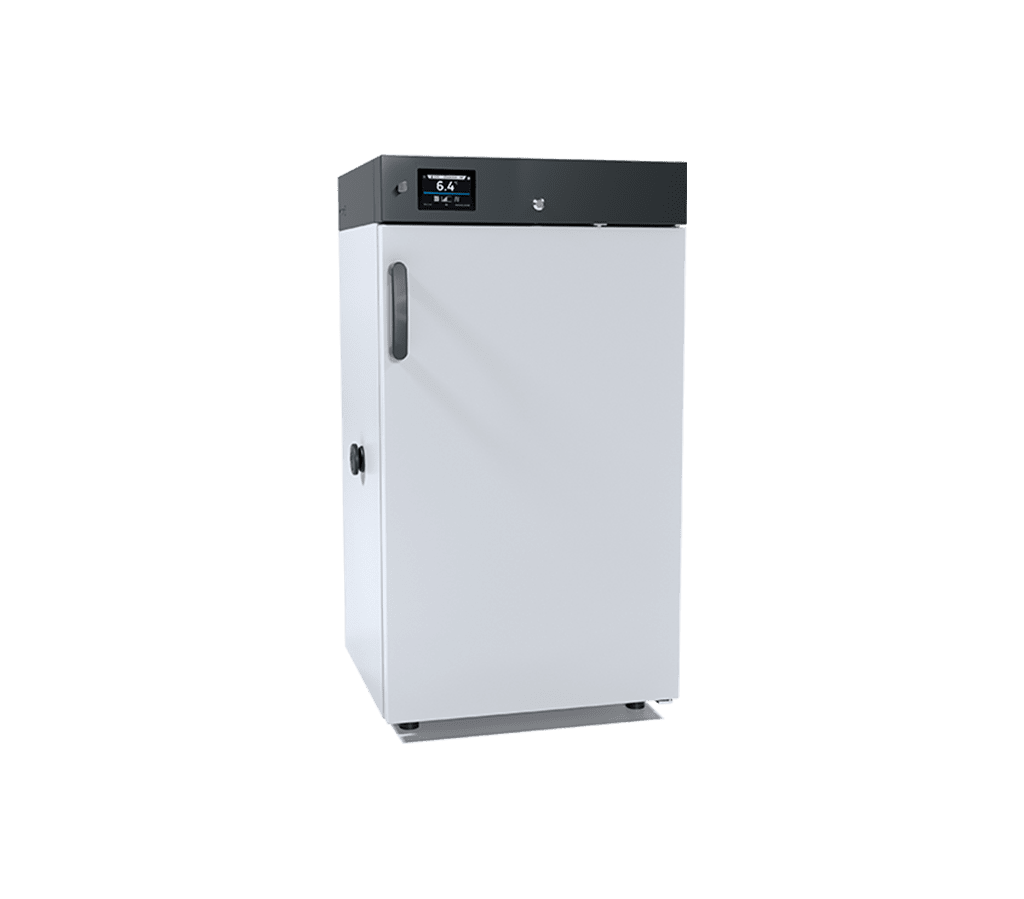

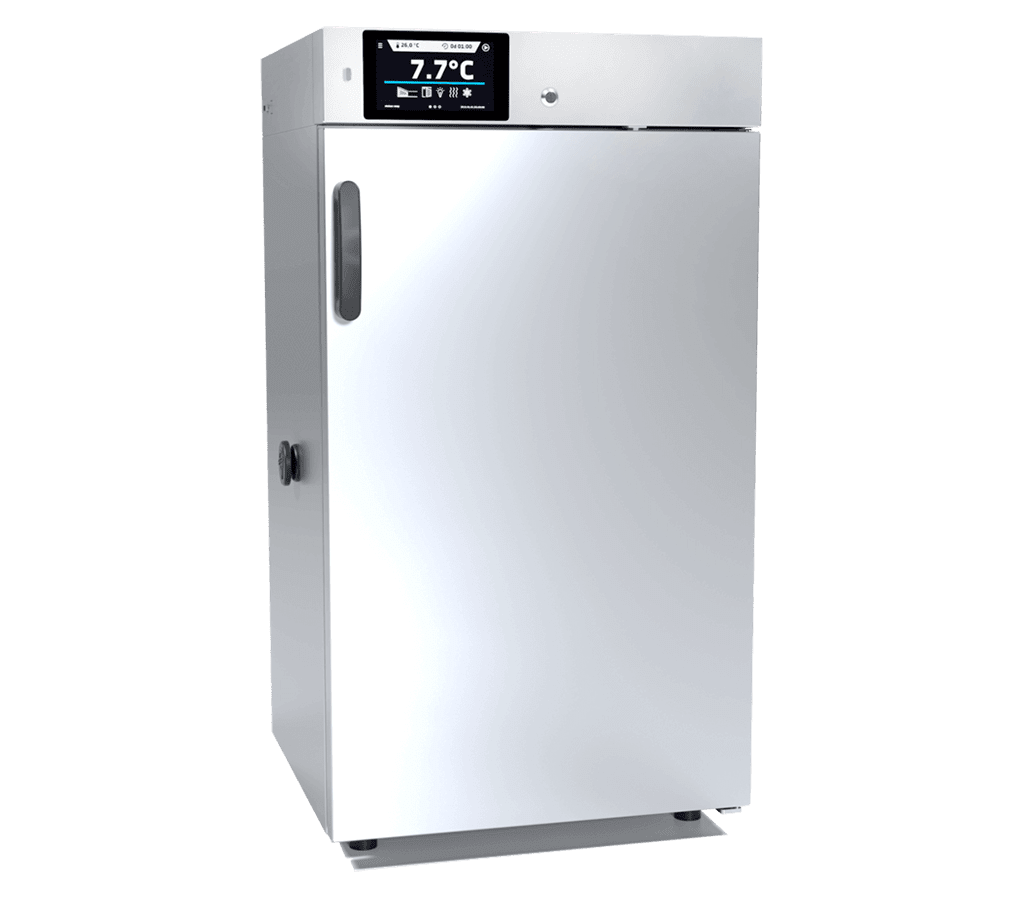

The POL-EKO CHL 3 is a laboratory refrigerator designed for reliable refrigerated storage of temperature-sensitive samples, reagents and laboratory materials in research, quality-control and routine laboratory applications. It operates from 0…+15 °C and provides a 208 L chamber with 171 L of working capacity.

Forced air circulation and microprocessor PID control help maintain stable and uniform conditions throughout the chamber. At +4 °C, temperature fluctuation is ±0.4 °C and temperature variation is ±0.7 °C. The CHL 3 is available with SMART 4.3" or SMART PRO 7" touchscreen control, with data logging and connectivity for laboratory documentation.

Key highlights:

  • Temperature range: 0…+15 °C; resolution: 0.1 °C
  • Performance at +4 °C: fluctuation ±0.4 °C; variation ±0.7 °C
  • Capacity: 208 L chamber / 171 L working capacity
  • Forced air circulation with precise microprocessor PID control
  • SMART 4.3" or SMART PRO 7" touchscreen control with data logging and connectivity

FEATURES

  • Operating range and capacity: 0…+15 °C; 208 L chamber / 171 L working capacity
  • Temperature performance at +4 °C: fluctuation ±0.4 °C; variation ±0.7 °C
  • Air circulation: forced for improved temperature uniformity
  • Controller: microprocessor PID; SMART 4.3" or SMART PRO 7" full-colour touchscreen
  • Temperature protection: class 1.0 to DIN 12880 with SMART; class 3.2 with SMART PRO (class 3.2 optional for SMART)
  • Data logging: measurement and event logging
  • Connectivity: LAN and USB; Wi-Fi with SMART PRO
  • LabDesk PC software: included with SMART PRO; optional with SMART
  • Quality control protocol: supplied for +4 °C
  • Access port: Ø30 mm for an external temperature sensor
  • Door: solid external door as standard; glass or additional internal glass-door configurations available as options
  • Shelves: 3 standard / 4 maximum; max. shelf load 10 kg per shelf; max. unit workload 40 kg
  • Interior: stainless steel DIN 1.4016 (Comfort) or corrosion-resistant stainless steel DIN 1.4301 (Premium)
  • Housing: powder-coated sheet or polished stainless steel, depending on configuration
  • Safety and convenience: open-door alarm, door lock and internal LED lighting; automatic defrosting available with PLUS option
  • Refrigerant: R1234ze / GWP 7
  • Warranty: 24 months

TECHNICAL DATA

Product category
Laboratory refrigerator
Air convection
forced
Chamber volume
208 L
Working capacity
171 L
Controller
microprocessor PID
Display
4.3" full colour touch screen (SMART) / 7" full colour touch screen (SMART PRO)
Temperature range
0…+15°C
Temperature resolution every
0,1 °C
Temperature variation at 4°C
+/- 0,7°C
Temperature protection
class 1.0 to DIN 12880 (SMART); class 3.2 to DIN 12880 (SMART PRO); class 3.2 optional for SMART
Door
solid / glass or double (option) / additional internal glass door (option)
Max unit workload
40 kg
External dimensions (W × D × H)
650 x 610 x 1100 mm
External depth
650 mm
External height
1100 mm
Internal width
480 mm
Internal width extra
520 mm
Internal depth
420 mm
Internal depth extra
480 mm
Internal height
860 mm
Weight
72 kg
Voltage
230 V
Power consumption
250 W
Refrigerant
R1234ze / GWP=7

BROCHURES

PDF preview

CHL 3 Smart en

PDF brochure Open / download
PDF preview

CHL 3 Smart PRO en

PDF brochure Open / download
PDF preview

Instruction_manual_ST_ST_BD_CHL_ILW_SMART

PDF brochure Open / download
PDF preview

Instruction_manual_ST_CHL_ILW_SMART_PRO

PDF brochure Open / download
View full details

Options and accessories for laboratory refrigerator CHL 500

View all

Pol-Eko

SMART controller

SMART – controller which will be a direct successor of the BASIC and STD (standard) controllers, currently found in the ST cooled incubators, CHL laboratory refrigerators, ZL laboratory freezers, ZLN-UT ultra-low freezers, as well as the IL cooled incubators, CL laboratory incubators,SL drying ovens and SR laboratory sterilizers.

Laboratory refrigerator CHL 700 - chamber capacity 625 litres Pol-Eko

Advantages of the Smart controller:

  • 4,3", clear, full colour touch screen
  • USB and LAN ports for data transfer
  • multi-segment time and temperature programs
  • loop function up to 255 times or endless
  • adjustable start delay feature
  • adjustable ramps
  • recording of min, average and max temperature value for each segment
  • overview of set and current parameters while operating
  • operating in temperature or time priority mode
  • fan speed control in the range of 0 … 100% or 10% … 100% (depending on the chamber capacity) except ST/CHL/ZL/ILP
  • temperature sensor fail alarm
  • possibility of temperature calibration by the User
  • power failure control system (program continued after restoring power)
  • visual and sound alarm
  • internal memory for programs and data storage
  • operating with gloves on
  • event registry
  • user manual for direct download
  • ability to buy a license for LabDesk software
  • Quick change of program parameters
  • Alarm Ba

Pol-Eko

SMART PRO controller

The brand new Smart PRO controllers are direct followers to the TOP+ controllers and will be available for the KK climatic chambers, IL cooled incubators, SL drying ovens, CL laboratory incubators, as well as the ST cooled incubators, CHL laboratory refrigerators, ZL laboratory freezers and ZLN-UT ultra-low freezers.

Advantages of the Smart PRO controller:

  • large (7"), clear, full colour touch screen
  • LAN, USB ports and WiFi for communication and data transfer
  • multi-segment time and temperature programs
  • loop function up to 255 times or endless
  • adjustable start delay feature
  • adjustable ramps
  • recording of min, average and max temperature value for each segment
  • operating in temperature or time priority mode
  • fan speed control in the range of 0 … 100% or 10% … 100% (depending on the chamber capacity); and 50…100% for ST/CHL/ZL, except ILP
  • temperature sensor fail alarm
  • possibility of temperature calibration by the User
  • power failure control system (program continued after restoring power)
  • overview of data in tabular and graphic form
  • visual and sound alarm
  • administrating functions for management
  • password protected log-in
  • internal memory for programs and data storage
  • operating with gloves on
  • event registry with user notifications
  • LabDesk software and user manual for direct download
  • Alarm Bar – quick visual information about device status
  • Quick Note – user can save messages (50 characters) in Smart PRO controller memory
  • Quick Change of parameters: temperature, humidity, time, air flap and fan
