RADWAG

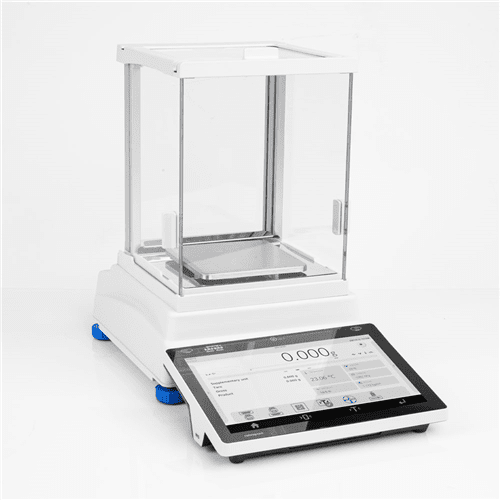

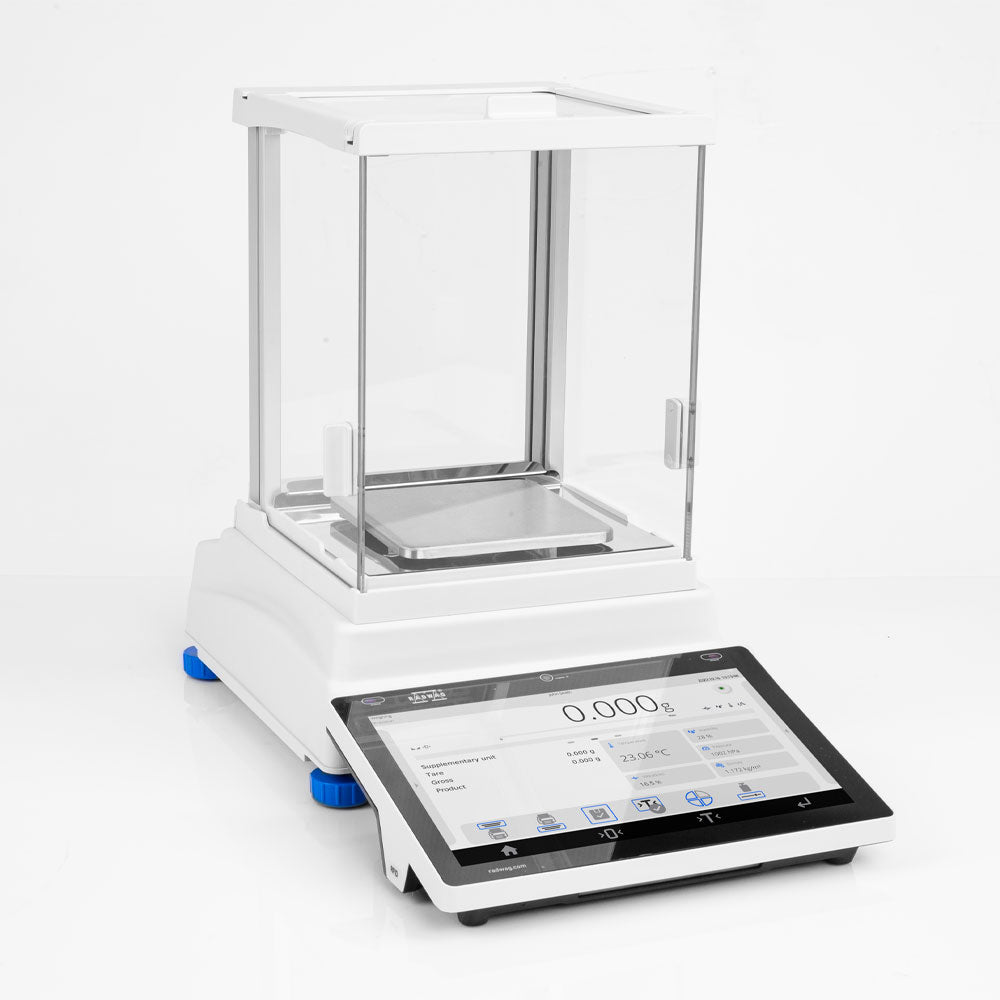

Precision balance PS 5Y

Precision balance PS 5Y

Regular price €2.236,67
Regular price €2.236,67 Sale price €2.236,67
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:WL-220-0406

Size (chamber volume)

Maximum capacity
Quantity
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 2–3 weeks

Warranty: 2 years

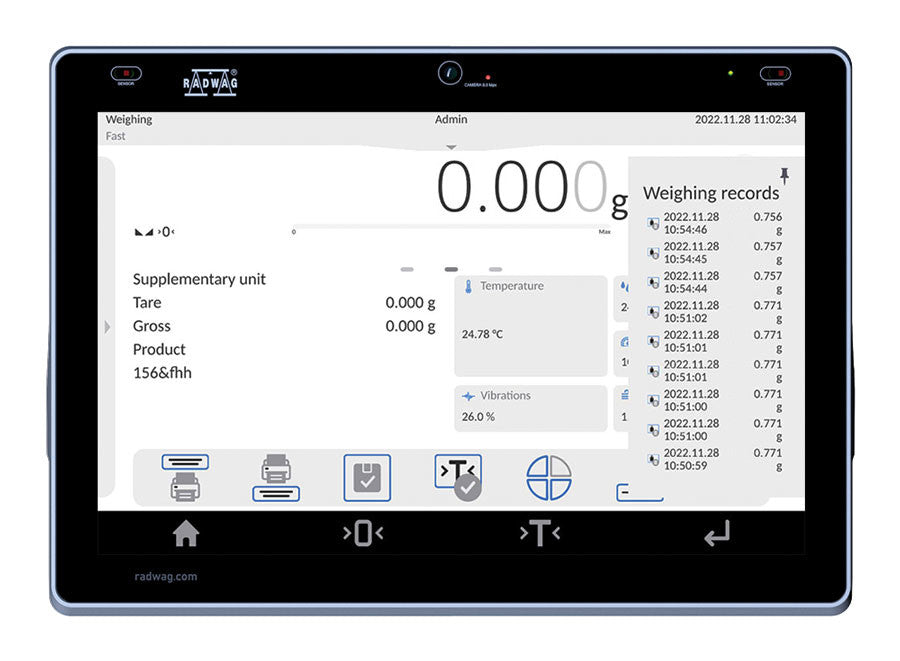

The RADWAG PS 5Y precision balances of the ELLIPSIS series offer internal automatic adjustment, LevelSENSING, voice control and digital audit trail on a 10″ touchscreen.

Key highlights:

  • Maximum capacity: 200 g – 120 kg
  • Readability: 1 mg – 10 mg

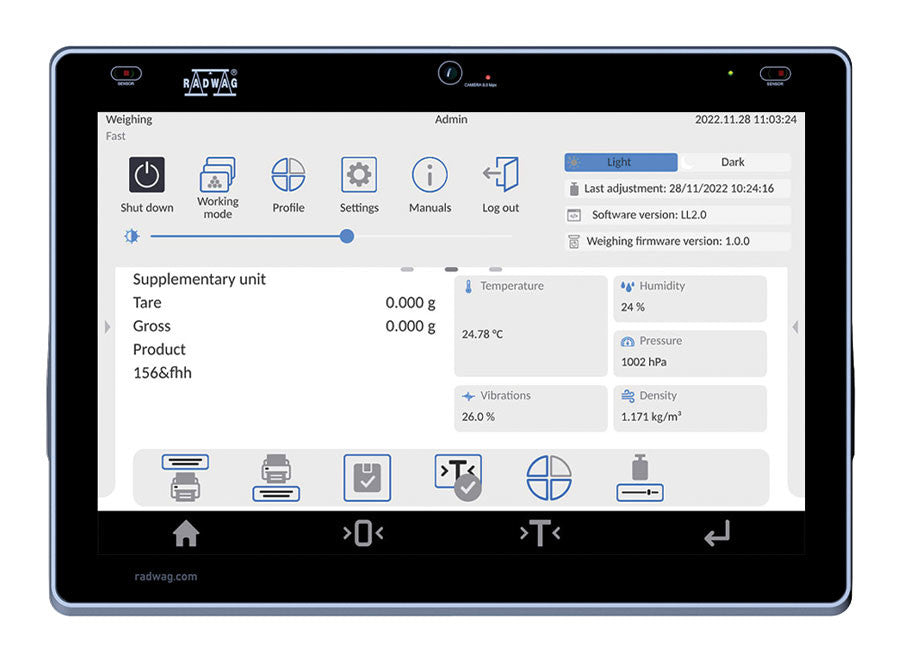

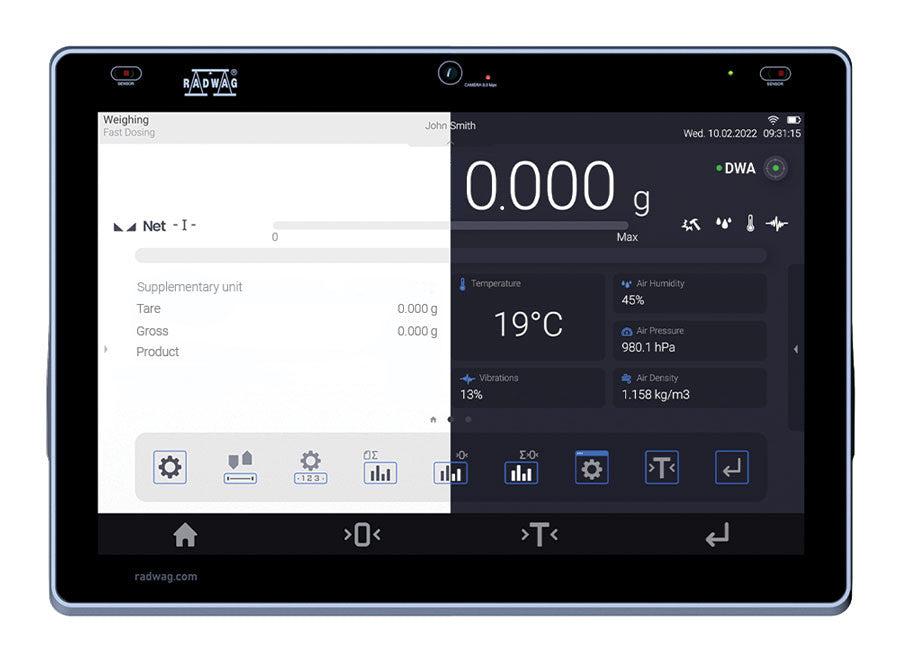

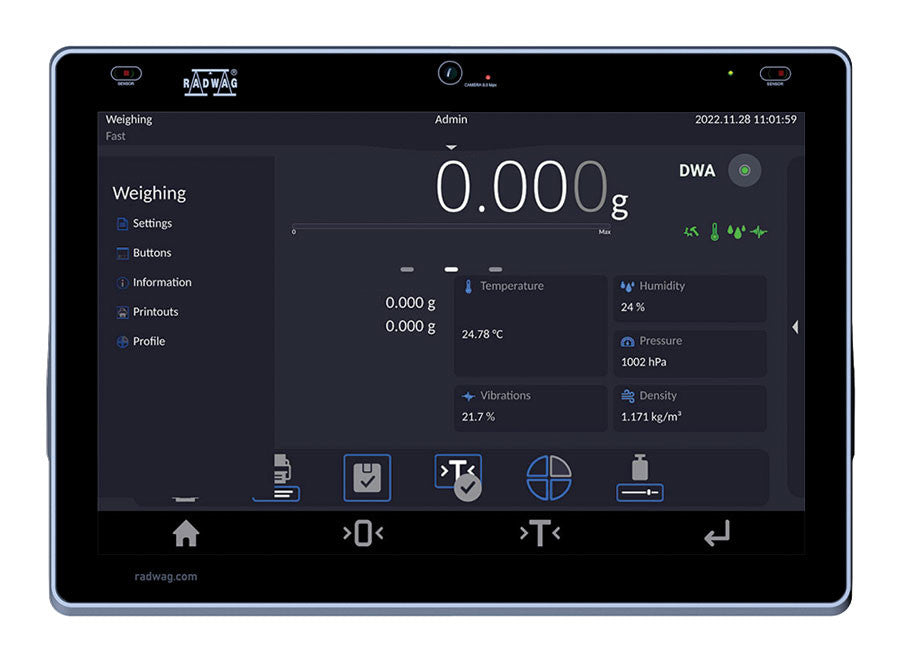

  • Display: 10″ graphic colour touchscreen
  • OIML class II; IP 43
  • 2-year warranty

Technical data

Product category
Precision balance
Maximum capacity
200 g - 120 kg
Readability
1 mg - 10 mg
Display
10″ graphic colour touchscreen
External dimensions (W × D × H)
128×128 pan (with draft shield): 258.5 × 280 × 373.6 mm; PS 3000 model: 208 × 422 × 443 mm; separate terminal 249 × 170 × 71 mm (W × D × H)
Weight
19.5 kg
Connections
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot
Power consumption
10–19 W
Standards
OIML class II; IP 43
Operating conditions
+10 – +40 °C, RH 40% – 80%
View full details

RADWAG

Precision balance PS 5Y

The RADWAG PS 5Y precision balances of the ELLIPSIS series offer internal automatic adjustment, LevelSENSING, voice control and digital audit trail on a 10″ touchscreen. Key highlights: Maximum capacity: 200 g – 120 kg Readability: 1 mg – 10 mg Display: 10″ graphic colour touchscreen OIML class II; IP 43 2-year warranty
  • Maximum capacity200 g - 120 kg
  • Readability1 mg - 10 mg
  • Warranty2 years
Request a quote
Precision balance PS 5Y RADWAG

All features

  • Series: Precision balance PS 5Y – 9 models
  • Display: 10″ graphic colour touchscreen
  • Adjustment: internal (automatic)
  • Leveling system: semi-automatic – LevelSENSING
  • Communication interface: 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot
  • Power supply: Adapter: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2.4A Balance: 12 – 15V DC 1.4A max; 9 – 17W
  • Protection class: IP 43
  • Operating temperature: +10 – +40 °C
  • Relative humidity: 40% – 80%
  • Database capacity: 7
  • Touch-free operation: 2 IR Sensors
  • Delivery components: Balance, weighing pan, grounding bumper ×1, bumper ×3, fabric dust cover, power supply

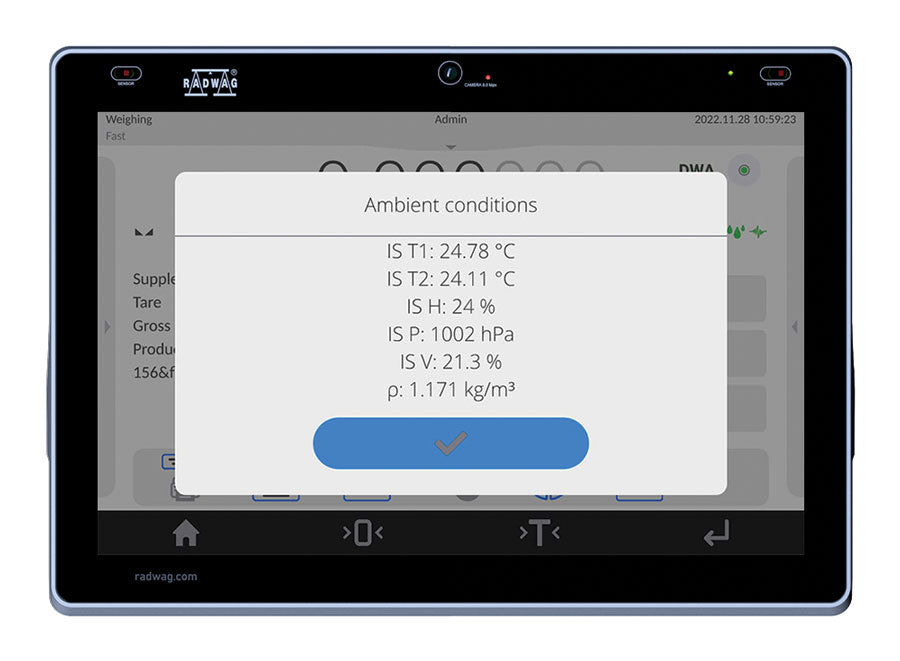

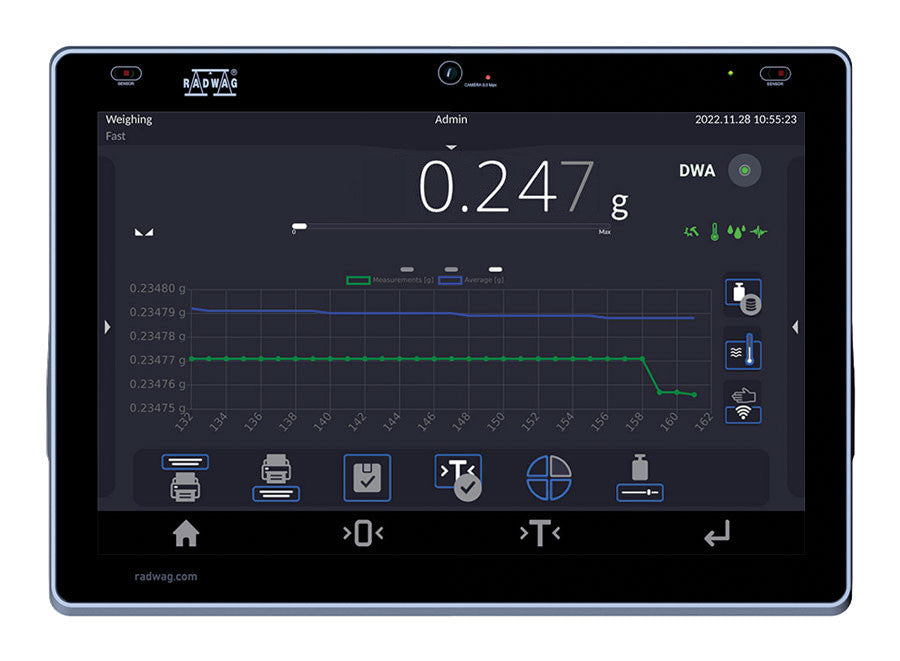

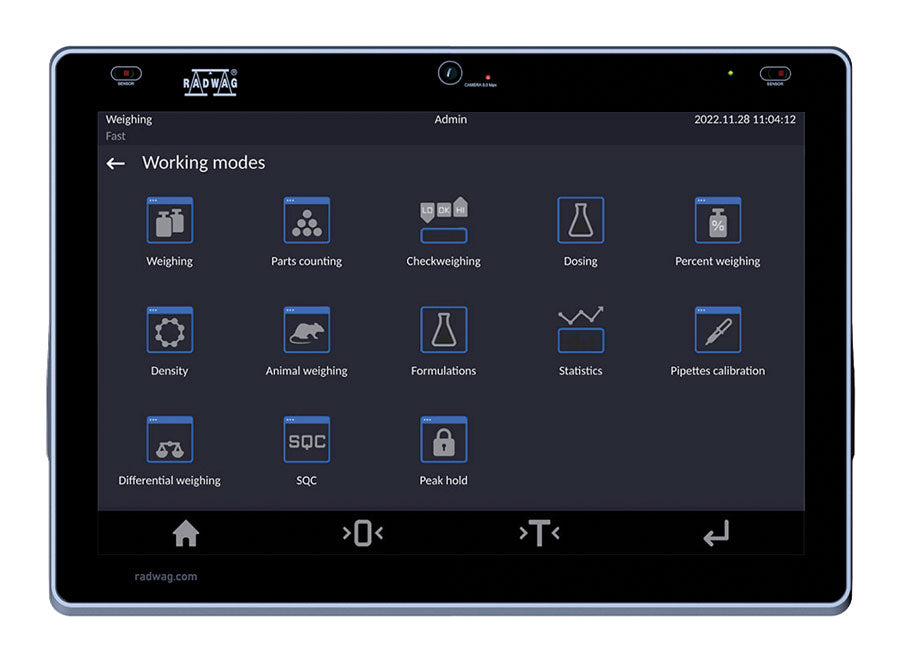

  • Functions: Autotest, Dosing, Percent Weighing, Parts counting, Newton unit, Peak hold, Formulation, Statistics, Checkweighing, IR sensors, Under-pan weighing, GLP Procedures, Animal weighing, Pipettes Calibration, Air density correction, Density determination, Ambient conditions, Differential weighing, Statistical Quality Control, Packaged Goods Control, ALIBI Memory, Wi-Fi
  • PS 1000.5Y (WL-220-0406): Max 1000 g, d = 1 mg, e = 10 mg, repeatability 1.5 mg, linearity ±3 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 1200.5Y (WL-220-0419): Max 1200 g, d = 0,01 g
  • PS 210.5Y (WL-220-0408): Max 210 g, d = 1 mg, e = 10 mg, repeatability 1 mg, linearity ±2 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 750.5Y (WL-220-0416): Max 750 g, d = 1 mg, e = 10 mg, repeatability 1.5 mg, linearity ±3 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 600.5Y (WL-220-0414): Max 600 g, d = 1 mg, e = 10 mg, repeatability 1.5 mg, linearity ±3 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 200/2000.5Y (WL-220-0418): Max 200 / 2000 g, d = 1 / 10 mg, e = 10 / 100 mg, repeatability 1 / 10 mg, linearity ±2 / 20 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 3000.5Y (WL-220-0410): Max 3000 g, d = 1 mg, repeatability 1.5 mg, linearity ±6 mg, min. weight (USP) 1.2 g, pan 128×128 mm, net weight 3.9 kg
  • PS 360.5Y (WL-220-0412): Max 360 g, d = 1 mg, e = 10 mg, repeatability 1 mg, linearity ±2 mg, min. weight (USP) 1g, pan 128×128 mm, net weight 11 kg
  • PS 5100.5Y (WL-220-0426): Max 5100 g, d = 1 mg, repeatability 1.5 mg, linearity ±5 mg, min. weight (USP) 1.6 g, pan ø132 mm, net weight 19.5 kg

Specifications

Product categoryPrecision balance
Maximum capacity200 g - 120 kg
Readability1 mg - 10 mg
Display10″ graphic colour touchscreen
External dimensions (W × D × H)128×128 pan (with draft shield): 258.5 × 280 × 373.6 mm; PS 3000 model: 208 × 422 × 443 mm; separate terminal 249 × 170 × 71 mm (W × D × H)
Weight19.5 kg
Connections2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot
Power consumption10–19 W
StandardsOIML class II; IP 43
Operating conditions+10 – +40 °C, RH 40% – 80%

Accessories and options

Brochures and downloads

Buying and service

  • Who installs and services the equipment?

    Installation, commissioning, maintenance, calibration and validation are carried out by our service partner Metesa Finland Oy. Service contracts are also available. Services are ordered separately – request a quote.

  • Are delivery and installation included in the price?

    No. Shipping costs are calculated at checkout. Delivery, carrying into place and installation are not included in the product price, but can be ordered as additional services.

  • How can I pay?

    You can pay by invoice or credit card. All prices are shown excluding VAT (VAT 0%).
