Frimed

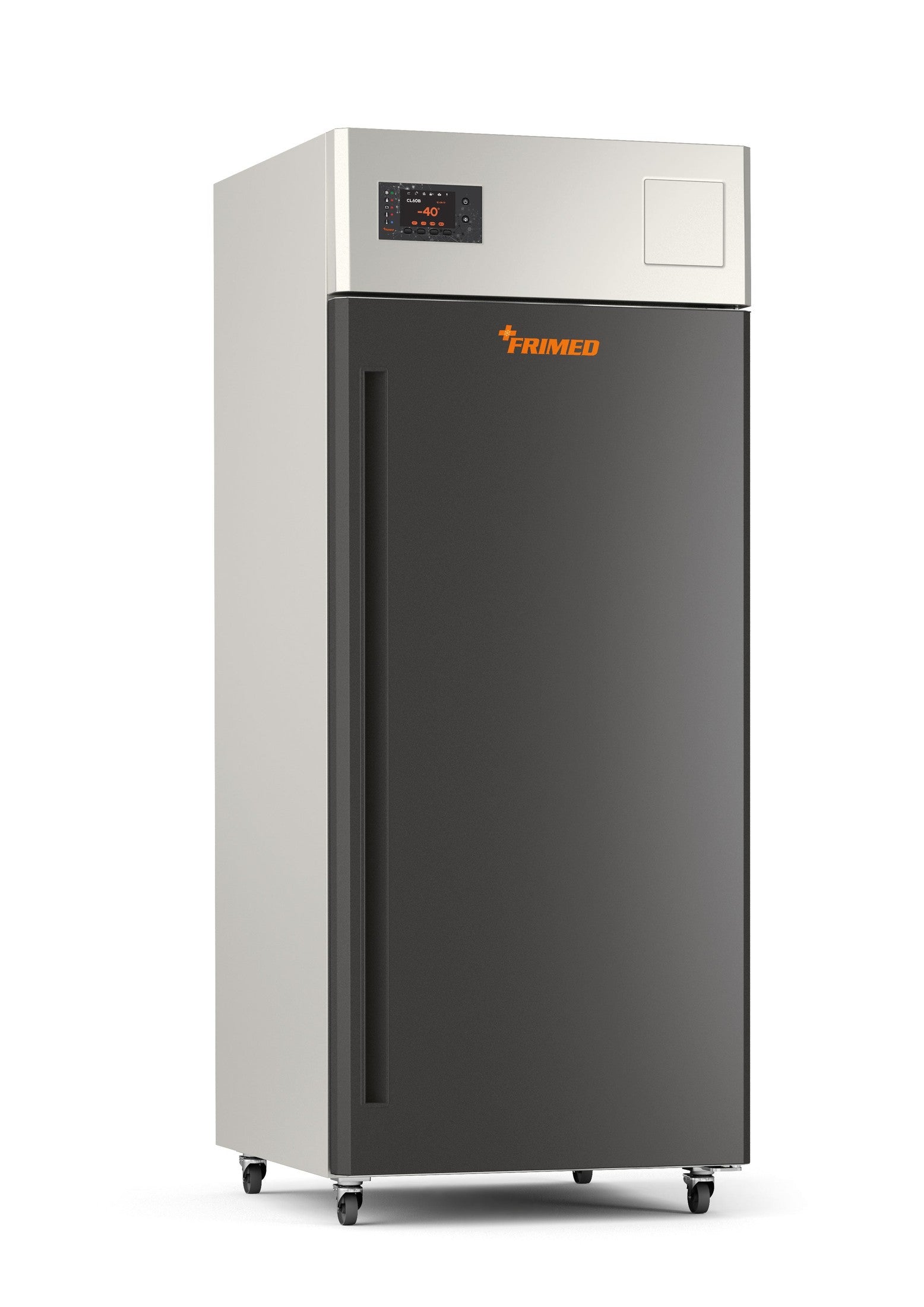

Plasma freezer CL60B/PF

Plasma freezer CL60B/PF

Regular price €6.306,00
Regular price €6.306,00 Sale price €6.306,00
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:CL60B/PF-LGK2

Controller
Shelf option
Door opening
Quantity
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 4–6 weeks

Warranty: 2 years

CL60B/PF Model (-40°C)

CL60BPFL225PCS - Digital control panel LGK-2

CL60BPFA425PCS - Full touch control panel TP-1

Structure

External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure.

Insulation

100 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving.

Door

Self-closing solid door, with folding magnetic gasket on four sides for perfect closing. Right hand opening or left hand on request.

Internal fittings

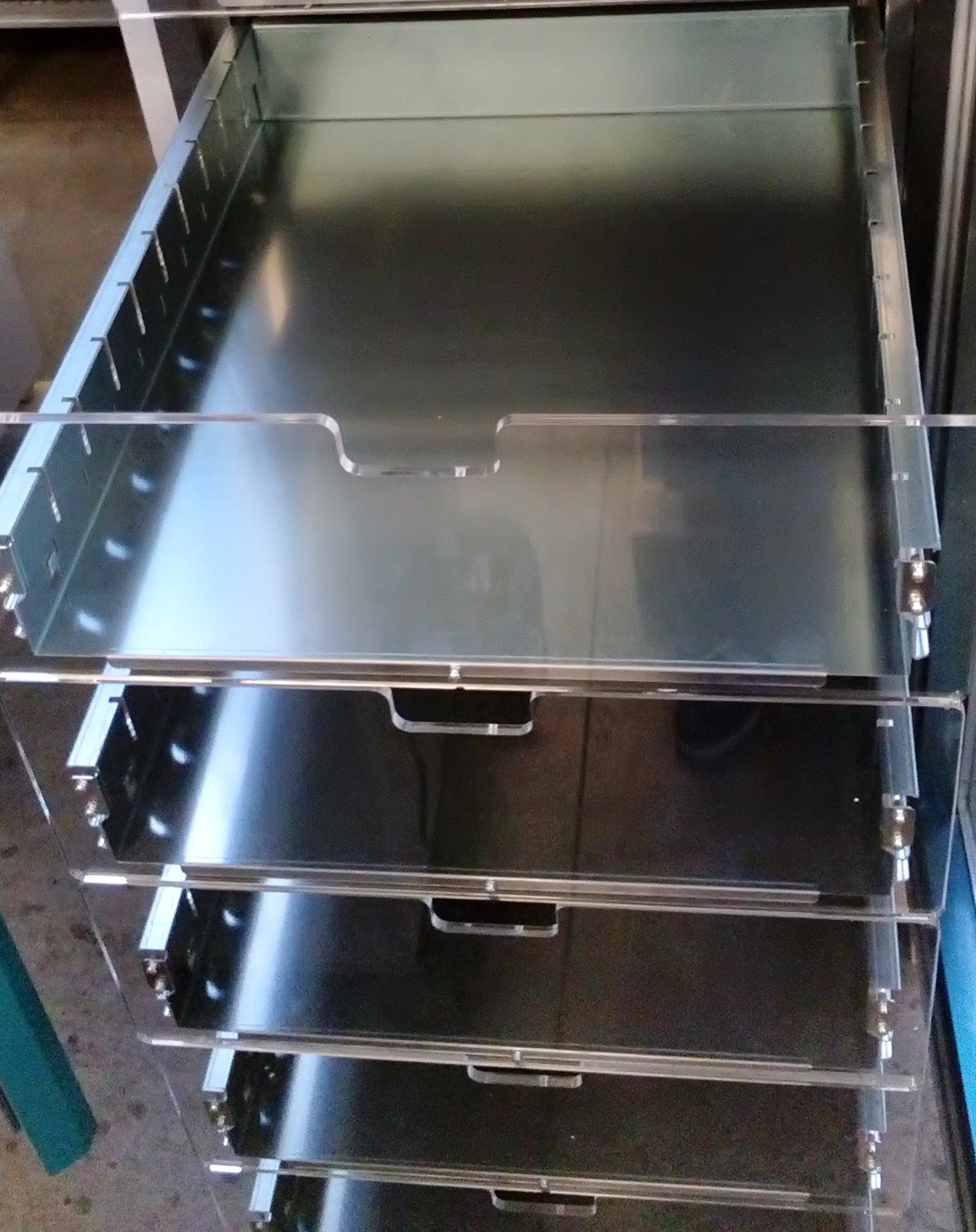

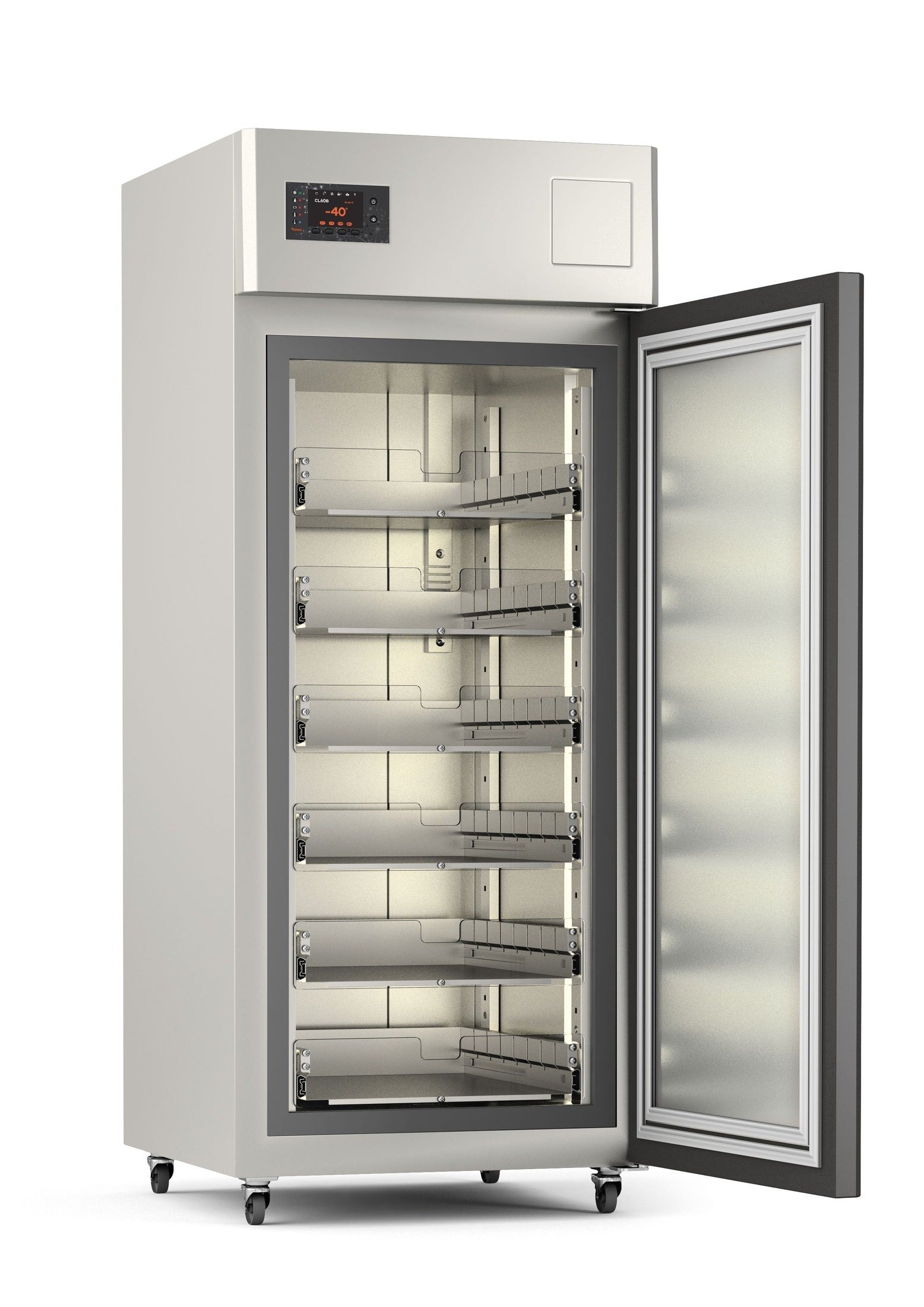

Standard equipped with 6 scotch-brite stainless steel drawers, adjustable in height, with telescopic ball-bearing slides and plexiglass frontal side. Optional plexiglass internal dividers.

Temperature range

Setting between -30°C and -42°C. Factory preset to -40°C. Digital adjustable with an increment of 0.1°C.

Refrigeration system

Completely sealed, silent and highly efficient hermetic compressor and ventilated air condenser (suitable also for tropical countries). Internal static evaporator. CFC/HCFC-free R290 refrigerant gas.

Defrosting

Manual defrosting cycle.

Capacity

600 litres - 330 bags (450ml/each)

Voltage

230V/50 Hz

Absorption

425 Watt

Gas

CFC-free r404a/R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries.

Control panel and alarms

Microprocessor control panel. Display with 0.1°C resolution. Temperature monitoring detected by independent probes. Real time temperature graph (touch screen version). Digital calibration of probes. Visual and audible alarms of high and low temperature (by means of independent probe), open door, condenser efficiency, damaged probes, power failure with recording of data and alarms (by means of back-up battery), damaged or flat battery. Memory of latest alarms visible on display.

Data logger

To record temperatures and alarms. Download data on USB pen drive.

Back-up battery

Self-powered back-up battery (LGK-2 version) or rechargeable batteries (TP-1 Full touch version)to supply electric power to control panel in order to generate alarms in case of power failure.

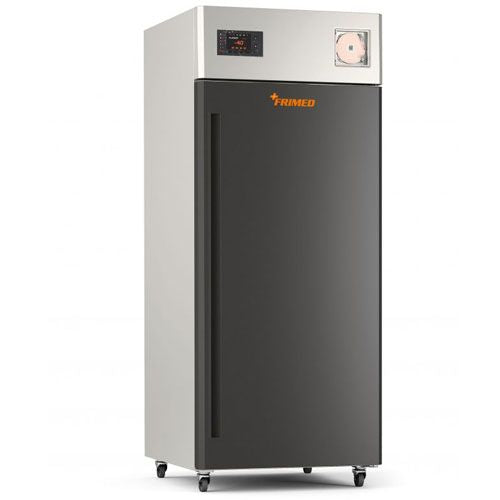

Temperature chart recorder (optional)

Weekly temperature recording system working with 1,5V battery. It is equipped with 52 paper disks and an ink pen.

Standard

  • 6 scotch-brite stainless steel drawers
  • Four one way wheels with stabilizing adjustable feet
  • Door lock with key
  • Power cord with Schüko type plug or British type plug
  • Protection fuses (on power switch and electronic mainboard)
  • RFI filter
  • Password protected power switch and settings
  • Electronic control panel with alarm system
  • Back-up battery
  • Remote contact (dry, volt-free) for alarm
  • Data logger with USB port to download readings and data
  • Memory of latest alarms visible on screen

Optional accessories

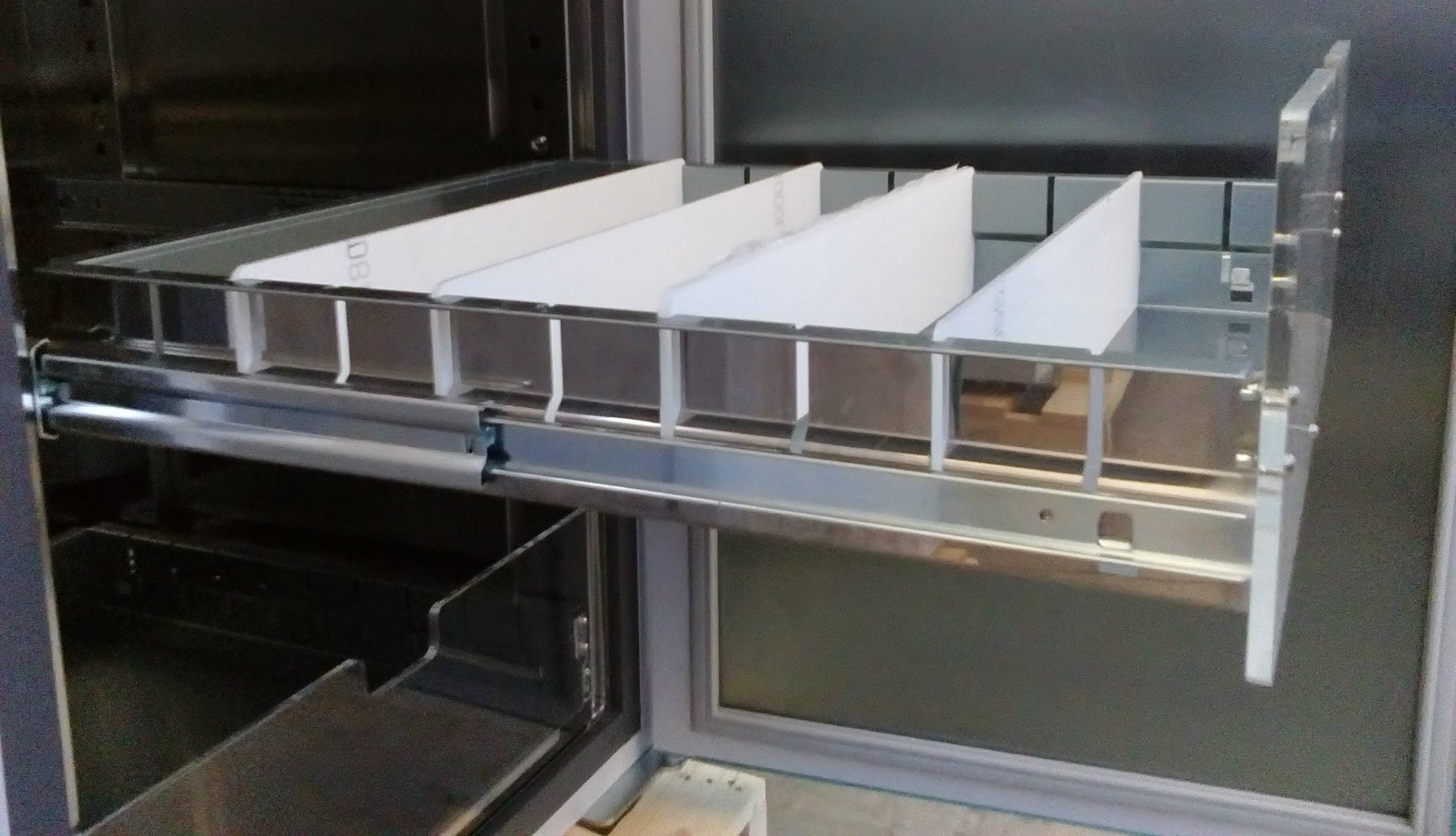

  • Internal plexiglass dividers for drawers
  • Castors with two frontal brakes
  • Weekly temperature chart recorder
  • Test hole (Ø 25 mm) for external user sensor

External dimensions and unit net weight

780x840x1930 (wxdxh-mm)-kg. 204

Dimensions of packaging and shipping weight

  • carton box on pallet: 860x900x2080 (wxdxh-mm)-kg. 216
  • wooden crate (option on request): 1030x940x2210 (wxdxh-mm)-kg. 265

Equipment in accordance with:

Regulation (UE) 2017/745  (MDR)

Technical data

Product category
Plasma freezers –30° 40°C
Air circulation
Static (natural convection) – internal static evaporator
Chamber volume
600 l
Temperature range
-30…-42 °C
Controller
Selectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
Door
self-closing solid door; right hinge std, left on request

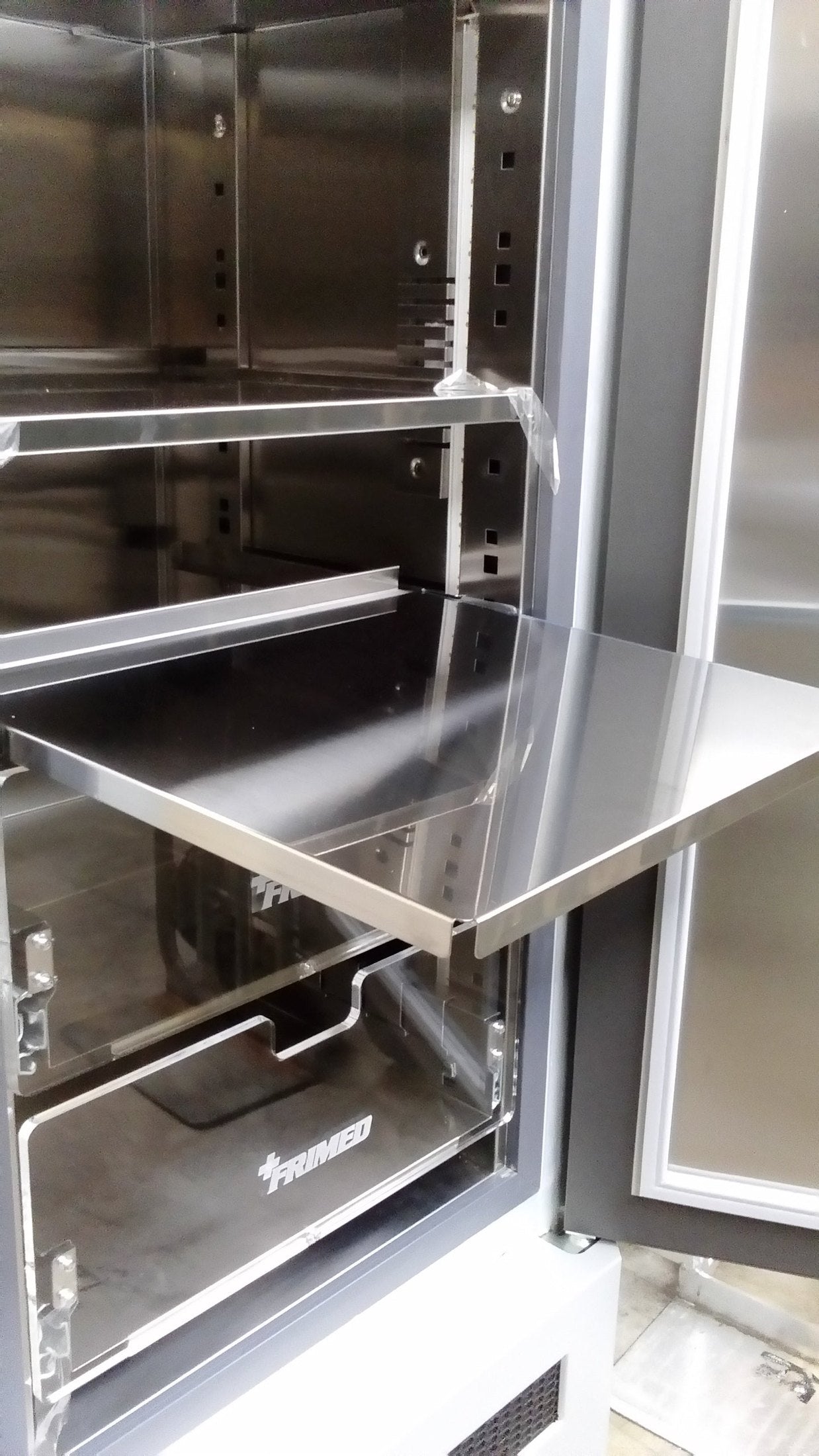

Shelves (standard / max)
6 stainless steel drawers | max 8 shelves / 6 drawers
External dimensions (W × D × H)
840 x 780 x 1930 mm (D x W x H)
External width
780 mm
External depth
840 mm
External height
1930 mm
Internal width
580 mm
Internal depth
670 mm
Internal height
1400 mm
Weight
204 kg
Connections
230 V / 50 Hz
Power consumption
425 W
Noise level
<52 dB
Refrigerant
R290 (CFC/HCFC-free)
Standards
Medical device, Regulation (EU) 2017/745 (MDR)
View full details

Frimed

Plasma freezer CL60B/PF

CL60B/PF Model (-40°C) CL60BPFL225PCS - Digital control panel LGK-2 CL60BPFA425PCS - Full touch control panel TP-1 Structure External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure. Insulation 100 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving. Door Self-closing solid door,...
  • Chamber volume600 l
  • Temperature range-30…-42 °C
  • Warranty2 years
Request a quote
Plasma freezer CL60B/PF

All features

  • Model: Frimed CL60B/PF
  • Temperature range: -30…-42 °C
  • Capacity: 600 l
  • Internal dimensions (W x D x H): 580x670x1400 mm
  • External dimensions (W x D x H): 780x840x1930 mm
  • Air circulation: Static (natural convection)
  • Door: self-closing solid door; right hinge std, left on request
  • Shelves / drawers: 6 stainless steel drawers; max 8 shelves, max 6 drawers
  • Shelf dimensions (W x D): 520x600 mm
  • Drawer dimensions (W x D x H): 488x600x90 mm
  • Insulation: 100 mm high-density PU foam (CFC-free)
  • Defrost: Manual
  • Control: Selectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
  • Alarms / data logging: Visual+audible alarms: high/low temp, door open, condenser efficiency, probe failure, power failure; data logger with USB; remote volt-free alarm contact; back-up battery (self-powered on LGK-2, rechargeable on TP-1)
  • Refrigerant: R290 (CFC/HCFC-free)
  • Electrical: 230 V / 50 Hz, 425 W
  • Noise level: <52 dB
  • Weight: 204 kg
  • Standards: Medical device, Regulation (EU) 2017/745 (MDR)
  • Warranty: 2 years

Specifications

Product categoryPlasma freezers –30° 40°C
Air circulationStatic (natural convection) – internal static evaporator
Chamber volume600 l
Temperature range-30…-42 °C
ControllerSelectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
Doorself-closing solid door; right hinge std, left on request
Shelves (standard / max)6 stainless steel drawers | max 8 shelves / 6 drawers
External dimensions (W × D × H)840 x 780 x 1930 mm (D x W x H)
External width780 mm
External depth840 mm
External height1930 mm
Internal width580 mm
See all specifications
Internal depth670 mm
Internal height1400 mm
Weight204 kg
Connections230 V / 50 Hz
Power consumption425 W
Noise level<52 dB
RefrigerantR290 (CFC/HCFC-free)
StandardsMedical device, Regulation (EU) 2017/745 (MDR)
