Frimed

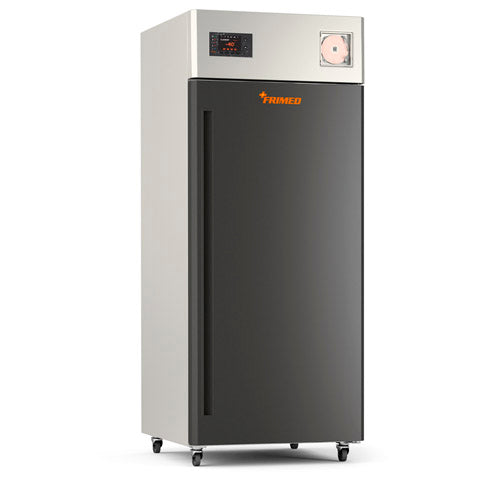

Plasma freezer CL70B/PF

Plasma freezer CL70B/PF

Regular price €6.936,00
Regular price €6.936,00 Sale price €6.936,00
Sale Sold out
Shipping calculated at checkout.

Price excl. VAT (VAT 0%)

SKU:CL70B/PF-LGK2

Controller
Shelf option
Door opening
Quantity
  • Installation and service: Metesa Finland Oy (optional)
  • Invoice or credit card · prices excl. VAT
  • Shipping calculated at checkout
  • Ask an expert: 020 730 7140

Estimated delivery time: 4–6 weeks

Warranty: 2 years

CL70B/PF model (-40°C)

CL70BPFL225PCS - Digital control panel LGK-2

CL70BPFA425PCS - Full touch control panel TP-1

Structure

External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure.

Insulation

100 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving.

Door

Self-closing solid door, with folding magnetic gasket on four sides for perfect closing. Right hand opening or left hand on request

Internal fittings

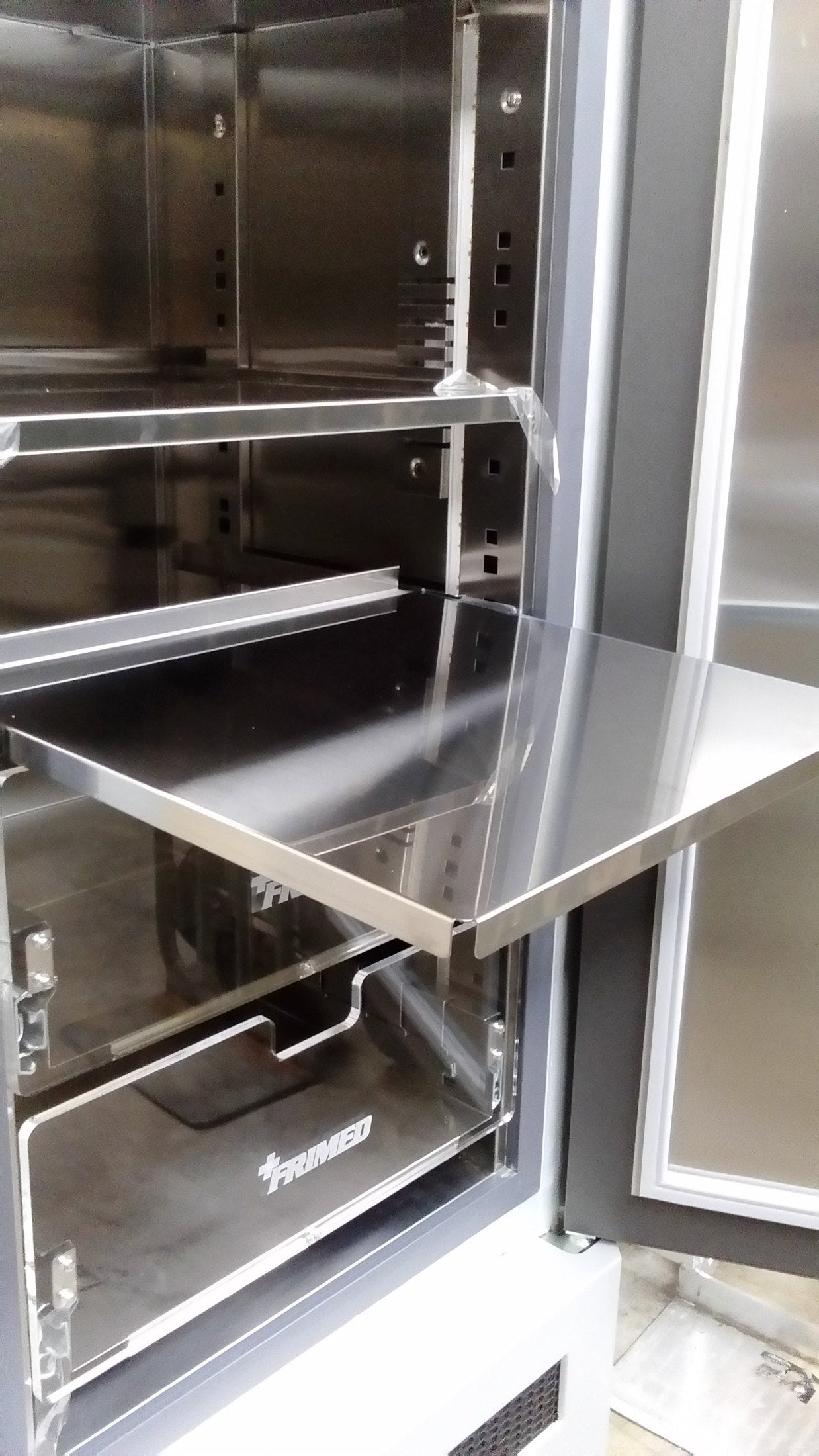

Standard equipped with 6 scotch-brite stainless steel drawers, adjustable in height, with telescopic ball-bearing slides and plexiglass frontal side. Optional plexiglass internal dividers.

Temperature range

Setting between -30°C and -42°C. Factory preset to -40°C. Digital adjustable with an increment of 0.1°C.

Refrigeration system

Completely sealed, silent and highly efficient hermetic compressor and ventilated air condenser (suitable also for tropical countries). Internal static evaporator. CFC/HCFC-free R290 refrigerant gas.

Defrosting

Manual defrosting cycle.

Capacity

714 liters - 330 bags (450ml/each)

Voltage

230V/50Hz

Absorption

425 Watt

Gas

CFC/HCFC-free R290 refrigerant gas

Control panel and alarm

Microprocessor control panel. Display with 0.1°C resolution. Temperature monitoring detected by independent probes. Real time temperature graph (touch screen version). Digital calibration of probes. Visual and audible alarms of high and low temperature (by means of independent probe), open door, condenser efficiency, damaged probes, power failure with recording of data and alarms (by means of back-up battery), damaged or flat battery. Memory of latest alarms visible on display.

Data logger

To record temperatures and alarms. Download data on USB pen drive.

Back-up battery

Self-powered back-up battery (LGK-2 version) or rechargeable batteries (TP-1 Full touch version)to supply electric power to control panel in order to generate alarms in case of power failure.

Temperature chart recorder (optional)

Weekly temperature recording system working with 1,5V battery. It is equipped with 52 paper disks and an ink pen.

Standard

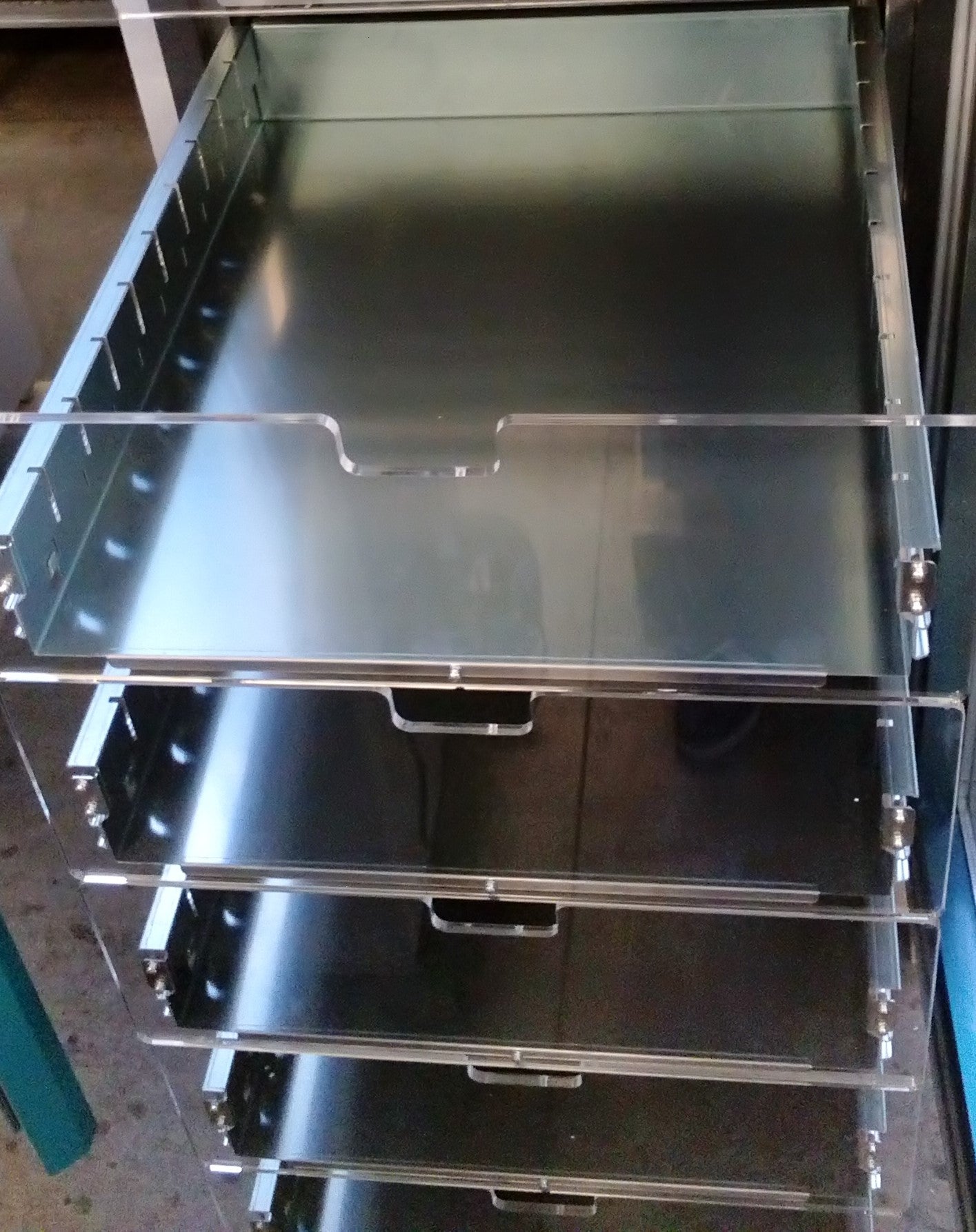

  • 6 scotch-brite stainless steel drawers
  • Four one way wheels with stabilizing adjustable feet
  • Door lock with key
  • Power cord with Schüko type plug or British type plug
  • Protection fuses (on power switch and electronic mainboard)
  • RFI filter
  • Password protected power switch and settings
  • Electronic control panel with alarm system
  • Back-up battery
  • Remote contact (dry, volt-free) for alarm
  • Data logger with USB port to download readings and data
  • Memory of latest alarms visible on screen

Optional accessories

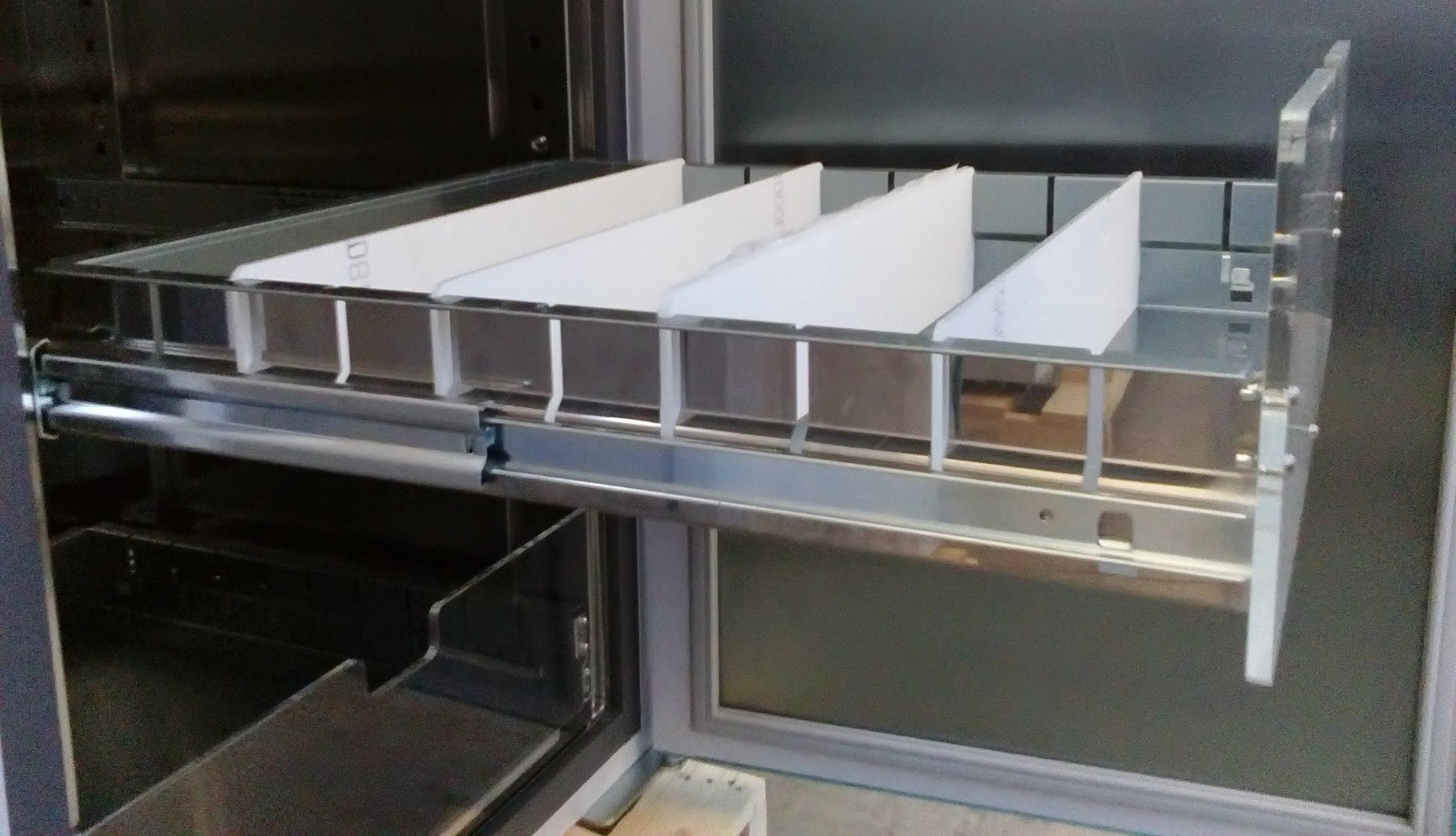

  • Internal plexiglass dividers for drawers
  • Castors with two frontal brakes
  • Weekly temperature chart recorder
  • Test hole (Ø 25 mm) for external user sensor

External dimensions and unit net weight

880x900x2030 (wxdxh-mm)-kg. 204

Dimensions of packaging and shipping weight

  • carton box on pallet: 910x920x2100 (wxdxh-mm)-kg. 216
  • wooden crate (option on request): 1030x940x2210 (wxdxh-mm)-kg. 265

Equipment in accordance with:

Regulation (UE) 2017/745  (MDR)

Technical data

Product category
Plasma freezers –30° 40°C
Air circulation
Static (natural convection) – internal static evaporator
Chamber volume
714 l
Temperature range
-30…-42 °C
Controller
Selectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
Door
self-closing solid door; right hinge std, left on request
Shelves (standard / max)
6 stainless steel drawers
External dimensions (W × D × H)
900 x 880 x 2030 mm (D x W x H)
External width
880 mm
External depth
900 mm
External height
2030 mm
Internal width
680 mm
Internal depth
715 mm
Internal height
1500 mm
Weight
204 kg
Connections
230 V / 50 Hz
Power consumption
425 W
Noise level
<52 dB
Refrigerant
R290 (CFC/HCFC-free)
Standards
Medical device, Regulation (EU) 2017/745 (MDR)
View full details

Frimed

Plasma freezer CL70B/PF

CL70B/PF model (-40°C) CL70BPFL225PCS - Digital control panel LGK-2 CL70BPFA425PCS - Full touch control panel TP-1 Structure External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure. Insulation 100 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving. Door Self-closing solid door,...
  • Chamber volume714 l
  • Temperature range-30…-42 °C
  • Warranty2 years
Request a quote
Plasma freezer CL70B/PF

All features

  • Model: Frimed CL70B/PF
  • Temperature range: -30…-42 °C
  • Capacity: 714 l
  • Internal dimensions (W x D x H): 680x715x1500 mm
  • External dimensions (W x D x H): 880x900x2030 mm
  • Air circulation: Static (natural convection)
  • Door: self-closing solid door; right hinge std, left on request
  • Shelves / drawers: 6 stainless steel drawers
  • Insulation: 100 mm high-density PU foam (CFC-free)
  • Defrost: Manual
  • Control: Selectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
  • Alarms / data logging: Visual+audible alarms: high/low temp, door open, condenser efficiency, probe failure, power failure; data logger with USB; remote volt-free alarm contact; back-up battery (self-powered on LGK-2, rechargeable on TP-1)
  • Refrigerant: R290 (CFC/HCFC-free)
  • Electrical: 230 V / 50 Hz, 425 W
  • Noise level: <52 dB
  • Weight: 204 kg
  • Standards: Medical device, Regulation (EU) 2017/745 (MDR)
  • Warranty: 2 years

Specifications

Product categoryPlasma freezers –30° 40°C
Air circulationStatic (natural convection) – internal static evaporator
Chamber volume714 l
Temperature range-30…-42 °C
ControllerSelectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
Doorself-closing solid door; right hinge std, left on request
Shelves (standard / max)6 stainless steel drawers
External dimensions (W × D × H)900 x 880 x 2030 mm (D x W x H)
External width880 mm
External depth900 mm
External height2030 mm
Internal width680 mm
See all specifications
Internal depth715 mm
Internal height1500 mm
Weight204 kg
Connections230 V / 50 Hz
Power consumption425 W
Noise level<52 dB
RefrigerantR290 (CFC/HCFC-free)
StandardsMedical device, Regulation (EU) 2017/745 (MDR)

Accessories and options

Brochures and downloads

Buying and service

  • Who installs and services the equipment?

    Installation, commissioning, maintenance, calibration and validation are carried out by our service partner Metesa Finland Oy. Service contracts are also available. Services are ordered separately – request a quote.

  • Are delivery and installation included in the price?

    No. Shipping costs are calculated at checkout. Delivery, carrying into place and installation are not included in the product price, but can be ordered as additional services.

  • How can I pay?

    You can pay by invoice or credit card. All prices are shown excluding VAT (VAT 0%).

Ask an expert

We help you choose the right size and configuration.

Need help choosing?

Our experts help you choose the right size and configuration. Delivery, installation and service in Finland.
