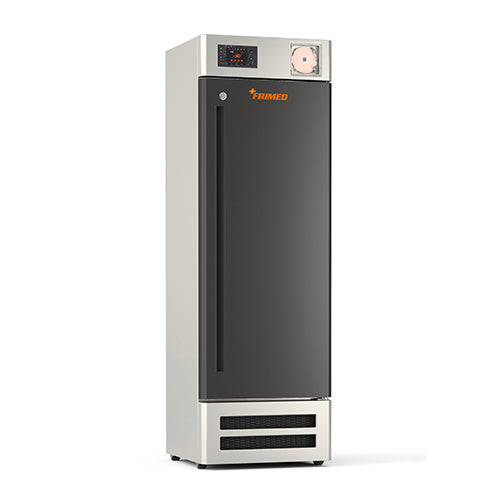

Plasma freezer CV6/PF
CV6/PF Model (-30°C) CV3PFL225PCS - Digital control panel LGK-2 CV3PFA425PCS - Full touch control panel TP-1 Structure External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure. Insulation 80 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving. Door Self-closing solid door,...
- Chamber volume320 l
- Temperature range-25…-32 °C
- Warranty2 years

All features
Specifications
Product categoryPlasma freezers –30° 40°C
Air circulationStatic (natural convection) – internal static evaporator
Chamber volume320 l
Max. load per storage level20 kg per drawer
Temperature range-25…-32 °C
ControllerSelectable: LGK-2 digital control panel, TP-1 4" or TP-1 7" full touch panel; alarm system with alarm memory, data logger with USB download, remote volt-free alarm contact
Doorself-closing solid door; right hinge std, left on request
Shelves (standard / max)6 stainless steel drawers | max 7 shelves / 6 drawers
External dimensions (W × D × H)620 x 640 x 2000 mm (D x W x H)
External width640 mm
External depth620 mm
External height2000 mm
See all specifications
Internal width480 mm
Internal depth465 mm
Internal height1320 mm
Weight136 kg
Connections230 V / 50 Hz
Power consumption416 W
Noise level<45 dB
RefrigerantR290 (CFC/HCFC-free)
StandardsMedical device, Regulation (EU) 2017/745 (MDR)
Accessories and options
Brochures and downloads
Buying and service
Who installs and services the equipment?
Installation, commissioning, maintenance, calibration and validation are carried out by our service partner Metesa Finland Oy. Service contracts are also available. Services are ordered separately – request a quote.
Are delivery and installation included in the price?
No. Shipping costs are calculated at checkout. Delivery, carrying into place and installation are not included in the product price, but can be ordered as additional services.
